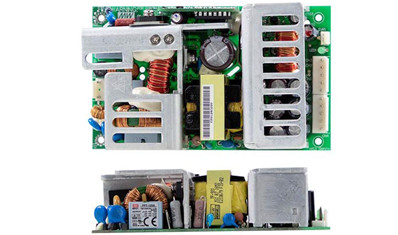

Meanwell PPT-125 Series is 125W Triple Output Switching Power Supply with low profile and compact size. The entire series outstands with PFC Function, Universal AC input/Full range and High power density 6.117W/inch. At the same time, it accepts universal input voltage range of 90~264V AC. Apart from them, the working efficiency could reach up to 78% and operate from -20 ℃through 70 ℃ under free air convection. Additionally, PPT-125 provides the various protections such as Short circuit, Overload and Over voltage. Besides them, they pass 100% full load burn-in test and the extremely low leakage current, this permits to satisfy the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004. Considering its longevity, high efficiency and good quality, Meanwell PPT-125 Series serves as a high price-to-performance power supply solution for various industrial applications in harsh working environments.
Meanwell PPT-125 Series Model Specifications
| Model | PPT-125A | PPT-125B | PPT-125C | PPT-125D | |||||||||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 |
| DC VOLTAGE | 3.3V | 5V | 12V | 5V | 12V | -12V | 5V | 15V | -15V | 5V | 24V | 12V | |
| RATED CURRENT | 10A | 8A | 0.5A | 11.5A | 3A | 0.5A | 11A | 2.5A | 0.5A | 7A | 2.5A | 0.5A | |
| CURRENT RANGE (convection) | 1-10A | 0.8-8A | 0.05-0.5A | 1-11.5A | 0.3-3A | 0.05-0.5A | 1-11A | 0.25-2.5A | 0.05-0.5A | 1-7A | 0.25-2.5A | 0.05-0.5A | |
| CURRENT RANGE (18CFM FAN | 0.4-7A | 0.2-3.2A | 0-0.7A | 0.4-7A | 0.2-3.2A | 0-0.7A | 0.4-7A | 0.2-2.6A | 0-0.7A | 0.5-5A | 0.2-4A | 0.2-1.3A | |
| RATED POWER (convection) | 79W | 99.5W | 100W | 101W | |||||||||
| RATED POWER (18CFM FAN) | 98.81 | 124.46W | 125.15W | 126.43W | |||||||||
| RIPPLE & NOISE (max.) | 100mVp-p | 100mVp-p | 120mVp-p | 100mVp-p | 120mVp-p | 120mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | 100mVp-p | 240mVp-p | 120mVp-p | |
| VOLTAGE ADJ. RANGE | CH1:3.13 ~ 3.46V | CH1:4.75 ~ 5.25V | CH1:4.75 ~ 5.25V | CH1:4.75 ~ 5.25V | |||||||||
| VOLTAGE TOL ERANCE | ±3.0% | ±5.0% | ±6.0% | ±3.0% | ±5.0% | ±6.0% | ±3.0% | ±5.0% | ±6.0% | ±3.0% | ±5.0% | ±6.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGUL .ATION | ±3.0% | ±3.0% | ±5.0% | ±3.0% | ±3.0% | ±5.0% | ±3.0% | ±3.0% | ±5.0% | ±3.0% | ±3.0% | ±5.0% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load | ||||||||||||
| HOLD UP TIME (Typ.) | 24ms/230VAC 24ms/115VAC at full load | ||||||||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||||||||||
| FREQUENCY RANGE | 47~63Hz | ||||||||||||
| EFFICIENCY (Typ.) | 75.00% | 78.00% | 78.00% | 78.00% | |||||||||
| AC CURRENT (Typ.) | 1.7A/115VAC 0.75A/230VAC | ||||||||||||
| INRUSH CURRENT(Typ.) | COLD START 24A/230VAC | ||||||||||||
| LEAKAGE CURRENT | <2mA / 240VAC | ||||||||||||
| PROTECTION | OVERL OAD | 130 ~ 160% rated output power | |||||||||||
| Protection type : Fold back current limiting, recovers automatically after fault condition is removed | |||||||||||||
| OVER VOLTAGE | CH1:3.6 ~ 4.45V | CH1:5.75 ~ 6.75V | CH1:5.75 ~ 6.75V | CH1:5.75 ~ 6.75V | |||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃(Refer to "Derating Curve") | |||||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||||||||||
| TEMP. COEFFICIENT | ±0.05%/℃(0 ~ 50℃) on +5V output | ||||||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1 , EAC TP TC 004 approved | |||||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||||||||||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 | ||||||||||||
| OTHERS | MTBF | 94.7Khrs min. MIL-HDBK-217F (25℃) | |||||||||||
| DIMENSION | 127*76.2*34.6mm (L*W*H) | ||||||||||||
| PACKING | 0.37Kg; 36pcs/14.3Kg/0.96CUFT | ||||||||||||
Meanwell PPT-125 Series Features
l Universal AC input/ Full range
l Built-in active PFC function
l Protections: Short circuit/Overload/Over voltage
l PWM control and regulated
l High power density 6.117W/inch
l LED indicator for power on
l 100% full load burn-in test
l 125W with 18CFM FAN
l 5"x3" compact size
l 3 years warranty

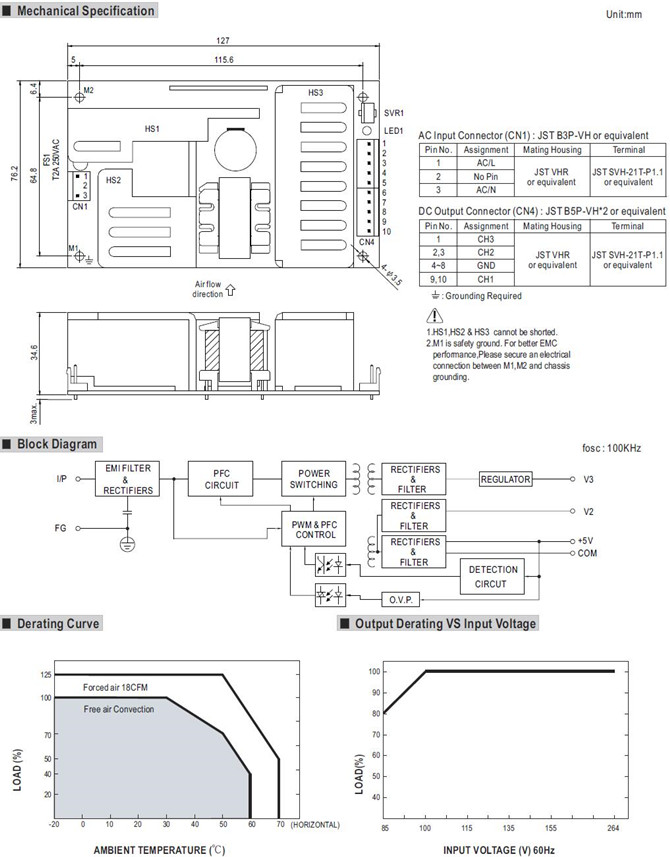

Meanwell PPT-125 Series Mechanical Diagram
