PLP-60-12

$14.05

Meanwell 60W Single Output LED Power Supply with 12V9-12V5A0-5A60W4.5Vp-p3.75-5A±10%±3.0%±5.0

- +
Availability:In stock
SKU Meanwell PLP-60-12
Brand Meanwell
Details

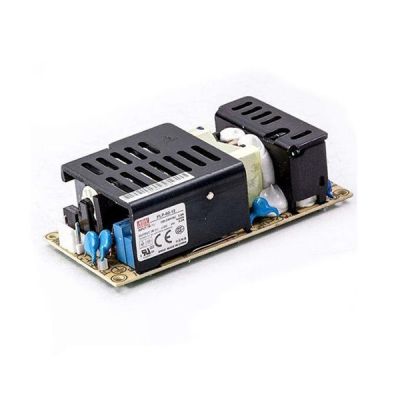

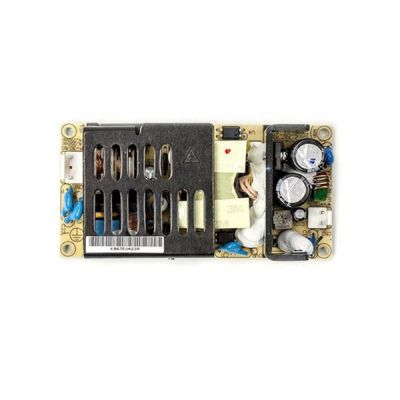

Meanwell PLP-60-12 is 60W Single Output LED Power Supply with 12V9-12V5A0-5A60W4.5Vp-p3.75-5A. The item has a wide input range of 90~264VAC with built-in active power factor correction (PFC) function. It highlights PF>0.9 and EU EN61000-3-2 for harmonic current requirements of Class C level (in output load > 75%), meeting the request of general lighting related applications. PLP-60-12 adopts single-stage PFC architecture in the circuit design to achieve high PF value in the most economical way. As the efficiency reaches high up to 89%, it uses only natural air cooling to work at -30℃~+60℃ at full load, and the max temperature 70 °C. In addition, the output current can be adjusted to 75~100% of the rated current range by the built-in variable resistor, which greatly increases the flexibility of the system design. The item is also supplied with various protections such as short circuit, overload, overvoltage. Thanks to its long lifetime, high reliability, and excellent quality, Meanwell PLP-60-12 is ideal for applications that do not require power enclosure or built into LED lighting systems like LED lighting, LED electronic signage, LED decorative power supply, LED stage lights, etc.

Meanwell PLP-60-12 Price and specs 60W AC/DC Single Output LED Power Supply with Built-in active Class 2 PFC YCICT

Meanwell PLP-60-12 Specifications

Model PLP-60-12
OUTPUT DC VOLTAGE 12V
CONSTANT CURRENT REGION 9-12V
RATED CURRENT 5A
CURRENT RANGE 0-5A
RATED POWER 60W
RIPPLE & NOISE (max.) 4.5Vp-p
CURRENT ADJ. RANGE 3.75-5A
VOLTAGE TOLERANCE ±10%
LINE REGULATION ±3.0%
LOAD REGULATION ±5.0
SETUP TIME 500ms / 230VAC 1200ms / 115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>=0.9 at 75 ~ 100% load, 115VAC / 230VAC
TOTAL HARMONIC DISTORTION  THD< 20% when output loading>=75% at 115VAC/230VAC input
EFFICIENCY (Typ.) 84.00%
AC CURRENT (Typ.) 0.8A/115VAC 0.4A/230VAC
INRUSH CURRENT(Typ.) COLD START 35A(twidth=55μ s measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 32units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 240VAC
PROTECTION OVER CURRENT 100 ~ 110%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 15-18V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS GB19510.1,GB19510.14,UL8750, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, CSA C22.2 No. 250.0-08(except for 48V), EAC TP TC 004 approved ; design refer to UL60950-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to GB17625,GB17743, BS EN/EN55015, BS EN/EN61000-3-2 Class C(>=75% load); BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035,BS EN/EN61547, light industry level, EAC TP TC 020
Others MTBF 5065.8K hrs min. Telcordia SR-332 (Bellcore) ; 583.3K hrs min. MIL-HDBK-217F (25)
DIMENSION 101.6*50.8*29.6mm (L*W*H)
PACKING 0.16Kg; 96pcs/16.4Kg/0.89CUFT

Meanwell PLP-60-12 Features

l  2 years warranty

l  High reliability

l  Universal AC input/ Full range

l  Protections: Short circuit/Over current/Over voltage

l  Built-in active PFC function

l  Cooling by free air convection

l  Class 2 power unit

l  Output current level adjustable

l  100% full load burn-in test

l  Suitable for built-in applications of LED lighting

Meanwell PLP-60-12 Price and specs 60W AC/DC Single Output LED Power Supply Built-in active PFC Class 2 YCICT

Meanwell PLP-60-12 Mechanical Diagram

Meanwell PLP-60-12 Price and specs 60W AC/DC Single Output LED Power Supply with Built-in active PFC Class 2 YCICT

Meanwell PLP-60-12 Price and datasheet 60W AC/DC Single Output LED Power Supply with Built-in active PFC Class 2 YCICT
