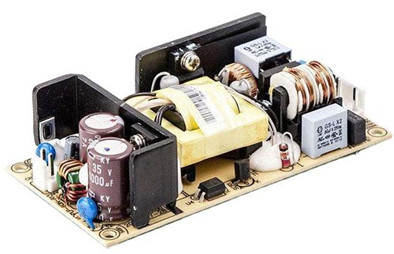

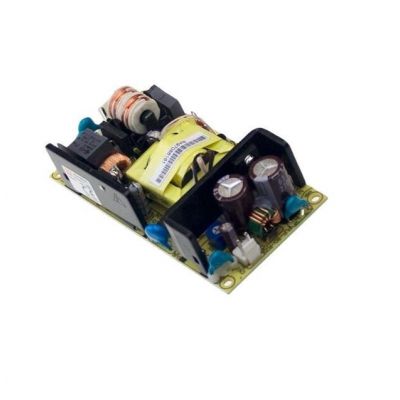

PLP-30-24
13.18
Details
Meanwell PLP-30-24 is 30W rated output LED power supply with 24V18-24V1.3A0-1.3A31.2W2.4Vp-p0.975-1.3A. The model has a wide input range of 90~264VAC, and built-in active power factor correction (PFC) function. At the same time, it offers PF>0.9 and EU EN61000-3-2 for harmonic current requirements of Class C level (in output load > 75%), meeting the demands of general lighting related applications. PLP-30-24 adopts single-stage PFC architecture in the circuit design to achieve high PF value in the most economical way. As the efficiency reaches high up to 89%, it uses only natural air cooling to work at -30℃~+60℃ at full load, and the maximum temperature 70 °C. The output current could be adjusted to 75~100% of the rated current range by the built-in variable resistor, which greatly increases the flexibility of the system design. What’s more, the product is equipped with various protections such as short circuit, overload, overvoltage, etc. Thanks to its long lifetime, high reliability, and excellent quality, Meanwell PLP-30-24 is ideal for applications that do not require power enclosure or built into LED lighting systems like LED lighting, LED electronic signage, LED decorative power supply, LED stage lights, etc.
Meanwell PLP-30-24 Specifications
| Model | PLP-30-24 | |
| OUTPUT | DC VOLTAGE | 24V |
| CONSTANT CURRENT REGION | 18-24V | |
| RATED CURRENT | 1.3A | |
| CURRENT RANGE | 0-1.3A | |
| RATED POWER | 31.2W | |
| RIPPLE & NOISE (max.) | 2.4Vp-p | |
| CURRENT ADJ. RANGE | 0.975-1.3A | |
| VOLTAGE TOLERANCE | ±10% | |
| LINE REGULATION | ±3.0% | |
| LOAD REGULATION | ±5.0 | |
| SETUP TIME | 500ms / 230VAC 1200ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.9 at 75 ~ 100% load , 115VAC / 230VAC | |
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=75% at 115VAC/230VAC input | |
| EFFICIENCY (Typ.) | 85.50% | |
| AC CURRENT (Typ.) | 0.4A/115VAC 0.2A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 25A (twidth=45μ s measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 64units (circuit breaker of type B) / 64 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 240VAC | |
| PROTECTION | OVER CURRENT | 100 ~ 110% |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 28-33V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | GB19510.1,GB19510.14,UL8750, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, CSA C22.2 No. 250.0-08(except for 48V), EAC TP TC 004 approved ; design refer to UL60950-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to GB17625,GB17743,BS EN/EN55015, BS EN/EN61000-3-2 Class C (>=75% load); BS EN/EN61000-3-3,EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035,BS EN/EN61547, light industry level, EAC TP TC 020 | |
| Others | MTBF | 5126.3K hrs min. Telcordia SR-332 (Bellcore) ; 580.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 101.6*50.8*26.6mm (L*W*H) | |
| PACKING | 0.12Kg; 108pcs/13Kg/0.89CUFT | |
Meanwell PLP-30-24 Features
l High reliability
l 2 years warranty
l Built-in active PFC function
l Cooling by free air convection
l Class 2 power unit
l Output current level adjustable
l 100% full load burn-in test
l Universal AC input/Full range
l Suitable for built-in applications of LED lighting
l Protections: Short circuit/Over current/Over voltage
Meanwell PLP-30-24 Mechanical Diagram
