PLN-60-48
25.82
Details

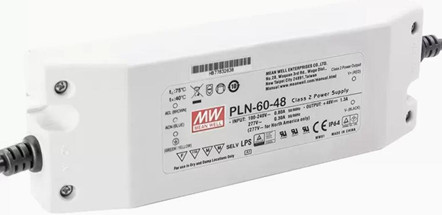

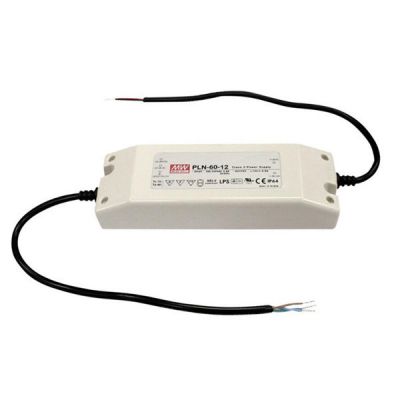

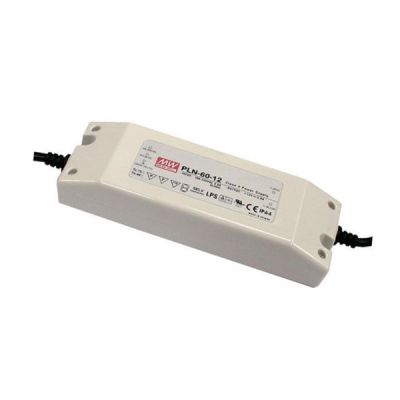

Meanwell PLN-60-48 is 60W Single Output LED Power Supply with 48V33.6-48V1.3A0-1.3A62.4W4.6Vp-p43.6-51.8V. The product highlights power correction and UL1310 class 2 low power energy regulations. Its output power supply is less than 100VA or 5A under any working condition, greatly reducing the risk of electric shock that technicians may encounter when building or maintaining LED lighting/decoration systems. What’s more, IP64 high dustproof and waterproof design can protect the internal electronic components from the threat of dust and moisture, which can meet the requirements of outdoor or indoor high humidity environment. The efficiency could reach high up to 89%, so it can only use natural air cooling in fully coated plastic shell to work between -30°C ~+50°C. In addition, built-in standard functions include short-circuit protection, overload protection, over-voltage protection, and over-temperature protection. The input and output is provided with 18 AWG power cord for flexible assembly in various systems or situations. The output voltage and output current can also be adjusted by the user to make LED output the best brightness. Meanwell PLN-60-48 is ideal for small LED signage, backlight panels, LED decorative light sources, indoor and outdoor LED lighting power supplies, LED stage lights and theater lighting, etc.
Meanwell PLN-60-48 Specifications
| Model | PLN-60-48 | |
| OUTPUT | DC VOLTAGE | 48V |
| CONSTANT CURRENT REGION | 33.6-48V | |
| RATED CURRENT | 1.3A | |
| CURRENT RANGE | 0-1.3A | |
| RATED POWER | 62.4W | |
| RIPPLE & NOISE (max.) | 4.6Vp-p | |
| VOLTAGE ADJ. RANGE | 43.6-51.8V | |
| Can be adjusted by internal potentiometer SVR1 | ||
| CURRENT ADJ. RANGE | 3% ~ -25%. Can be adjusted by internal potentiometer SVR2 | |
| VOLTAGE TOLERANCE | ±10% | |
| LINE REGULATION | ±3.0% | |
| LOAD REGULATION | ±5.0% | |
| SETUP TIME | 500ms / 230VAC 3000ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 295VAC 127 ~ 417VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.92/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=75% at 115VAC/230VAC input and output loading>=80% at 277VAC input | |
| EFFICIENCY (Typ.) | 89.00% | |
| AC CURRENT (Typ.) | 0.8A/115VAC 0.4A/230VAC 0.3A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 35A(twidth=45μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 240VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 110% |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 54-60V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL879, UL1310, UL8750, CSA C22.2 No. 207-M89(except for 48V), TUV BS EN/EN61347-1, BS EN/EN61347-2-13 independent, CAN/CSA C22.2 No. 223-M91 (except for 48V), CSA C22.2 No. 250.0-08(except for 48V), EAC TP TC 004, GB19510.1,GB19510.14,IP64 approved ; design refer to UL60950-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (>=75% load) ; BS EN/EN61000-3-3; GB17743 and GB17625.1,EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020 | |
| Others | MTBF | 3445.2K hrs min. Telcordia SR-332 (Bellcore) ; 497.9Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 181*61.5*35mm (L*W*H) | |
| PACKING | 0.5Kg; 24pcs/13Kg/0.87CUFT | |
Meanwell PLN-60-48 Features
l Pass LPS
l High reliability
l High efficiency 89%
l 2 years warranty
l Class 2 power unit
l 100% full load burn-in test
l Built-in active PFC function
l Cooling by free air convection
l Suitable for dry/damp locations
l Fully isolated plastic case with IP64 level
l Universal AC input/ Full range (up to 295VAC)
l Suitable for LED lighting and moving sign applications
l Compliance to worldwide safety regulations for lighting
l Protections: Short circuit/Over current/Over voltage/Over temperature
l Built-in constant current limiting circuit with adjustable OCP level
Meanwell PLN-60-48 Mechanical Diagram
