PLN-30-27
17.73
Details

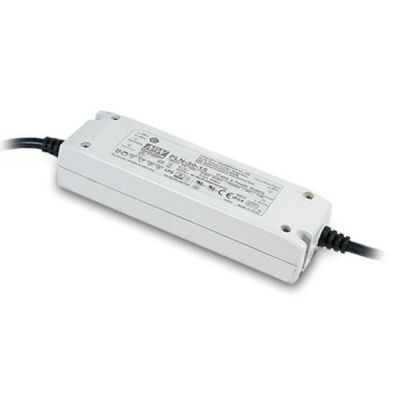

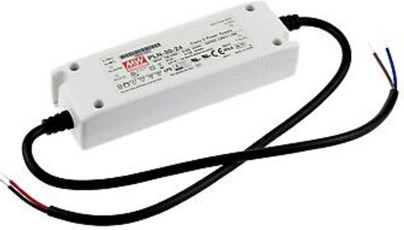

Meanwell PLN-30-27 is 30W Single Output LED Power Supply with 27V18.9-27V1.12A0-1.12A30.24W2.3Vp-p. The model highlights power correction function, and meets with UL1310 class 2 low power energy regulations and outputs less than 100VA or 5A in any condition, greatly reducing the risk of electric shock. At the same time, IP64 high dustproof and waterproof design can protect the internal electronic components from the threat of dust and moisture, which fits the application requirements of outdoor or indoor high humidity environment. Addtiionally, PLN-30-27 adopts single-stage PFC architecture in the circuit design to achieve the requirements of high PF value and CLASS C harmonic level in the most economical way. Moreover, the efficiency could reach high up to 86%, so that it can only use natural air cooling to work between -30℃~+50℃ meeting the relevant requirements of indoor and outdoor LED drivers globally. The input and output is also equipped with 18 AWG power cord for flexible assembly in various systems or working situations. The output voltage and output current can be adjusted by the user to make LED output the best brightness.Because of its longevity, high reliability, and excellent quality, Meanwell PLN-30-27 is ideal for small LED signage, backlight panels, LED decorative light sources, LED stage lights and theater lighting, etc.
Meanwell PLN-30-27 Specifications
| Model | PLN-30-27 | |
| OUTPUT | DC VOLTAGE | 27V |
| CONSTANT CURRENT REGION | 18.9-27V | |
| RATED CURRENT | 1.12A | |
| CURRENT RANGE | 0-1.12A | |
| RATED POWER | 30.24W | |
| RIPPLE & NOISE (max.) | 2.3Vp-p | |
| VOLTAGE TOLERANCE | -5% ~ 10%. Can be adjusted by internal potentiometer SVR1 | |
| CURRENT ADJ. RANGE | 3% ~ -25%. Can be adjusted by internal potentiometer SVR2 | |
| VOLTAGE TOLERANCE | ±10% | |
| LINE REGULATION | ±3.0% | |
| LOAD REGULATION | ±5.0% | |
| SETUP TIME | 500ms / 230VAC 3000ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 295VAC 127 ~ 417VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.95/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=75% at 115VAC/230VAC input and output loading>=80% at 277VAC input | |
| EFFICIENCY (Typ.) | 84.50% | |
| AC CURRENT (Typ.) | 0.4A/115VAC 0.2A/230VAC 0.15A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 35A(twidth=25μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 64 units (circuit breaker of type B) / 64 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.5mA / 240VAC | |
| PROTECTION | OVER CURRENT | 100 ~ 110% |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed. | |
| OVER VOLTAGE | 31-35V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.06%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL879, UL1310, CSA C22.2 No. 207-M89(except for 48V), TUV BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.1,GB19510.14, EAC TP TC 004,IP64 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (pin>=25W), Class D (>70% load) ; BS EN/EN61000-3-3; GB17743 and GB17625.1,EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61547, light industry level, criteria B;EAC TP TC 020 | |
| Others | MTBF | 4296.9K hrs min. Telcordia SR-332 (Bellcore) ; 621.4Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 145*47*30mm (L*W*H) | |
| PACKING | 0.22Kg; 60pcs/14.2Kg/1.25CUFT | |
Meanwell PLN-30-27 Features
l Pass LPS
l 2 years warranty
l ClassⅡpower unit, no FG
l Class 2 power unit
l 100% full load burn-in test
l High reliability
l Fully isolated plastic case with IP64 level
l Built-in active PFC function
l Cooling by free air convection
l Suitable for LED lighting and moving sign applications
l Compliance to worldwide safety regulations for lighting
l Universal AC input/Full range (up to 295VAC)
l Protections: Short circuit/Over current/Over voltage/Over temperature
l Built-in constant current limiting circuit with adjustable OCP level
Meanwell PLN-30-27 Mechanical Diagram
