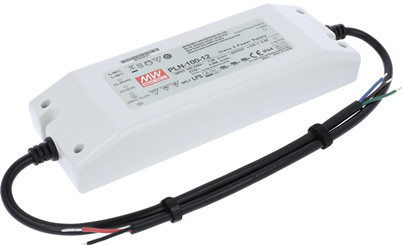

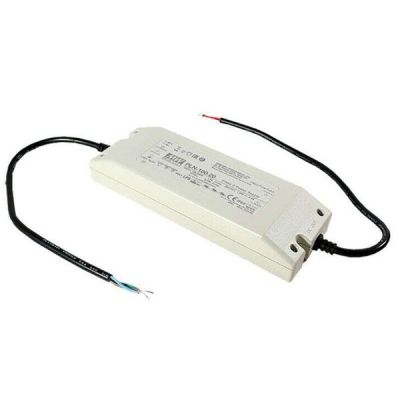

PLN-100
25.45
Details
Meanwell PLN-100 Series is 100W Single Output LED Power Supply with power correction and UL1310 class 2 low power energy regulations. The output power supply is less than 100VA or 5A under any working condition, greatly reducing the risk of electric shock that technicians may encounter when building or maintaining LED lighting/decoration systems. Additionally, IP64 high dustproof and waterproof design can protect the internal electronic components from the threat of dust and moisture, which can meet the application requirements of outdoor or indoor high humidity environment. What’s more, the efficiency could reach high up to 88.5%, so it is able to operate between -30°C ~+50°C only under natural air cooling in the fully coated plastic shell. PLN-100 is also equipped with various protections such as short-circuit, overload, over-voltage, and over-temperature. The input and output is supplied with 18 AWG power cord for flexible assembly in various systems or working situations. The output voltage and output current can also be adjusted by the user to make LED output the best brightness. Considering its longevity, high efficiency and excellent reliability, Meanwell PLN-100 Series is ideal for small LED signage, backlight panels, LED decorative light sources, indoor and outdoor LED lighting power supplies, LED stage lights and theater lighting, etc.
Meanwell PLN-100 Series Model Specifications
| Model | PLN-100-12 | PLN-100-15 | PLN-100-20 | PLN-100-24 | PLN-100-27 | PLN-100-36 | PLN-100-48 | |
| OUTPUT | DC VOLTAGE | 12V | 15V | 20V | 24V | 27V | 36V | 48V |
| CONSTANT CURRENT REGION | 9-12V | 11.25-15V | 15-20V | 18-24V | 20.25-27V | 27-36V | 36-48V | |
| RATED CURRENT | 5A | 5A | 4.8A | 4A | 3.55A | 2.65A | 2A | |
| RATED POWER | 60W | 75W | 96W | 96W | 95.85W | 95.4W | 96W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE (SVR1) | 10.2-12V | 12.8-15V | 17-20V | 20.4-24V | 23-27V | 30.6-36V | 40.8-48V | |
| CURRENT ADJ. RANGE(SVR2) | 3.75-5A | 3.75-5A | 3.6-4.8A | 3-4A | 2.6-3.55A | 2-2.65A | 1.5-2A | |
| VOLTAGE TOLERANCE | ±3.0% | ±3.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±1.0% | |||||||
| LOAD REGULATION | ±2.0% | |||||||
| HOLD UP TIME (Typ.) | 60ms/230VAC 16ms/115VAC at full load | |||||||
| SETUP TIME | 500ms, 80ms/230VAC 1200ms, 80ms/115VAC at full load | |||||||
| INPUT | VOLTAGE RANGE | 90 ~ 295VAC 127 ~ 417VDC | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||

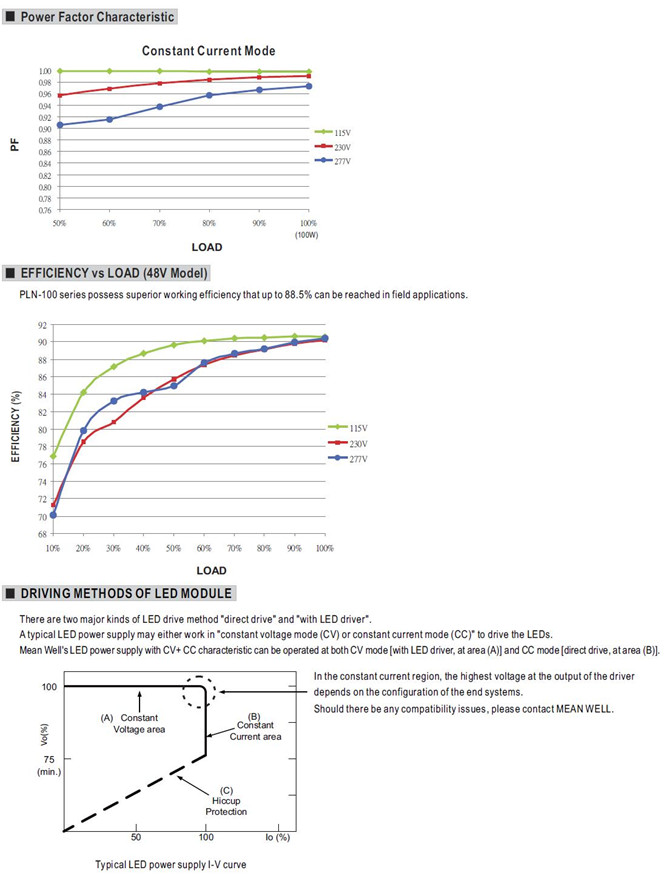

| POWER FACTOR (Typ.) | PF>0.95/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |||||||
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=75% at 115VAC/230VAC input and output loading>=75% at 277VAC input | |||||||
| EFFICIENCY (Typ.) | 83.00% | 87.00% | 88.50% | 88.50% | 88.00% | 88.00% | 88.50% | |
| AC CURRENT (Typ.) | 12V:0.8A/115VAC 0.4A/230VAC 0.3A/277VAC 15V:0.9A/115VAC 0.45A/230VAC 0.35A/277VAC 20V ~ 48V:1.1A/115VAC 0.55A/230VAC 0.45A/277VAC |
|||||||
| INRUSH CURRENT(Typ.) | COLD START 40A(twidth=1030μs measured at 50% Ipeak) at 230VAC | |||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC | |||||||
| LEAKAGE CURRENT | <0.75mA / 240VAC | |||||||
| PROTECTION | OVER CURRENT | 95 ~ 102% | ||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 13-16V | 16.5-20V | 22-27V | 27-34V | 30-36V | 39-48V | 52-64V | |
| Protection type : Shut down and latch off o/p voltage, re-power on to recover | ||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||||
| ENVIRONMENT | WORKING TEMP | -30 ~ +50℃ (Refer to "Derating Curve") | ||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||
| SAFETY&EMC | SAFETY STANDARDS | UL879, UL1310, UL8750, CSA C22.2 No. 207-M89, TUV BS EN/EN61347-1, BS EN/EN61347-2-13 independent, CAN/CSA C22.2 No.223-M91(except for 48V), CAN/CSA C22.2 No. 250.13-12, EAC TP TC 004, GB19510.1,GB19510.14,IP64 approved ; design refer to UL60950 | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (>75% load) ; BS EN/EN61000-3-3;GB17743 and GB17625.1,EAC TP TC 020 | |||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55035, light industry level (surge 4KV), EAC TP TC 020 | |||||||
| Others | MTBF | 2689.6K hrs min. Telcordia SR-332 (Bellcore) ; 303.2Khrs min. MIL-HDBK-217F (25℃) | ||||||
| DIMENSION | 200*70.5*35mm (L*W*H) | |||||||
| PACKING | 0.52Kg; 20pcs/12.5Kg/0.9CUFT | |||||||
Meanwell PLN-100 Series Features
l Universal AC input 1 Full range (up to 295VAC)
l High efficiency up to 88.5%
l Protections: Short circuit/Over current/Over voltage/Over temperature
l Cooling by free air convection
l Built-in active PFC function
l Fully isolated plastic case with IP64 level
l Pass LPS
l Class 2 power unit
l 100% full load burn-in test
l High reliability
l Suitable for LED lighting and moving sign applications
l Suitable for dry/damp locations
l Compliance to worldwide safety regulations for lighting
l 2 years warranty

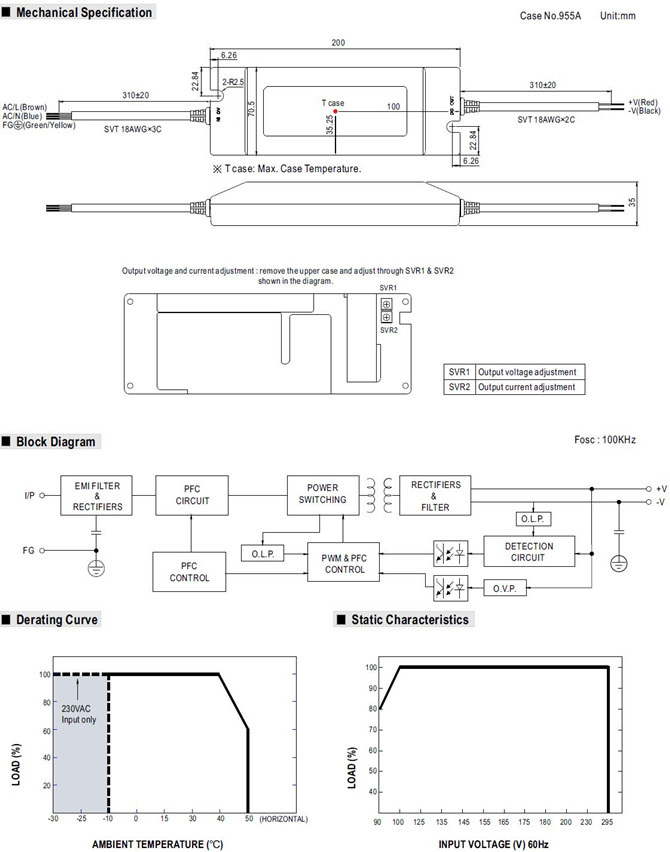

Meanwell PLN-100 Series Mechanical Diagram
