PLM-25□-700
14.82
Details

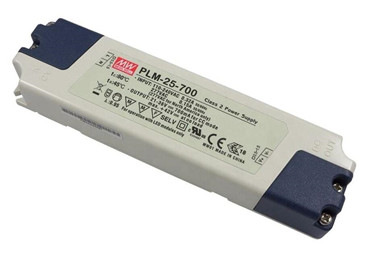

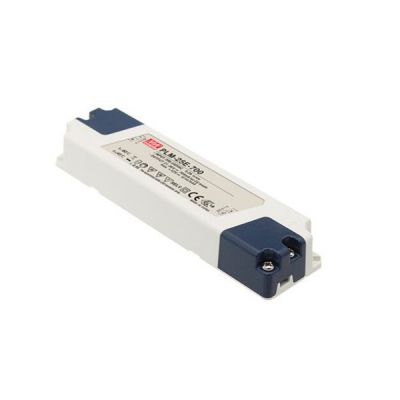

Meanwell PLM-25-700 is 25W economical AC/DC LED power supply with 21-36V0.7A42V25.2W3.6Vp-p5.4Vp-p±5.0%. The model outstands high Power Factor value greater than 0.9 under built-in active PFC design. With low no load power consumption below 0.5W, and setup time less than 500ms, PLM-25-700 complies with the ErP regulation required by European Union for lighting fixtures. Meanwhile, PLM-25-700 is class Ⅱ (without FG pin) power unit housed with UL 94V-0 rated flame retardant plastic case. The I/O terminals are designed with screw-less clamp style terminal block that greatly simplifies the wiring installation. Two types with different input voltage range are available: PLM-25-700, which operates from 110~295VAC, and PLM-25E-700, which operates from 180~295VAC. These two are both constant current output design, offering the model with the current of 700mA, respectively. In light of its long lifetime, high reliability and low price, Meanwell PLM-25-700 is ideally suitable for LED indoor lighting or decorative light source related applications.
Meanwell PLM-25-700 Encoding
| PLM | Series Name |
| 25 | Output Wattage |
| E | Blank: AC input range 110-295VAC |
| E: AC input range 180-295VAC | |
| 700 | Output current |
Meanwell PLM-25-700 Specifications
| Model | PLM-25□-700 | |
| OUTPUT | CONSTANT CURRENT REGION | 21-36V |
| RATED CURRENT | 0.7A | |
| NO LOAD OUTPUT VOLTAGE (max.) | 42V | |
| RATED POWER | 25.2W | |
| RIPPLE & NOISE (max.) Blank type | 3.6Vp-p | |
| RIPPLE & NOISE (max.) E type | 5.4Vp-p | |
| CURRENT ACCURACY | ±5.0% | |
| SETUP TIME | Blank type: 500ms / 115VAC, 230VAC at full load; E type: 500ms / 230VAC at full load | |
| INPUT | VOLTAGE RANGE | Blank type: 110 ~ 295VAC 156 ~ 417VDC; E type: 180 ~ 295VAC 254~ 417VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR Blank type | PF>=0.97/115VAC,PF>=0.95/230VAC,PF>0.9/277VAC(at full load)(Please refer to "Power Factor Characteristic" curve | |
| POWER FACTOR E type | PF>=0.95/230VAC,PF>=0.9/277VAC (at full load)(Please refer to "Power Factor Characteristic" curve) | |
| TOTAL HARMONIC DISTORTION Blank type | THD< 20% when output loading>=60% at 115VAC/230VAC input and output loading>=75% at 277VAC input | |
| TOTAL HARMONIC DISTORTION E type | THD< 20% when output loading>=60% at 230VAC input and output loading>=75% at 277VAC input | |
| EFFICIENCY (Typ.) Blank type | 86.00% | |
| EFFICIENCY (Typ.) E type | 85.00% | |
| AC CURRENT | Blank type: 0.3A/115VAC 0.15A/230VAC 0.12A/277VAC; E type: 0.15A/230VAC 0.12A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 15A(twidth=50μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 80 units (circuit breaker of type B) / 80 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | 0.25mA / 240VAC | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed |
| ENVIRONMENT | WORKING TEMP | -30 ~ +45℃ |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.06%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.13-12(for Blank type only); ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384,GB19510.14,GB19510.1(for E type only),EAC TP TC 004, IP30 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms/500VDC / 25℃/ 70%RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, GB17743, GB17625.1(for E type only),BS EN/EN61000-3-2 Class C(>=60% load); BS EN/EN61000-3-3,EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61547, light industry level, criteria B(surge 2KV),EAC TP TC 020 |
|
| Others | MTBF | 7905.4K hrs min. Telcordia SR-332 (Bellcore) ; 608.9Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 145*38*22mm (L*W*H) | |
| PACKING | 0.126Kg;60pcs/8.6 Kg/0.48CUFT | |
Meanwell PLM-25-700 Features
l 2 years warranty
l High reliability, low cost
l Built-in active PFC function
l Constant current design
l Protections: Short circuit
l Cooling by free air convection
l Fully isolated plastic case
l ClassⅡpower unit, no FG
l Class 2 power unit (for PLM-25-500/700/1 050)
l No load power consumption <0. 5W
l 230VAC only or Full range (up to 295VAC) models available
Meanwell PLM-25-700 Applications
l Indoor LED lighting
l LED office lighting
l LED commercial lighting
l LED decorative lighting
Meanwell PLM-25-700 Mechanical Diagram
