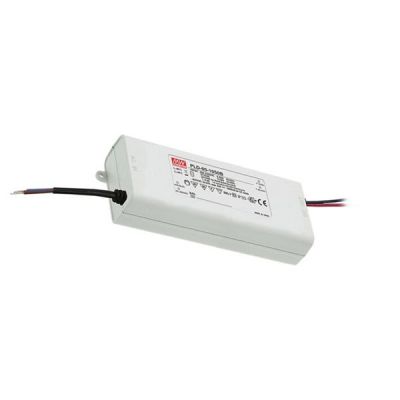

Meanwell PLD-60 Series is 60W Single Output LED Power Supply. The entire series accepts 180~295VAC voltage input with 500~2400mA single constant current output. With leading edge or trailing edge TRIAC dimmers, the brightness of LED lamps can be adjusted to satisfy the needs of AC dimming applications in LED lighting market. When working at full load, the highest conversion efficiency reaches 88%, PLD-60 could operate at -30°C ~50°C under natural air cooling. In addition, the series is designed with single-stage PFC line in the most economical way to achieve high PF value (PF> 0.9), and meet the requirements of EU EN61000-3-2 for harmonic current Class C. The body adopts 94V-0 fireproof grade plastic shell using a two-wire input method (Class II, no FG) with double insulation effect, which can effectively avoid the risk of electric shock. What’s more, PLD-60 has built-in short circuit protection, over temperature protection and other functions, and has also passed ENEC EN61347-2-13, EN62384, CE and other lighting related certifications. Meanwell has tested a number of world-renowned brand TRIAC dimmers, all of which have a good matching effect with PCD-60. . Considering its longevity, high efficiency and low price, Meanwell PLD-60 Series is ideally suitable for LED indoor lighting or decorative light source related applications.
Meanwell PLD-60 Series Model Specifications
| Model | PLD-60-500B | PLD-60-700B | PLD-60-1050B | PLD-60-1400B | PLD-60-1750B | PLD-60-2000B | PLD-60-2400B | |
| OUTPUT | RATED CURRENT | 500mA | 700mA | 1050mA | 1400mA | 1750mA | 2000mA | 2400mA |
| OPERATING VOLTAGE RANGE | 70-108V | 50-86V | 34-57V | 25-43V | 20-34V | 18-30V | 15-25V | |
| CURRENT ACCURACY | ±5.0% | |||||||
| RATED POWER | 54W | 60.2W | 59.85W | 60.2W | 59.5W | 60W | 60W | |
| RIPPLE & NOISE (max.) | 10.2Vp-p | 5.6Vp-p | 3.8Vp-p | 3.4Vp-p | 3.3Vp-p | 2.4Vp-p | 2.4Vp-p | |
| NO LOAD OUTPUT VOLTAGE (max.) | 118V | 100V | 63V | 50V | 50V | 35V | 35V | |
| SETUP TIME | 500ms / 230VAC at full load | |||||||
| INPUT | VOLTAGE RANGE | 180~295VAC | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| POWER FACTOR (Typ.) | PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |||||||
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=60%(PLD-60-500B loading>=65%)at 230VAC input and output loading>=75% at 277VAC input | |||||||
| EFFICIENCY (Typ.) | 88.00% | 87.00% | 87.00% | 86.00% | 86.00% | 86.00% | 86.00% | |
| AC CURRENT (Typ.) | 0.6A/230VAC 0.5A/277VAC | |||||||
| INRUSH CURRENT(Typ.) | COLD START 25A (twidth=60μs measured at 50% Ipeak) at 230VAC | |||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC | |||||||
| LEAKAGE CURRENT | <0.5mA / 240VAC | |||||||
| PROTECTION | OVER TEMPERATURE | Shut down o/p voltage, auto-recovery | ||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||||
| ENVIRONMENT | WORKING TEMP | -30 ~ +45℃ (Refer to "Derating Curve") | ||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||
| SAFETY&EMC | SAFETY STANDARDS | ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, BIS IS15885(for 700B,1050B,1400B only), EAC TP TC 004, IP42 approved |
||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, EAC TP TC 020 | |||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B, EAC TP TC 020 | |||||||
| Others | MTBF | 4642.1K hrs min. Telcordia SR-332 (Bellcore) ; 458.9Khrs min. MIL-HDBK-217F (25℃) | ||||||
| DIMENSION | 128*60*31.5mm (L*W*H) | |||||||
| PACKING | 0.34Kg;30pcs/11.2Kg/0.58CUFT | |||||||

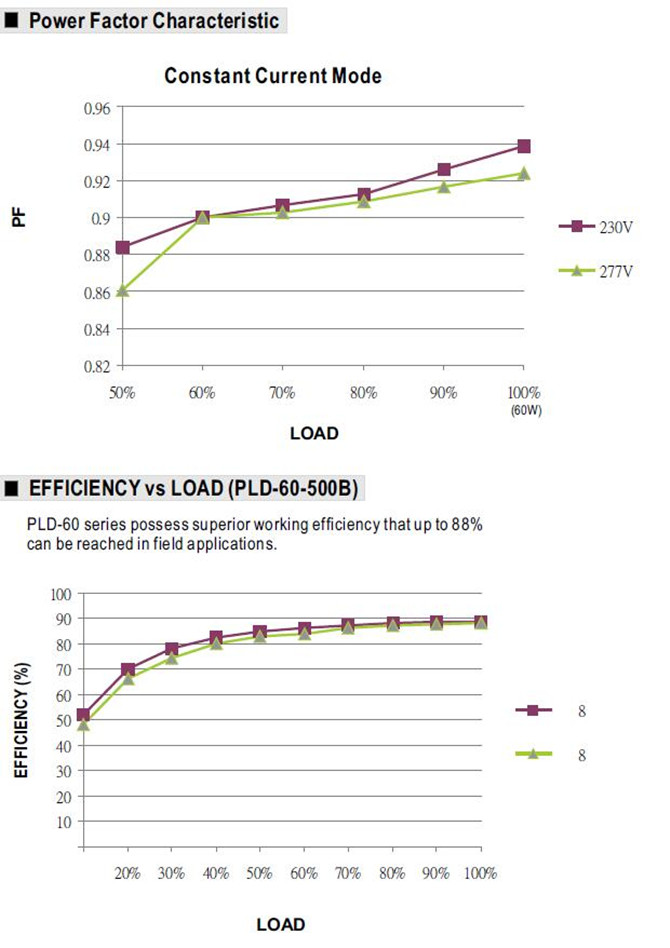

Meanwell PLD-60 Series Features
l Built-in active PFC function
l Constant current design
l Protections: Short circuit / Over temperature
l Cooling by free air convection
l Fully isolated plastic case
l IP42 design
l ClassⅡpower unit, no FG
l Suitable for LED related fixture or appliance (such as L ED Decoration or Advertisement devices)100% full load burn-in test
l Low cost
l High reliability
l 3 years warranty

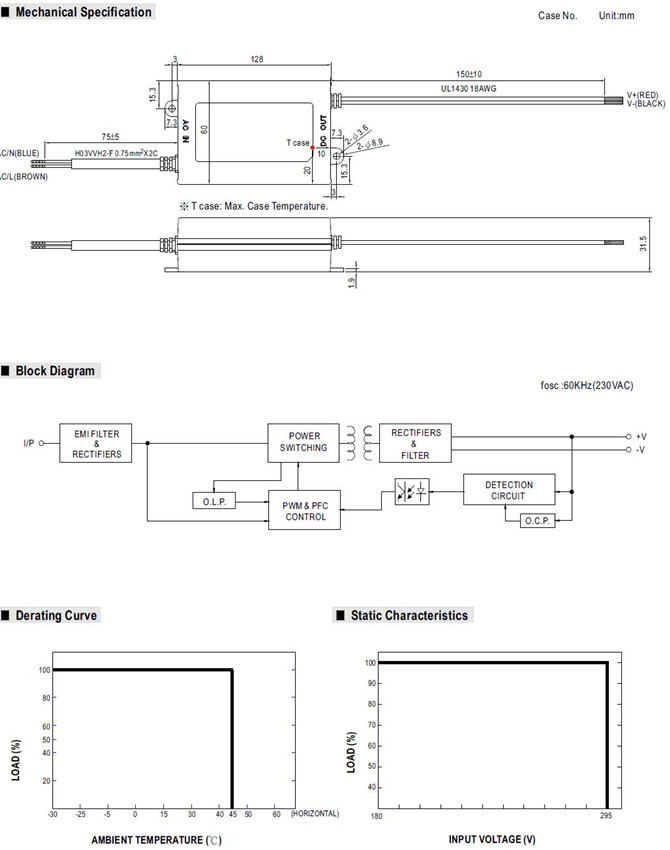

Meanwell PLD-60 Series Mechanical Diagram
