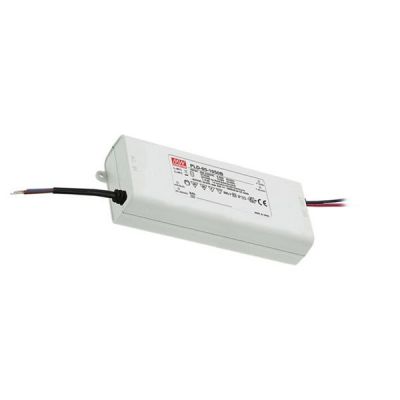

PLD-60-700B
22.36
Details
Meanwell PLD-60-700B is 60W Single Output LED Power Supply with 700mA50-86V±5.0%60.2W5.6Vp-p100V500ms/230VAC at full load. The unit outstands 180~295VAC voltage input with 700mA single constant current output. With leading edge or trailing edge TRIAC dimmers, the brightness of LED lamps could be adjusted to satisfy the needs of AC dimming applications in LED lighting market. While working at full load, the conversion efficiency reaches high to 88%. PLD-60-700B is able to operate at -30°C ~50°C under natural air cooling. Moreover, the item is designed with single-stage PFC line in the most economical way to achieve high PF value (PF> 0.9), and meet the requirements of EU EN61000-3-2 for harmonic current Class C. The body adopts 94V-0 fireproof grade plastic shell using a two-wire input method (Class II, no FG) with double insulation effect, which effectively avoids the risk of electric shock. Additionally, PLD-60-700B has built-in short circuit protection, over temperature protection and other functions, and has also passed ENEC EN61347-2-13, EN62384, CE and other lighting related certifications. Meanwell has tested a number of world-renowned brand TRIAC dimmers, all of which have a good matching effect with PCD-60. Thanks to its longevity, high efficiency and low price, Meanwell PLD-60-700B is ideally suitable for LED indoor lighting or decorative light source related applications.
Meanwell PLD-60-700B Specifications
| Model | PLD-60-700B | |
| OUTPUT | RATED CURRENT | 700mA |
| OPERATING VOLTAGE RANGE | 50-86V | |
| CURRENT ACCURACY | ±5.0% | |
| RATED POWER | 60.2W | |
| RIPPLE & NOISE (max.) | 5.6Vp-p | |
| NO LOAD OUTPUT VOLTAGE (max.) | 100V | |
| SETUP TIME | 500ms / 230VAC at full load | |
| INPUT | VOLTAGE RANGE | 180~295VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=60%(PLD-60-500B loading>=65%)at 230VAC input and output loading>=75% at 277VAC input | |
| EFFICIENCY (Typ.) | 87.00% | |
| AC CURRENT (Typ.) | 0.6A/230VAC 0.5A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 25A (twidth=60μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.5mA / 240VAC | |
| PROTECTION | OVER TEMPERATURE | Shut down o/p voltage, auto-recovery |
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +45℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, BIS IS15885(for 700B,1050B,1400B only), EAC TP TC 004, IP42 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B, EAC TP TC 020 | |
| Others | MTBF | 4642.1K hrs min. Telcordia SR-332 (Bellcore) ; 458.9Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 128*60*31.5mm (L*W*H) | |
| PACKING | 0.34Kg;30pcs/11.2Kg/0.58CUFT | |
Meanwell PLD-60-700B Features
l Low cost
l High reliability
l 3 years warranty
l Built-in active PFC function
l Constant current design
l Protections: Short circuit / Over temperature
l Cooling by free air convection
l Fully isolated plastic case
l IP42 design
l ClassⅡpower unit, no FG
l Suitable for LED related fixture or appliance (such as L ED Decoration or Advertisement devices)100% full load burn-in test

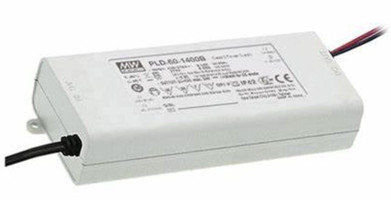

Meanwell PLD-60-700B Mechanical Diagram
