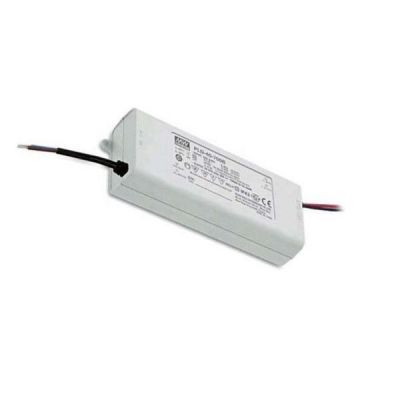

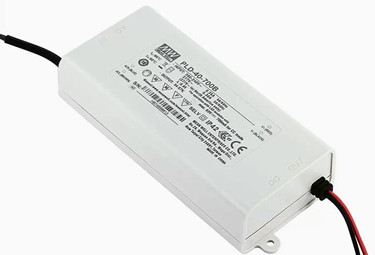

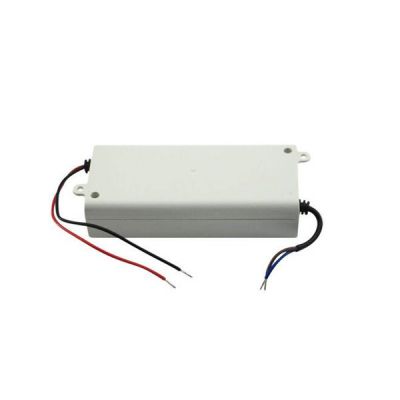

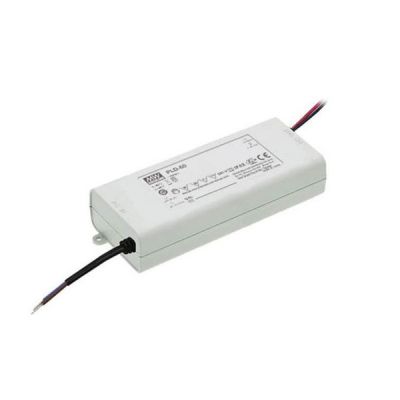

PLD-40-700B
21.83
Details
Meanwell PLD-40-700B is 40W Single Output LED Power Supply with 700mA34-57V±5.0%39.9W3.1Vp-p63V500ms/230VAC at full load. The item stands out with 180~295VAC voltage input with 700mA. Meanwhile, it is designed with single-stage PFC lines achieving high PF value in the most economical way, PF>0.9. As the high efficiency reaches up to 88%, the unit is able to operate at -30℃~50℃ under natural air cooling. What’s more, PLD-40-700B complies with the requirements of EU EN61000-3-2 for harmonic current Class C. And It is also equipped with various protections such as Short circuit and Over temperature. As a result of its longevity, high efficiency and low price, Meanwell PLD-40-700B is ideally suitable for LED indoor lighting or decorative light source related applications
Meanwell PLD-40-700 Specifications
| Model | PLD-40-700B | |
| OUTPUT | RATED CURRENT | 700mA |
| OPERATING VOLTAGE RANGE | 34-57V | |
| CURRENT ACCURACY | ±5.0% | |
| RATED POWER | 39.9W | |
| RIPPLE & NOISE (max.) | 3.1Vp-p | |
| NO LOAD OUTPUT VOLTAGE (max.) | 63V | |
| SETUP TIME | 500ms / 230VAC at full load | |
| INPUT | VOLTAGE RANGE | 180~295VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=60%(PLD-40-350B loading>=65%)at 230VAC input and output loading>=75% at 277VAC input | |
| EFFICIENCY (Typ.) | 87.00% | |
| AC CURRENT (Typ.) | 0.35A/230VAC 0.3A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 25A (twidth=60μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 47 units (circuit breaker of type B) / 47 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.5mA / 240VAC | |
| PROTECTION | OVER TEMPERATURE | Shut down o/p voltage, auto-recovery |
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, BIS IS15885(for 350B,700B,1050B only), EAC TP TC 004, IP42 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B, EAC TP TC 020 | |
| Others | MTBF | 4826.5K hrs min. Telcordia SR-332 (Bellcore) ; 865.2Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 128*60*31.5mm (L*W*H) | |
| PACKING | 0.22Kg;30pcs/7.6Kg/0.58CUFT | |
Meanwell PLD-40-700B Features
l Low cost
l IP42 design
l High reliability
l 3 years warranty
l Built-in active PFC function
l 100% full load burn-in test
l Cooling by free air convection
l Constant current design
l Fully isolated plastic case
l ClassⅡpower unit, no FG
l Protections: Short circuit/Over temperature
l Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
Meanwell PLD-40-700B Mechanical Diagram
