PLD-25-1400
13.97
Details

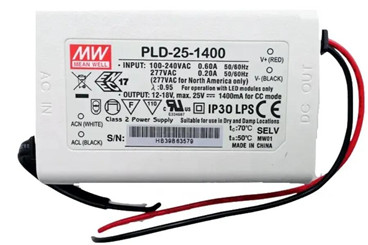

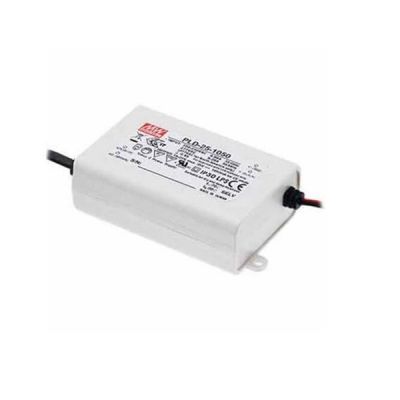

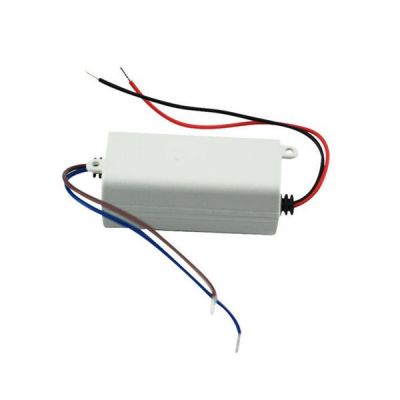

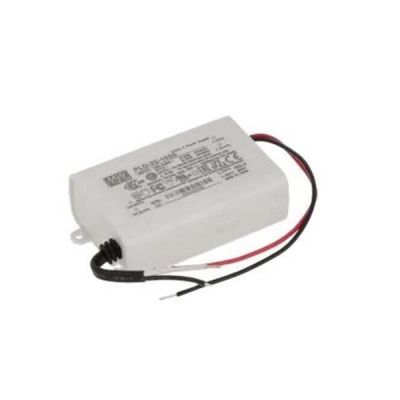

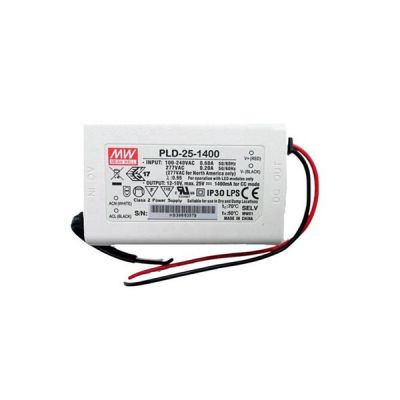

Meanwell PLD-25-1400 is 25W Single Output LED Power Supply with 1400mA12-18V±5.0%25.2W2Vp-p25V500ms/230VAC 2000ms/115VAC at full load. The model uses single-stage PFC to achieve the requirements of high PF value (PF>0.9) in the most economical way, so the cost can be maintained. As the efficiency reaches high up to 86%, PLD-25-1400 could operate under -30°C ~+60°C temperature via natural air cooling. Furthermore, the design is a two-wire input (Class II, no FG) with double insulation effect, and the body adopts a plastic shell with 94V-0 fire rating, which can effectively avoid the risk of electric shock for users. Additionally, PLD-25-1400 is supplied with various protection functions such as short circuit, overload, and over temperature. 7.5cm/18AWG and 15cm/18AWG power cords are equipped in the input and output mode, which is convenient for users to flexibly assemble in various working situations. Apart from them , the model has obtained CE (EN55015 and EN61547)/FCC Part 18 lighting related certification, and meet the requirements of UL8750 and EN61347. Because of its long lifetime, high efficiency and competitive price, Meanwell PLD-25-1400 is ideally suitable for LED indoor lighting or decorative light source related applications
Meanwell PLD-25-1400 Specifications
| Model | PLD-25-1400 | |
| OUTPUT | RATED CURRENT | 1400mA |
| OPERATING VOLTAGE RANGE | 12-18V | |
| CURRENT ACCURACY | ±5.0% | |
| RATED POWER | 25.2W | |
| RIPPLE & NOISE (max.) | 2Vp-p | |
| NO LOAD OUTPUT VOLTAGE (max.) | 25V | |
| SETUP TIME | 500ms / 230VAC 2000ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 295VAC 127 ~ 417VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.98/115VAC, PF>0.92/230VAC, PF>0.91/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=70% at 115VAC/230VAC input and output loading>=80% at 277VAC input | |
| EFFICIENCY (Typ.) | 84.00% | |
| AC CURRENT (Typ.) | 0.6A/115VAC 0.3A/230VAC 0.2A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 25A(twidth=75μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 72 units (circuit breaker of type B) / 80 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.5mA / 240VAC | |
| PROTECTION | OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover |
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +60℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN 61347-1, BS EN/EN 61347-2-13 independent, BS EN/EN 62384, EAC TP TC 004, IP42 approved ; design refer to UL60950-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (<=75% load) ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020 | |
| Others | MTBF | 5524.2K hrs min. Telcordia SR-332 (Bellcore) ; 968.2Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 84*57*29.5mm (L*W*H) | |
| PACKING | 0.19Kg; 72pcs/14.7Kg/0.75CUFT | |
Meanwell PLD-25-1400 Features
l IP42 design
l Low cost
l High reliability
l 3 years warranty
l Class 2 Power Unit
l Built-in active PFC function
l Constant current design
l Fully isolated plastic case
l Class I power unit, no FG
l 100% full load burn-in test
l Cooling by free air convection
l Suitable for dry/damp locations
l Universal AC input/Full range (up to 295VAC)
l Protections: Short circuit/Over temperature
l Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
Meanwell PLD-25-1400 Mechanical Diagram
