PLD-25-1050
13.81
Details

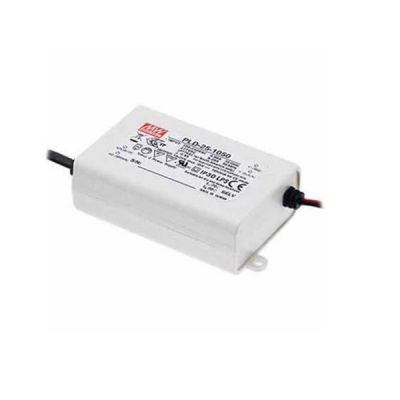

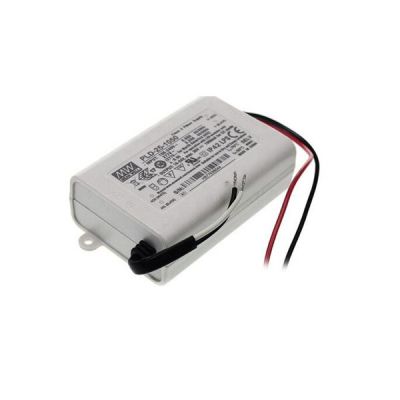

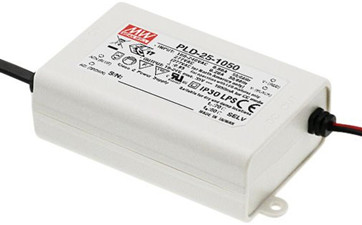

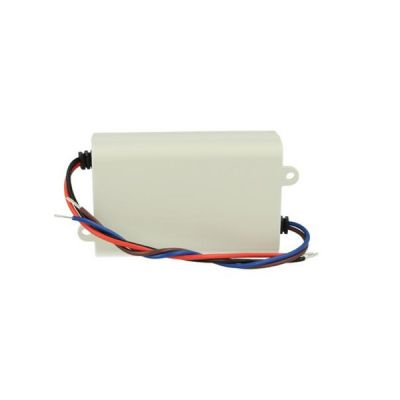

Meanwell PLD-25-1050 is 25W Single Output LED Power Supply with 1050mA16-24V±5.0%25.2W2.2Vp-p35V500ms/230VAC 2000ms/115VAC at full load. It adopts single-stage PFC in the line design to achieve the requirements of high PF value (PF>0.9) in the most economical way, so, the cost can be maintained. Since the high efficiency reaches up to 86%, PLD-25-1050 could work under -30°C ~+60°C temperature via natural air cooling. Moreover, the design is a two-wire input (Class II, no FG) with double insulation effect, and the body uses a plastic shell with 94V-0 fire rating, which can effectively avoid the risk of electric shock for users. Furthermore, PLD-25-1050 is provided with various protection functions such as short circuit, overload, and over temperature. 7.5cm/18AWG and 15cm/18AWG power cords are supplied in the input and output mode, which is convenient for users to flexibly assemble in various working situations. In addition, the unit has obtained CE (EN55015 and EN61547)/FCC Part 18 lighting related certification, and meet the requirements of UL8750 and EN61347. As a result of its long lifetime, high efficiency and competitive price, Meanwell PLD-25-1050 is ideally suitable for LED indoor lighting or decorative light source related applications
Meanwell PLD-25-1050 Specifications
| Model | PLD-25-1050 | |
| OUTPUT | RATED CURRENT | 1050mA |
| OPERATING VOLTAGE RANGE | 16-24V | |
| CURRENT ACCURACY | ±5.0% | |
| RATED POWER | 25.2W | |
| RIPPLE & NOISE (max.) | 2.2Vp-p | |
| NO LOAD OUTPUT VOLTAGE (max.) | 35V | |
| SETUP TIME | 500ms / 230VAC 2000ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 295VAC 127 ~ 417VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.98/115VAC, PF>0.92/230VAC, PF>0.91/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=70% at 115VAC/230VAC input and output loading>=80% at 277VAC input | |
| EFFICIENCY (Typ.) | 85.00% | |
| AC CURRENT (Typ.) | 0.6A/115VAC 0.3A/230VAC 0.2A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 25A(twidth=75μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 72 units (circuit breaker of type B) / 80 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.5mA / 240VAC | |
| PROTECTION | OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover |
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +60℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN 61347-1, BS EN/EN 61347-2-13 independent, BS EN/EN 62384, EAC TP TC 004, IP42 approved ; design refer to UL60950-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (<=75% load) ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020 | |
| Others | MTBF | 5524.2K hrs min. Telcordia SR-332 (Bellcore) ; 968.2Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 84*57*29.5mm (L*W*H) | |
| PACKING | 0.19Kg; 72pcs/14.7Kg/0.75CUFT | |
Meanwell PLD-25-1050 Features
l IP42 design
l Low cost
l High reliability
l 3 years warranty
l Built-in active PFC function
l Constant current design
l Cooling by free air convection
l Fully isolated plastic case
l Class 2 Power Unit
l Class I power unit, no FG
l 100% full load burn-in test
l Suitable for dry/damp locations
l Universal AC input/Full range (up to 295VAC)
l Protections: Short circuit/Over temperature
l Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
