PLD-16-700
14.47
Details

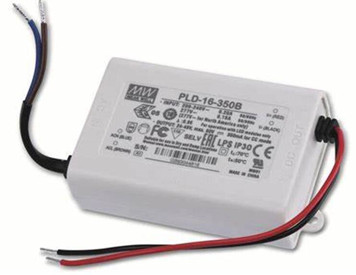

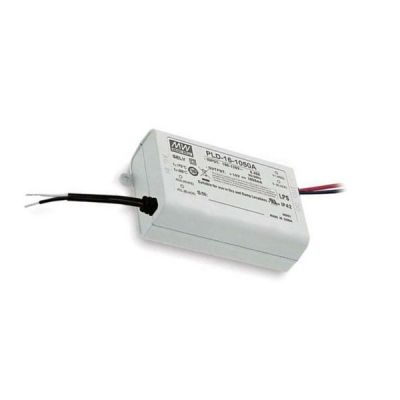

Meanwell PLD-16-700 is 16W Single Output LED Power Supply with 700mA16-24V±5.0%16.8W2.7Vp-p35V500ms/230VAC 2000ms/115VAC at full load. The item is 115VAC or 230V AC models available. Since the efficiency reaches high up to 86% based on no fan design, PLD-16-700 is able to work for -30℃~+50℃ case temperature under free air convection. Moreover, the unit is supplied with various protection functions such as Short circuit and Over temperature. Thanks to its longevity, high efficiency and low cost, Meanwell PLD-16-700 is ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices.
Meanwell PLD-16-700 Specifications
| PLD-16-700 | A | A: with AC input 90-135VAC |
| B | B: with AC input 180-295VAC |
| Model | PLD-16-700 □ | |
| OUTPUT | RATED CURRENT | 700mA |
| OPERATING VOLTAGE RANGE | 16-24V | |
| CURRENT ACCURACY | ±5.0% | |
| RATED POWER | 16.8W | |
| RIPPLE & NOISE (max.) | 2.7Vp-p | |
| NO LOAD OUTPUT VOLTAGE (max.) | 35V | |
| SETUP TIME | 500ms / 230VAC 2000ms / 115VAC at full load | |
| INPUT | FREQUENCY RANGE | 47 ~ 63Hz |
| POWER FACTOR (Typ.) | PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |
| TOTAL HARMONIC DISTORTION | A Series THD< 20% when output loading>=70% at 115VAC | |
| TOTAL HARMONIC DISTORTION | B Series THD< 20% when output loading>=70% at 230VAC input and output loading>=80% at 277VAC input | |
| EFFICIENCY (Typ.) A Series | 84.50% | |
| EFFICIENCY (Typ.) B Series | 86.00% | |
| AC CURRENT (Typ.) | 0.4A/115VAC 0.2A/230VAC 0.15A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 20A(twidth=25μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | A Series 58 units (circuit breaker of type B) / 58 units (circuit breaker of type C) at 115VAC | |
| B Series 128 units (circuit breaker of type B) / 128 units (circuit breaker of type C) at 230VAC | ||
| LEAKAGE CURRENT | <0.5mA / 240VAC | |
| PROTECTION | OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover |
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No.250.0-08;ENEC BS EN/EN 613471-1,BS EN/EN 61347-2-13 independent BS EN/EN62384(for B type only), EAC TP TC 004, IP42 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment(A type only), EAC TP TC 020 |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level, EAC TP TC 020 | |
| Others | MTBF | 6807.7K hrs min. Telcordia SR-332 (Bellcore) ; 872.4Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 84*57*29.5mm (L*W*H) | |
| PACKING | 0.19Kg; 72pcs/14.7Kg/0.92CUFT | |
Meanwell PLD-16-700 Features
l LOW cost
l High reliability
l IP42 design
l 3 years warranty
l 115VAC or 230V AC models available
l Built-in active PFC function
l Constant current design
l Protections: Short circuit / Over temperature
l Cooling by free air convection
l Fully isolated plastic case
l Class 2 Power Unit
l Class I power unit, no FG
l 100% full load burn-in test
l Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
