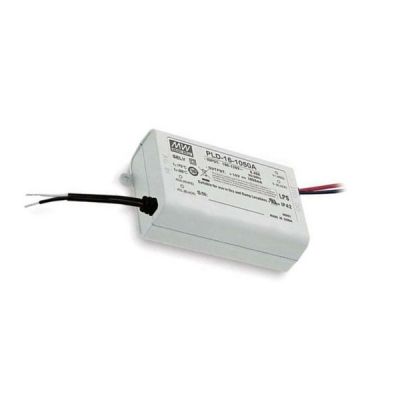

PLD-16-1050
14.71
Details

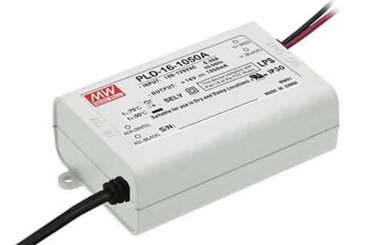

Meanwell PLD-16-1050 is 16W Single Output LED Power Supply with 1050mA12-16V±5.0%16.8W2.2Vp-p25V500ms/230VAC 2000ms/115VAC at full load. The unit is 115VAC or 230V AC models available. Since the high efficiency reaches up to 86% based on no fan design, PLD-16-1050 is able to operate for -30℃~+50℃ case temperature under free air convection. Apart from them, the product is equipped with various protection functions such as Short circuit and Over temperature. As a result of its longevity, high efficiency and low cost, Meanwell PLD-16-1050 is ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices.
Meanwell PLD-16-1050 Specifications
| PLD-16-1050 | A | A: with AC input 90-135VAC |
| B | B: with AC input 180-295VAC |
| Model | PLD-16-1050 □ | |
| OUTPUT | RATED CURRENT | 1050mA |
| OPERATING VOLTAGE RANGE | 12-16V | |
| CURRENT ACCURACY | ±5.0% | |
| RATED POWER | 16.8W | |
| RIPPLE & NOISE (max.) | 2.2Vp-p | |
| NO LOAD OUTPUT VOLTAGE (max.) | 25V | |
| SETUP TIME | 500ms / 230VAC 2000ms / 115VAC at full load | |
| INPUT | FREQUENCY RANGE | 47 ~ 63Hz |
| POWER FACTOR (Typ.) | PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |
| TOTAL HARMONIC DISTORTION | A Series THD< 20% when output loading>=70% at 115VAC | |
| TOTAL HARMONIC DISTORTION | B Series THD< 20% when output loading>=70% at 230VAC input and output loading>=80% at 277VAC input | |
| EFFICIENCY (Typ.) A Series | 84.00% | |
| EFFICIENCY (Typ.) B Series | 85.00% | |
| AC CURRENT (Typ.) | 0.4A/115VAC 0.2A/230VAC 0.15A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 20A(twidth=25μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | A Series 58 units (circuit breaker of type B) / 58 units (circuit breaker of type C) at 115VAC | |
| B Series 128 units (circuit breaker of type B) / 128 units (circuit breaker of type C) at 230VAC | ||
| LEAKAGE CURRENT | <0.5mA / 240VAC | |
| PROTECTION | OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover |
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No.250.0-08;ENEC BS EN/EN 613471-1,BS EN/EN 61347-2-13 independent BS EN/EN62384(for B type only), EAC TP TC 004, IP42 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment(A type only), EAC TP TC 020 |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level, EAC TP TC 020 | |
| Others | MTBF | 6807.7K hrs min. Telcordia SR-332 (Bellcore) ; 872.4Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 84*57*29.5mm (L*W*H) | |
| PACKING | 0.19Kg; 72pcs/14.7Kg/0.92CUFT | |
Meanwell PLD-16-1050 Features
l LOW cost
l High reliability
l IP42 design
l 3 years warranty
l Built-in active PFC function
l Constant current design
l Cooling by free air convection
l Fully isolated plastic case
l Class 2 Power Unit
l Class I power unit, no FG
l 100% full load burn-in test
l 115VAC or 230V AC models available
l Protections: Short circuit / Over temperature
l Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
Meanwell PLD-16-1050 Mechanical Diagram
