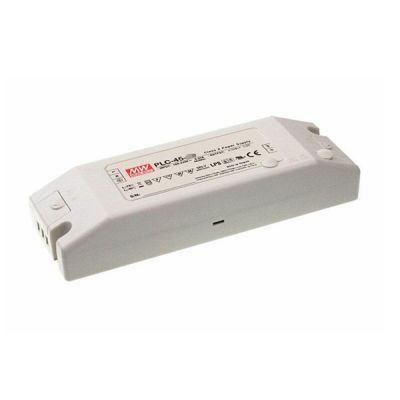

PLC-45
32.24
Details
Meanwell PLC-45 Series is 45W Single Output LED Power Supply. The entire series adopts leading edge zero current switching/zero voltage switching (ZCS/ZVS) technology, its work efficiency can be as high as 89%. Therefore, PLC-45 only uses natural air cooling and heat dissipation, and can work in environment of -30~+50°C. In addition, the product utilizes built-in active power factor correction (PFC) architecture and meets the EN61000-3-2 class C requirements for harmonic current class C (output load at 75% or higher). Moreover, when the output load reaches 75% or higher, the power factor (PF) value will be greater than 0.9, and Power Supply highlights CC+CV mode output power design, short circuit protection, overload protection, overvoltage protection and overtemperature protection. Apart from them, PLC-45 is also UL, CUL, TUV and CE global safety certified, including EN61347-2-13, UL1310 Class 2 and UL879. Typical applications for these new Class 2 power supplies include LED strip displays and backlights, LED decoration/architectural lighting, LED stage lighting and LED electronic displays.
Meanwell PLC-45 Series Model Specifications

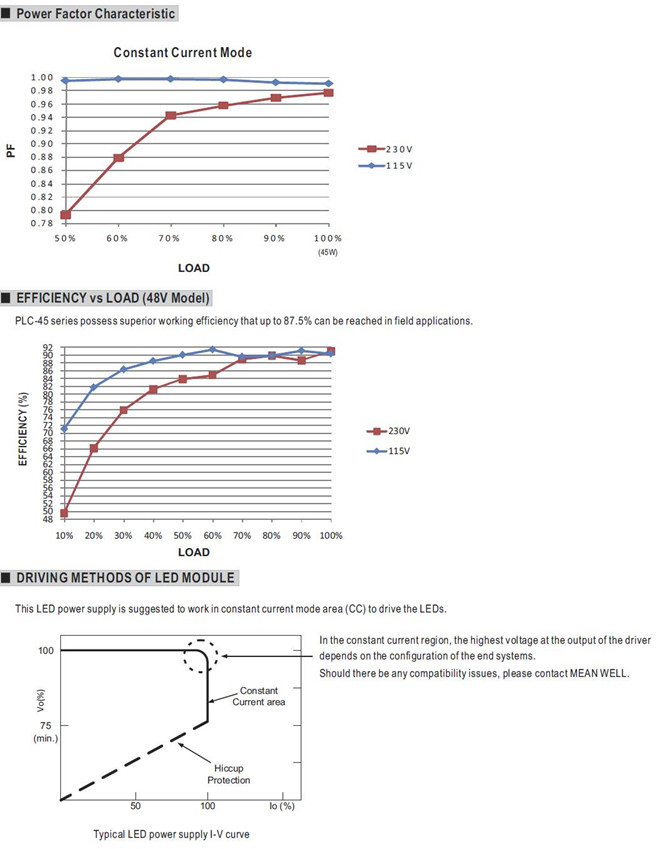

| Model | PLC-45-12 | PLC-45-15 | PLC-45-20 | PLC-45-24 | PLC-45-27 | PLC-45-36 | PLC-45-48 | |
| OUTPUT | DC VOLTAGE | 12V | 15V | 20V | 24V | 27V | 36V | 48V |
| CONSTANT CURRENT REGION | 9-12V | 11.25-15V | 15-20V | 18-24V | 20.25-27V | 27-36V | 36-48V | |
| RATED CURRENT | 3.8A | 3A | 2.3A | 1.9A | 1.7A | 1.25A | 0.95A | |
| CURRENT RANGE | 0-3.8A | 0-3A | 0-2.3A | 0-1.9A | 0-1.7A | 0-1.25A | 0-0.95A | |
| RATED POWER | 45.6W | 45W | 46W | 45.6W | 45.9W | 45W | 45.6W | |
| RIPPLE & NOISE (max.) | 2Vp-p | 2.4Vp-p | 1.8Vp-p | 2.7Vp-p | 2.7Vp-p | 3.6Vp-p | 4.6Vp-p | |
| VOLTAGE ADJ. RANGE | 11.5-13V | 14.5-16.2V | 19.5-22V | 24-26V | 25-30V | 32-39V | 43.6-51.8V | |
| CURRENT ADJ. RANGE | 2.85-3.914V | 2.25-3.1A | 1.725-2.37A | 1.425-1.957A | 1.275-1.75A | 0.938-1.288A | 0.713-0.979A | |
| VOLTAGE TOLERANCE | ±10% | |||||||
| LINE REGULATION | ±3.0% | |||||||
| LOAD REGULATION | ±5.0% | |||||||
| SETUP TIME | 500ms / 230VAC 1200ms / 115VAC at full load | |||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| POWER FACTOR (Typ.) | PF>0.92/115VAC, PF>0.9/230VAC at full load (Please refer to "Power Factor Characteristic" curve) | |||||||
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=75% at 115VAC/230VAC input | |||||||
| EFFICIENCY (Typ.) | 80.00% | 82.50% | 83.50% | 84.00% | 84.00% | 84.50% | 85.00% | |
| AC CURRENT (Typ.) | 0.55A/115VAC 0.25A/230VAC | |||||||
| INRUSH CURRENT(Typ.) | COLD START 35A(twidth=50μs measured at 50% Ipeak) at 230VAC | |||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 42 units (circuit breaker of type B) / 42 units (circuit breaker of type C) at 230VAC | |||||||
| LEAKAGE CURRENT | <0.75mA / 240VAC | |||||||
| PROTECTION | OVER CURRENT | 95 ~ 110% | ||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed. | |||||||
| OVER VOLTAGE | 13.8-16V | 17.5-21V | 22.8-25V | 28-32V | 31-35V | 41-46V | 54-60V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||||||
| ENVIRONMENT | WORKING TEMP | -30 ~ +50℃ (Refer to "Derating Curve") | ||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||
| SAFETY&EMC | SAFETY STANDARDS | UL1310, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), EAC TP TC 004 approved | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||
| EMC EMISSION | Compliance to BS EN/EN55015, GB17743, GB17625.1, BS EN/EN61000-3-2 Class C (>=75% load) ; BS EN/EN61000-3-3, EAC TP TC 020 | |||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020 | |||||||
| Others | MTBF | 3444.5K hrs min. Telcordia SR-332 (Bellcore) 417.1Khrs min. MIL-HDBK-217F (25℃) | ||||||
| DIMENSION | 181.5*62*35mm (L*W*H) | |||||||
| PACKING | 0.41Kg; 30pcs/13.3Kg/0.67CUFT | |||||||
Meanwell PLC-45 Series Features
l Universal AC input / Full range
l Adjustable output voltage and current level
l Protections: Short circuit/Over current/Over voltage/Over temperature
l Cooling by free air convection
l Built-in constant current limiting circuit
l Fully isolated plastic case with terminal block style of I/O
l Built-in active PFC function, comply with BS EN/EN61000-3-2 class C (>=75% load)
l Class 2 power unit
l Pass LPS
l 100% full load burn-in test
l High reliability
l Suitable for LED lighting and moving sign applications
l Compliance to worldwide safety regulations for lighting
l 2 years warranty

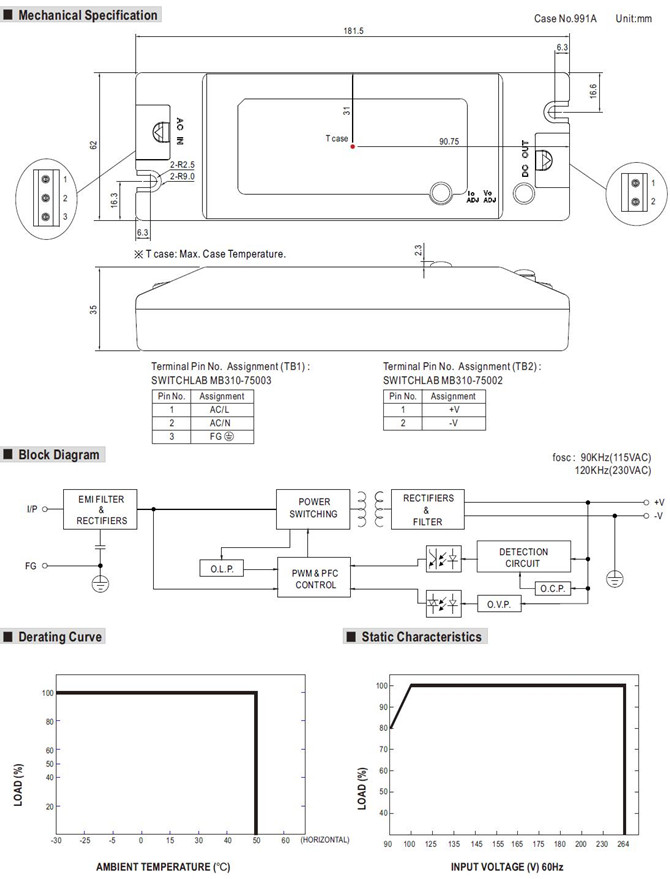

Meanwell PLC-45 Series Mechanical Diagram
