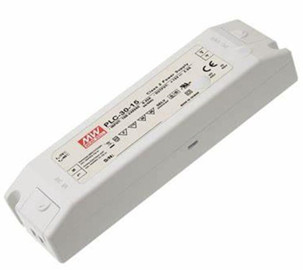

PLC-30-15
20.37
Details
Meanwell PLC-30-15 is 30W Single Output LED Power Supply with 15V10.5-15V2A0-2A30W2.6Vp-p14.5-16.5V1.5-2.06A. The mdoel accpets molded case non-glued waterproof with single-stage power factor correction. What’s more, it offers universal AC input Full range and no ground wires required for input. The power supply passes Class 2 limit testing, and has comprehensive protection including overtemperature protection. In addition, the input and output wiring adopts screw terminal junction box, which is suitable for LED indoor lighting and LED electronic billboard related applications.
Meanwell PLC-30-15 Specifications
| Model | PLC-30-15 | |
| OUTPUT | DC VOLTAGE | 15V |
| CONSTANT CURRENT REGION | 10.5-15V | |
| RATED CURRENT | 2A | |
| CURRENT RANGE | 0-2A | |
| RATED POWER | 30W | |
| RIPPLE & NOISE (max.) | 2.6Vp-p | |
| VOLTAGE ADJ. RANGE | 14.5-16.5V | |
| CURRENT ADJ. RANGE | 1.5-2.06A | |
| VOLTAGE TOLERANCE | ±10% | |
| LINE REGULATION | ±3.0% | |
| LOAD REGULATION | ±5.0 | |
| SETUP TIME | 500ms / 230VAC 3000ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.95/115VAC, PF>0.9/230VAC at full load (Please refer to "Power Factor Characteristic" curve) | |
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=70% at 115VAC/230VAC input | |
| EFFICIENCY (Typ.) | 83.50% | |
| AC CURRENT (Typ.) | 0.4A/115VAC 0.2A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 35A(twidth=25μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 64 units (circuit breaker of type B) / 64 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.5mA / 240VAC | |
| PROTECTION | OVER CURRENT | 100 ~ 110% |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed. | |
| OVER VOLTAGE | 17-22V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, auto-recovery | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.06%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL1310, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14,GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, GB17743, GB17625.1,BS EN/EN61000-3-2 Class C (Pin>=25W), Class D (>70% load) ; BS EN/EN61000-3-3,EAC TP TC 020 |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61547, light industry level, EAC TP TC 020 | |
| Others | MTBF | 4293.1K hrs min. Telcordia SR-332 (Bellcore) 625.5Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 160*46*30mm (L*W*H) | |
| PACKING | 0.2Kg; 70pcs/15Kg/0.96CUFT | |
Meanwell PLC-30-15 Features
l ClassⅡpower unit, no FG
l Class 2 power unit
l 100% full load burn-in test
l High reliability
l 2 years warranty
l Universal AC input/Full range
l Cooling by free air convection
l Built-in constant current limiting circuit
l Suitable for LED lighting and moving sign applications
l Compliance to worldwide safety regulations for lighting
l Fully isolated plastic case with terminal block style of Il/O
l Adjustable output voltage and current level
l Protections: Short circuit/Over current/Over voltage/Over temperature
l Built-in active PFC function, comply with BS EN/EN61000-3-2 class C(Pin225W)
Meanwell PLC-30-15 Mechanical Diagram
