PLC-100
40.03
Details

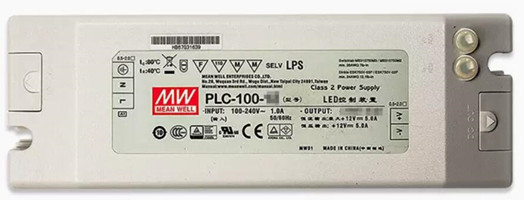

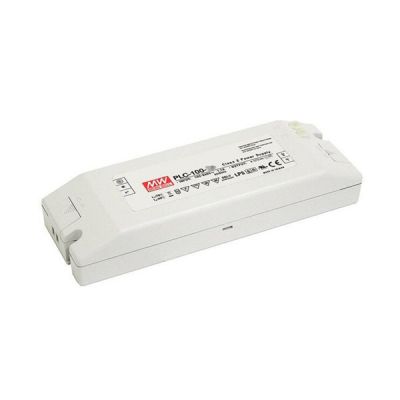

Meanwell PLC-100 Series is 100W Single Output Switching Power Supply. The entire Series is an improvement on the existing PLN-100, which adopts new plastic housing design to change the I/O terminal block connection, bringing more flexibility to the wiring work. Two small-hole rubber stoppers add to the housing, allowing users to adjust the output current or voltage without removing the housing. PLC-100 adopts leading edge zero current switch/zero voltage switch (ZCS/ZVS) technology, so that its efficiency can be as high as 88.5%. Therefore, it only uses natural air cooling heat dissipation, and can operate in -30~+50°C environment. The product utilizes built-in active power factor correction (PFC) architecture and meets the EN61000-3-2 harmonic current Class C requirements (output load of 75% or higher), which meets the needs of lighting equipment. In addition, the output current can be adjusted between 75%~100% (or 75%~103%) of the rated value, and the output voltage can be adjusted between 85%~100% (or 95%~110%) of the rated value. Apart from them, PLC-100 is also UL, CUL, TUV and CE global safety certified, including EN61347-2-13, UL1310 Class 2 and UL879. Typical applications for these new Class 2 power supplies include LED strip displays and backlights, LED decoration/architectural lighting, LED stage lighting and LED electronic displays.
Meanwell PLC-100 Series Model Specifications
| Model | PLC-100-12 | PLC-100-15 | PLC-100-20 | PLC-100-24 | PLC-100-27 | PLC-100-36 | PLC-100-48 | |
| OUTPUT | DC VOLTAGE | 12V | 15V | 20V | 24V | 27V | 36V | 48V |
| CONSTANT CURRENT REGION | 9-12V | 11.25-15V | 15-20V | 18-24V | 20.25-27V | 27-36V | 36-48V | |
| RATED CURRENT | 5A | 5A | 4.8A | 4A | 3.55A | 2.65A | 2A | |
| CURRENT RANGE | 0-5A | 0-5A | 0-4.8A | 0-4A | 0-3.55A | 0-2.65A | 0-2A | |
| RATED POWER | 60W | 75W | 96W | 96W | 95.85W | 95.4W | 96W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 10.2-12V | 12.8-15V | 17-20V | 20.4-24V | 23-27V | 30.6-36V | 40.8-48V | |
| CURRENT ADJ. RANGE | 3.75-5A | 3.75-5A | 3.6-4.9A | 3-4A | 2.6-3.55A | 2-2.65A | 1.5-2A | |
| VOLTAGE TOLERANCE | ±3.0% | ±3.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±1.0% | |||||||
| LOAD REGULATION | ±2.0% | |||||||
| SETUP TIME | 500ms, 80ms/230VAC 1200ms, 80ms/115VAC at full load | |||||||
| HOLD UP TIME (Typ.) | 60ms/230VAC 16ms/115VAC at full load | |||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||

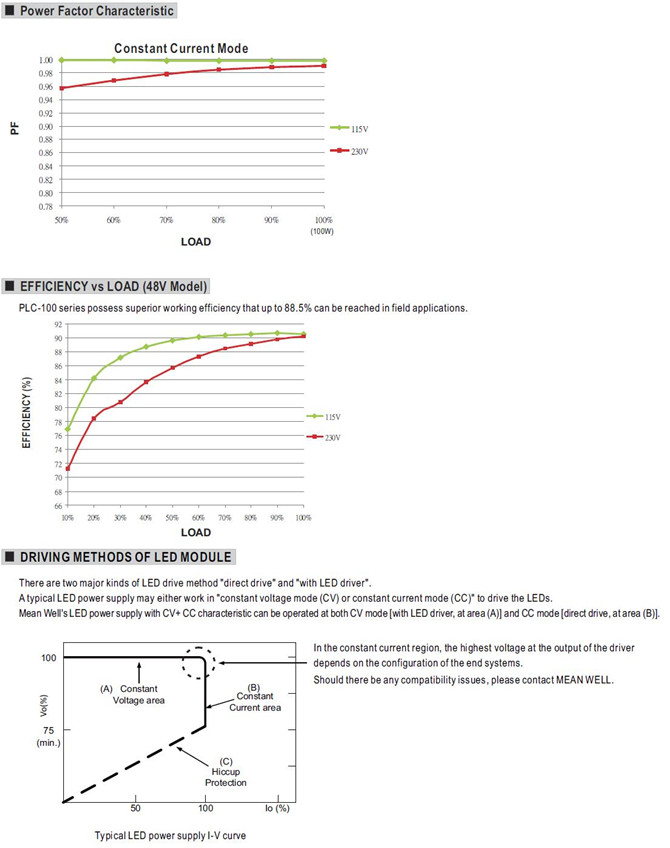

| POWER FACTOR (Typ.) | PF>0.95/115VAC, PF>0.95/230VAC at full load (Please refer to "Power Factor Characteristic" curve) | |||||||
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=75% at 115VAC/230VAC input | |||||||
| EFFICIENCY (Typ.) | 83.00% | 87.00% | 88.50% | 88.50% | 88.00% | 88.00% | 88.00% | |
| AC CURRENT (Typ.) | 12V:0.8A/115VAC 0.4A/230VAC 15V:0.9A/115VAC 0.45A/230VAC 20V ~ 48V:1.1A/115VAC 0.55A/230VAC | |||||||
| INRUSH CURRENT(Typ.) | COLD START 40A(twidth=950μs measured at 50% Ipeak) at 230VAC | |||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC | |||||||
| LEAKAGE CURRENT | <0.75mA / 240VAC | |||||||
| PROTECTION | OVER CURRENT | 95 ~ 102% | ||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||
| OVER VOLTAGE | 13-16V | 16.5-20V | 22-27V | 27-34V | 30-36V | 39-48V | 52-64V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||||
| ENVIRONMENT | WORKING TEMP | -30 ~ +50℃ (Refer to "Derating Curve") | ||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||
| SAFETY&EMC | SAFETY STANDARDS | UL1310, TUV BS EN/EN60950-1, BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), EAC TP TC 004 approved | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||
| EMC EMISSION | Compliance to BS EN/EN55015, GB17743, GB17625.1, BS EN/EN61000-3-2,-3, Class C (>=70% load) ; BS EN/EN61000-3-3, EAC TP TC 020 | |||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55035, light industry level, (surge 4KV), EAC TP TC 020 | |||||||
| Others | MTBF | 2688.3K hrs min. Telcordia SR-332 (Bellcore) ; 297.9Khrs min. MIL-HDBK-217F (25℃) | ||||||
| DIMENSION | 200.5*69.5*35mm (L*W*H) | |||||||
| PACKING | 0.52Kg; 25pcs/14Kg/0.65CUFT | |||||||
Meanwell PLC-100 Series Features
l Universal AC input/Full range
l High efficiency up to 88.5%
l Protections: Short circuit/Over current/Over voltage/Over temperature
l Cooling by free air convection
l Built-in active PFC function
l Class 2 power unit
l Pass LPS
l 100% full load burn-in test
l High reliability
l Suitable for LED lighting and moving sign applications
l Compliance to worldwide safety regulations for lighting
l 2 years warranty

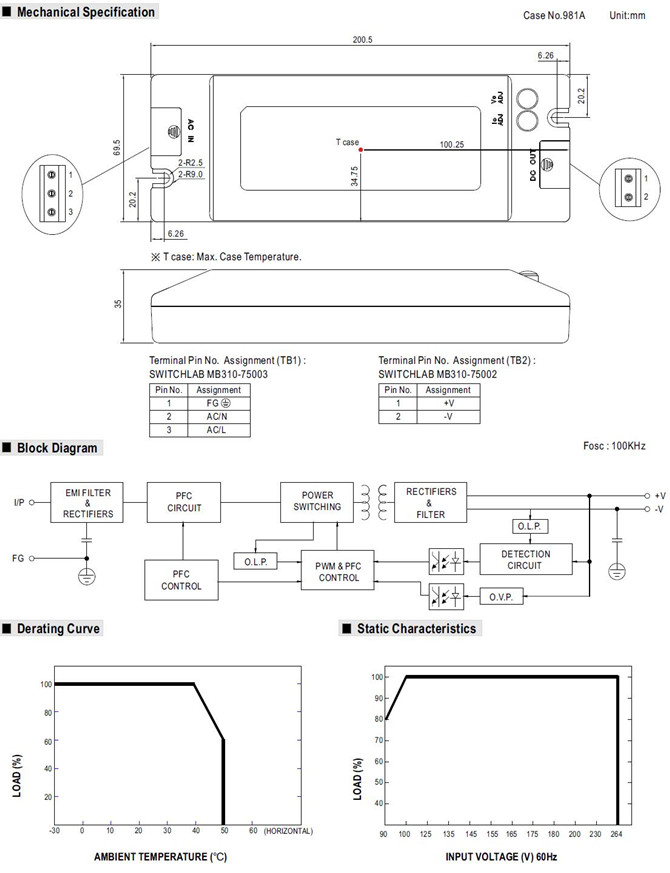

Meanwell PLC-100 Series Mechanical Diagram
