PIR-045
41.13
Details

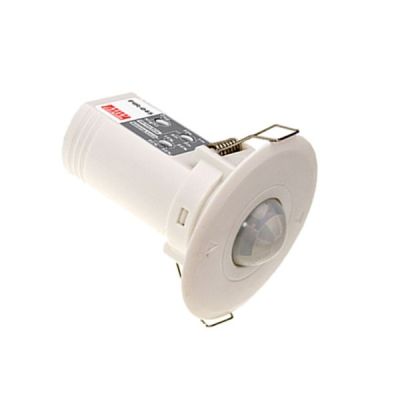

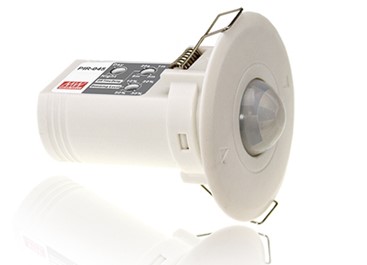

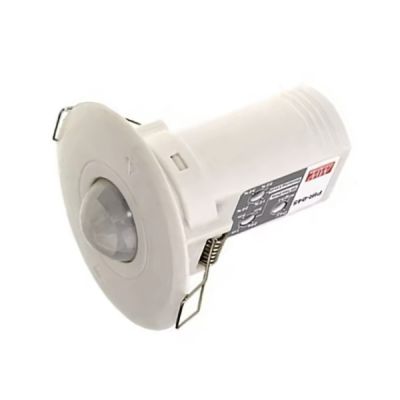

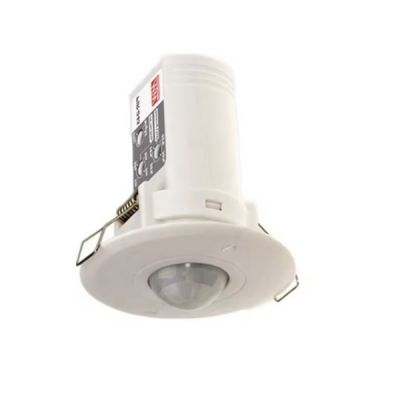

Meanwell PIR-045 Series is a photoelectric motion sensor with DC input. when PIR-045 deters movement of human, it will provide a dimming signal. At the same time, PIR-045 can work with a 0~10V or 1~10V dimmable led power supply so as to control multiple lighting units simultaneously.
Meanwell PIR-045 Series Model Specifications
| Model | PIR-045 | |
| Input/Output | SENSING DISTANCE | 6M |
| SENSING ANGLE | 120° | |
| OPERATING VOLTAGE | DC12~24V | |
| CURRENT CONSUMPTION | >=18mA | |
| OUTPUT DIM | External applied voltage:10V max. ; Sink current : 5mA max | |
| Function | WORKING PURPOSE | Day / Night |
| STANDBY BRIGHT | 10%, 20%, 30%, 50% | |
| DELAY OFF TIME | 20s, 1 min, 3min, 5min | |
| DIMMING MODE | gradually ON and OFF | |
| ENVIRONMENT | Operating Temp. | -10 ~ +40℃ |
| Operating humidity | 35 ~ 85% RH non-condensing | |
| Others | Material | PC |
| DIMENSION | 60*71.3mm (D*H) | |
| PACKING | 78g; 160pcs/13.6Kg | |
Meanwell PIR-045 Series Features
l Specific component from Japan
l Saving power, High sensitivity, Easy installation
l Compatible with any light source: Tungsten lamp, Light tube, LED light
l Multi-Function switchablel; OFF delay, Standby brightness, Day/Night functions 3 main settings combination
l 2 years warranty
Meanwell PIR-045 Series Applications
l Motion detection
l Suitable location: Parking lot, Basement, Staircase, Front door, Porch, Garage, Public toilet

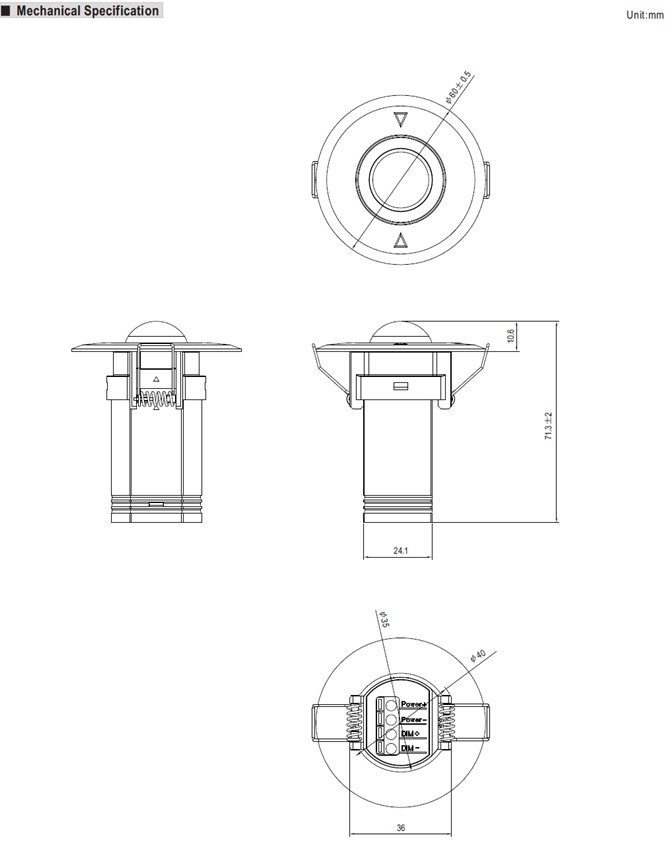

Meanwell PIR-045 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
