PID-250
50.26
Details

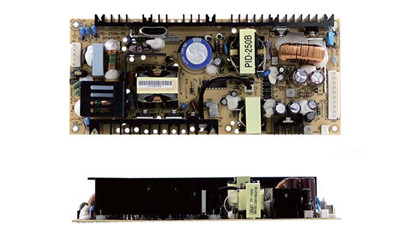

Meanwell PID-250 Series is 250W Isolated Dual Output with PFC Function. The entire series outstands with Universal AC input/Full range, Isolated output & GND for CH1, CH2 and Remote control for CH1. At the same time, the working efficiency reaches up to 86% and operate from -20 ℃through 70 ℃ under air convection with no fan. Apart from them, PID-250 provides the complete protections functions such as Short circuit, Overload, Over voltage and Over temperature. Since the series passes 100% full load burn-in test and the extremely low no load power consumption, this permits to meet the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Considering its high efficiency, low cost and longevity, Meanwell PID-250 Series Is a high price-to-performance power supply solution for various industrial applications in harsh working environment.
Meanwell PID-250 Series Model Specifications
| Model | PID-250A | PID-250B | PID-250C | PID-250D | |||||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH1 | CH2 | CH1 | CH2 | CH1 | CH2 |
| DC VOLTAGE | 12V | 5V | 24V | 5V | 36V | 5V | 48V | 5V | |
| RATED CURRENT | 15A(Peak 20A) | 5A | 9.4A(Peak 16.7A | 5A | 6.3A(Peak 11.1A) | 5A | 4.7A(Peak 8.4A) | 5A | |
| CURRENT RANGE | 0~15A (Peak 20A) | 0~5A | 0~9.4A (Peak 16.7A) | 0~5A | 0~6.3A (Peak 11.1A) | 0~5A | 0~4.7A (Peak 8.4A) | 0~5A | |
| RATED POWER | 205W | 250.6W | 251.8W | 250.6W | |||||
| RIPPLE & NOISE (max.) | 120mVp-p | 50mVp-p | 150mVp-p | 50mVp-p | 200mVp-p | 50mVp-p | 200mVp-p | 50mVp-p | |
| VOLTAGE ADJ. RANGE | 10.8~13.2V | 4.75~5.25V | 21.6~26.4V | 4.75~5.25V | 32.4~39.6V | 4.75~5.25V | 43.2 ~ 52.8V | 4.75~5.25V | |
| VOLTAGE TOL ERANCE | ±3.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGUL .ATION | ±1.0% | ±2.0% | ±1.0% | ±2.0% | ±1.0% | ±2.0% | ±1.0% | ±2.0% | |
| SETUP, RISE TIME | 2500ms, 60ms/115VAC 1200ms, 60ms/230VAC | ||||||||
| HOLD UP TIME (Typ.) | 30ms at full load | ||||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| POWER FACTOR | PF>=0.92/230VAC PF>=0.97/115VAC at full load | ||||||||
| EFFICIENCY (Typ.) | 83.00% | 86.00% | 86.00% | 86.00% | |||||
| AC CURRENT (Typ.) | 3A/115VAC 1.5A/230VAC | ||||||||
| INRUSH CURRENT(Typ.) | COLD START 58A/230VAC | ||||||||
| LEAKAGE CURRENT | <3.5mA / 240VAC | ||||||||
| PROTECTION | OVERL OAD | CH1: 105 ~ 170% rated output power Normally work within 10 sec and then shut down, re-power on to recover Over 180% rated power or short circuit, constant current limiting within 10 sec and then shut down, re-power on to recover |
|||||||
| CH2: 101 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed |
|||||||||
| OVER VOLTAGE | 13.8~ 6.2V | 5.5~6.75V | 27.6~32.4V | 5.5~6.75V | 40~48V | 5.5~6.75V | 54~64.8V | 5.5~6.75V | |
| Protection type : Shut down o/p voltage, re-power on to recover for CH1 ; Hiccup mode, recovers automatically afer fault condition is removed for CH2(by zener diode clamp) |
|||||||||
| OVER TEMPERATURE | Shut down o/p voltage(CH1), recovers automatically after temperature goes down | ||||||||
| FUNCTION | REMOTE CONTROL | CN52 : Open=CH1 & CH2 power on ; Short = CH1 power off, CH2 power on; when CH2 is malfunction, CH1 will be shut down | |||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃(Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | ||||||||
| TEMP. COEFFICIENT | ±0.05%/℃(0 ~ 50℃) on +5V output | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min each along X, Y, Z axes | ||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||||||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2, heavy industry level, criteria A, EAC TP TC 020 | ||||||||
| OTHERS | MTBF | 150.4K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 222*95*40mm (L*W*H) | ||||||||
| PACKING | 0.74Kg; 18pcs/14.3Kg/0.98CUFT | ||||||||
Meanwell PID-250 Series Features
l Universal AC input/Full range
l lsolated output & GND for CH1,CH2
l Built-in active PFC function, PF>0.92
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Remote control for CH1
l Peak load 170% for CH1 within 10 sec.
l Cooling by free air convection
l 100% full load burn-in test
l 3 years warranty

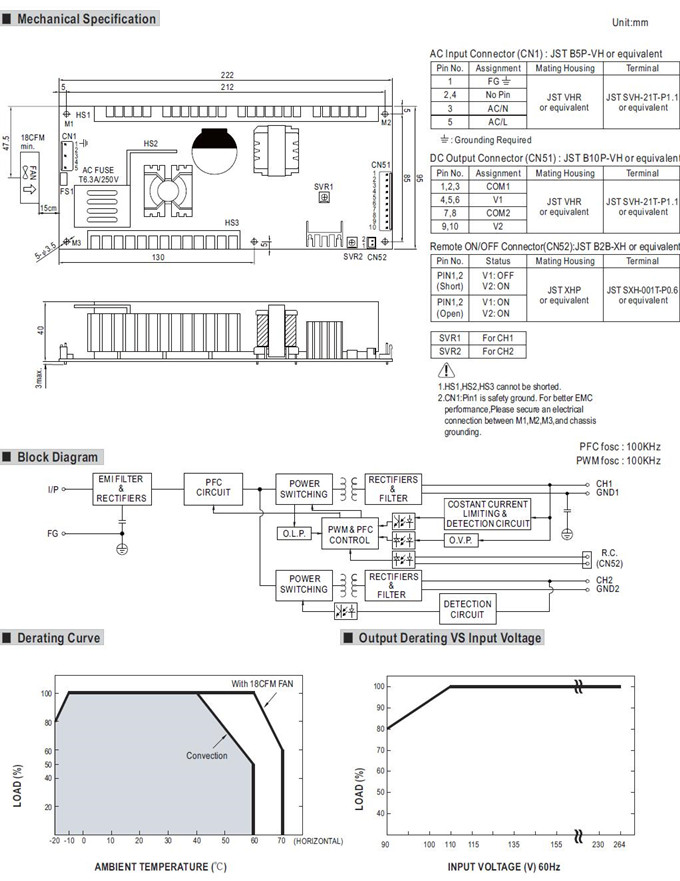

Meanwell PID-250 Series Mechanical Diagram
