PHP-3500
1202.58
Details

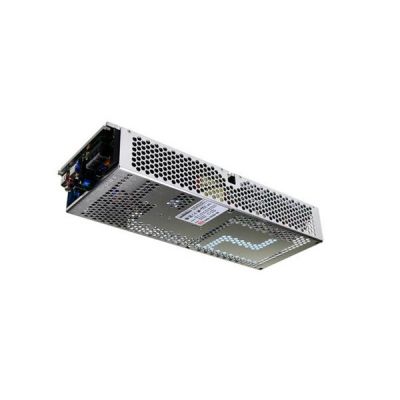

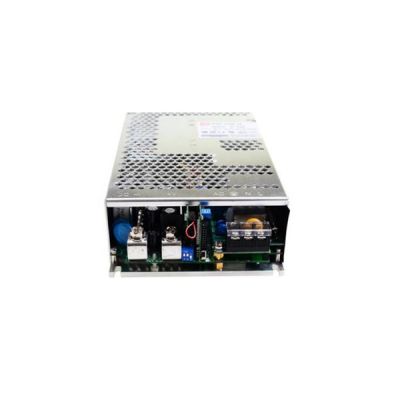

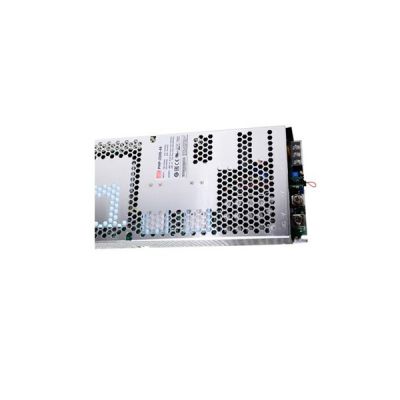

Meanwell PHP-3500 Series is a 3500W single-output slim type power supply with 60mm low profile design. By adopting the full range 90~264VAC input, the entire series provides an output voltage line of 24V and 48V.In addition to the high efficiency up to 96%, PHP-3500 Series operates from -30℃~ +70℃ under air convection without fan. As It takes unique fanless water cooling method. Compared with the traditional power supply using fan cooling, there is neither fan noise nor the problem of power failure caused by fan failure, which greatly improves the reliability of the power supply. Apart from them, PHP-3500 has built-in PMBus communication protocol and optional CANBus communication protocol. Combined with Meanwell HMI and the built-in digital controller, the electrical parameters can be monitored synchronously to meet the client's requirements for power management. What’s more, PHP-3500 has the complete protection functions and 2G anti-vibration capability and equipped with automatic load shedding, remote power on/off control, auxiliary power output, active current sharing design and built-in ORing field effect crystal to support output parallel connection. At the same time, it complies with the international safety regulations such as TUV BS EN/EN62368-1, UL .62368-1, and design refers to BS EN/EN61 558-1 and BS EN/EN60335-1. Considering its powerful performance, high reliability, and long lifespan, Meanwell PHP-3500 Series serves as a high performance power supply solution for various industrial applications such as industrial-grade laser process equipment, solid-state microwave communication, food processing equipment, battery charging equipment and other applications that require high-power power supplies (above 10,000 watts).
Meanwell PHP-3500 Series Encoding
| PHP | Series Name |
| 3500 | Rated wattage |
| 24 | Output Voltage |
| Type | Communication protocol option |
| Blank | PMBus Protocol |
| CAN | CANBus Protocol |
Meanwell PHP-3500 Series Model Specifications
| Model | PHP-3500-24 | PHP-3500-48 | ||
| Output | DC VOLTAGE | 24V | 48V | |
| RATED CURRENT | 145A | 73A | ||
| RATED POWER | 3480W | 3504W | ||
| RIPPLE & NOISE (max.) | 300 mVp-p | 480 mVp-p | ||
| VOLTAGE TOLERANCE | By built-in potentiometer, SVR | |||
| 24-28.8V | 48-57.6V | |||
| VOLTAGE TOLERANCE | ±1% | ±1% | ||
| LINE REGUL ATION | ±0.5% | ±0.5% | ||
| LOAD REGULATION | ±0.5% | ±0.5% | ||
| SETUP, RISE TIME | 1500ms, 60ms/230VAC 1500ms, 60ms/115VAC at full load | |||
| HOLD UP TIME (Typ.) | 16ms/230VAC at 75% load 10ms/230VAC at full load ; 16ms/115VAC at 75% load 10ms/115VAC at full load | |||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | PF>=0.95/230VAC PF>=0.99/115 VAC at full load | |||
| EFFICIENCY (Typ.) | 95.00% | 96.00% | ||
| AC CURRENT (Typ.) | 20A/115VAC 20A/230VAC | |||
| INRUSH CURRENT (Typ. ) | Cold start 30A/115VAC 80A/230VAC | |||
| LEAKAGE CURR ENT | 2mA / 240VAC | |||
| PROTECTION | OVERLOAD | 105 ~ 115% rated current | ||
| Protection type : Constant current limiting, shut down O/P voltage after 5 sec. After O/P voltage falls, re-power on to recover | ||||
| OVER VOLTAGE | 30 ~ 36V | 60 ~ 72V | ||
| Protection type :Shut down O/P voltage,re-power on to recover | ||||
| OVER TEMPERATURE | Protection type :Shut down O/P voltage, recovers automatically after temperature goes down | |||
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 50 ~ 120% of nominal output voltage. Please refer to the Function Manual. | ||
| OUTPUT CURRENT PROGRAMMABLE(PC) | Adjustment of constant current level is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual | |||
| REMOTE ON/OFF CONTROL | Power ON : Short circuit Power OFF : Open circuit | |||
| AUXILIARY POWER | 12V at 0.5A tolerance±10%, ripple 150mVp-p | |||
| DC-OK SIGNAL | The TTL signal out, PSU turn on = -0.5 ~ 0.5V ; PSU turn off = 3.5 ~ 5.5V. Please refer to the Function Manual | |||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃Baseplate temperature (Refer to “Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CAN/CSA C22.2 No. 62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved ; design refers to BS EN/EN61558-1, BS EN/EN60335-1 | ||
| WITHSTAND VOLTAGE | I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/ 70%RH | |||
| ISOLATION RESISTANCE | UL62368-1, CAN/CSA C22.2 No. 62368-1,TUV BS EN/EN62368-1, | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55032 (CISPR32) | Class B | ||
| Radiated | BS EN/EN55032 (CISPR32) | Class A | ||
| Harmonic Current | BS EN/EN61000-3-12 | ----- | ||
| Voltage Flicker | BS EN/EN61000-3-3 | ----- | ||
| EMC IMMUNITY | Parameter | Standard | Test Level | |
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-6-2 | 2KV/Line-Line 4KV/Line-Earth | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods,>95% interruptions 250 periods | ||
| Others | MTBF | 544.8K hrs min. Telcordia SR-332 (Bellcore) ; 56.3K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 380*141.4*60mm (L*W*H) | |||
| PACKING | 4.5Kg;4pcs/19Kg/2.46CUFT | |||
Meanwell PHP-3500 Series Features
l Slim and Low profile (60mm)
l Fanless design, cooling by water conduction
l Built-in active PFC function
l -30~+70 ℃ working temperature
l Built-in PMBus communication protocol, CANbus optional
l Output voltage and constant current level programmable
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Built-in remote ON-OFF control
l DC OK active signal
l Optional cold plate for quick implementation
l OVCⅢOperating altitude up to 3000 meter
l LED indicator for power on
l High efficiency up to 96%
l Active current sharing up to 14000W (3+1)
l 5 years warranty
Meanwell PHP-3500 Series Applications
l Industrial automation machinery
l Industrial control system
l Mechanical and electrical equipment
l Electronic instruments, equipment or apparatus
l Household appliances
Meanwell PHP-3500 Series Mechanical Diagram
