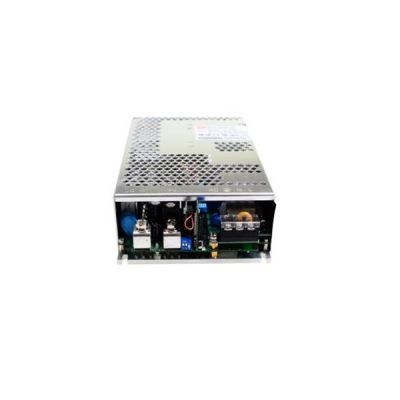

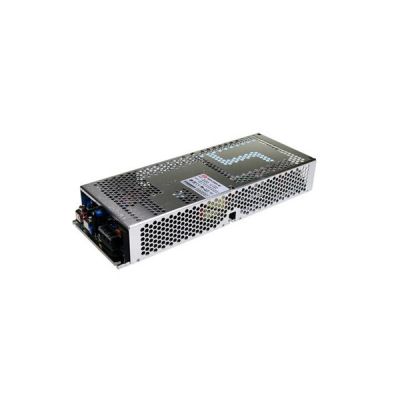

Meanwell PHP-3500-HV Series is a 3500W single-output slim type power supply. The entire series is designed 60mm low profile. By adopting the full range 90~ 264V AC input, it provides an output voltage line of 115V, 230V and 380VDC. PHP-3500-HV can be applied in various industries that require high-voltage output applications. The fanless design could be used with water cooling and conduction heat dissipation. In addition to the high efficiency up to 96%, the whole series operates from-30 ℃~ +70℃ under water cooling. Moreover, the output voltage can be adjusted in three ways, including the built-in variable resistance method, through the programmable PV/PC function, the output voltage and current can be adjusted arbitrarily, or through digital communication, such as CANBus/PMBus, etc. Apart from them, PHP-3500-HV has the complete protection functions and 2G anti-vibration capability, and complies with the international safety regulations such as TUV BS EN/EN62368-1, UL62368-1, and design refers to BS EN/EN61558-1 and BS EN/EN60335-1. Considering its powerful performance, high reliability, and long lifespan, Meanwell PHP-3500-HV Series serves as a high performance power supply solution for various industrial and DC centralized bus applications.

PHP-3500-HV Meanwell PHP-3500-HV price and datasheet YCICT

Meanwell PHP-3500-HV Series Encoding

PHP Series Name
3500 Rated wattage
380 Output Voltage ( 115/230/380V)
Type Communication protocol
Blank PMBus Protocol
CAN CANBus  Protocol

Meanwell PHP-3500-HV Series Model Specifications

Model PHP-3500-115 PHP-3500-230 PHP-3500-380
Output DC VOLTAGE (Factory default) 115V 230V 380V
CURRENT (Factory default) 25.2A 15.2A 9.2A
RATED POWER Max. 26.3A 16.1A 10.5A
POWER (Factory default) 2898W 3500W 3500W
RATED POWER(Max.) 3500W 3500W 3500W
RIPPLE & NOISE (max.)  1.15Vp-p 2.3Vp-p 3.8Vp-p
VOLTAGE ADJ. RANGE By built-in potentiometer, SVR
110-160V 170-260V 260-400V
VOLTAGE TOLERANCE ±1% ±1% ±1%
LINE REGUL ATION ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 2000ms, 60ms/230VAC at full load 2500ms, 60ms/115VAC at 60% load
HOLD UP TIME (Typ.) 16ms/230VAC at 75% load 10ms/230VAC at full load 10ms/115VAC at 60% load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>=0.95/230VAC PF>=0.95/115 VAC at full load
EFFICIENCY (Typ.)  95.00% 95.50% 96.00%
AC CURRENT (Typ.) 20A/230VAC 21A/115VAC
INRUSH CURRENT (Typ. ) Cold start 80A/230VAC 40A/115VAC
LEAKAGE CURR ENT 2mA / 240VAC
PROTECTION OVERLOAD 105 ~ 115% rated current
Protection type : Constant current limiting, shut down O/P voltage after 5 sec.After O/P voltage falls, re-power on to recover
SHORT CIRCUIT  Protection type : Constant current limiting, unit will shut down after 5 sec, re-power on to recover
OVER VOLTAGE 168 ~ 200V 273 ~ 320V 413 ~ 460V
Protection type :Shut down O/P voltage,re-power on to recover
OVER TEMPERATURE Protection type :Shut down O/P voltage, recovers automatically after temperature goes down
FUNCTION OUTPUT VOLTAGE PROGRAMMABLE(PV) Adjustment of output voltage is allowable to 50~120% of nominal output voltage.
OUTPUT CURRENT PROGRAMMABLE(PC) Adjustment of constant current level is allowable to 20 ~ 100% of rated current
REMOTE ON/OFF CONTROL Power ON : Short circuit Power OFF : Open circuit
AUXILIARY POWER 12V@0.5A tolerance±10%, ripple 150mVp-p
DC-OK SIGNAL The TTL signal out, PSU turn on = -0.5 ~ 0.5V ; PSU turn off = 3.5 ~ 5.5V. Please refer to the Function Manual
ENVIRONMENT WORKING TEMP -30 ~ +70(Refer to “Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved ; design refers to BS EN/EN61558-1, BS EN/EN60335-1
WITHSTAND VOLTAGE I/P-O/P:6KVDC I/P-FG:4KVDC O/P-FG:4KVDC
ISOLATION RESISTANCE I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25/ 70%RH
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) Class B
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-12 -----
Voltage Flicker BS EN/EN61000-3-3 -----
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3, 8KV air ; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-6-2 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods,>95% interruptions 250 periods
Others MTBF 192.1K hrs min. 63.9Khrs MIL-HDBK-217F (25)
DIMENSION 576.5K hrs min. Telcordia SR-332 (Bellcore) ; 63.9K hrs min. MIL-HDBK-217F (25)
PACKING 4.07Kg;4pcs/16.28Kg/2.46CUFT

Meanwell PHP-3500-HV Series Features

l  High voltage output (115/230/380V DC)

l  Slim and Low profile (60mm)

l  Fanless design with water or conduction cooling

l  Active PFC design and efficiency up to 96%

l  Built-in PMBus communication protocol, C ANbus optional

l  Output voltage and constant current level programmable

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Built-in remote ON/OFF control and DC-OK active signal

l  Optional water-cooling plate for quick installation

l  OVC Ⅲoperating altitude up to 2000 meter

l  LED indicator for power on

l  5 years warranty

Meanwell PHP-3500-HV Series Features

Meanwell PHP-3500-HV Series Applications

l  Industrial automation machinery

l  Industrial control system

l  Mechanical and electrical equipment

l  Electronic instruments, equipment

l  Laser equipment

l  Charging system

l  Electrolysis system

l  DC centralized bus

Meanwell PHP-3500-HV Series Applications

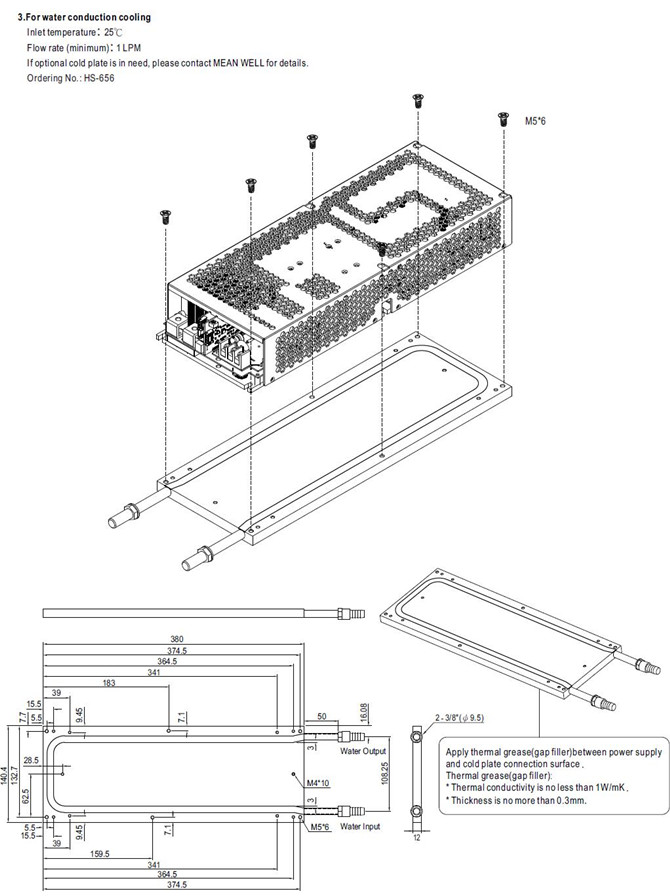

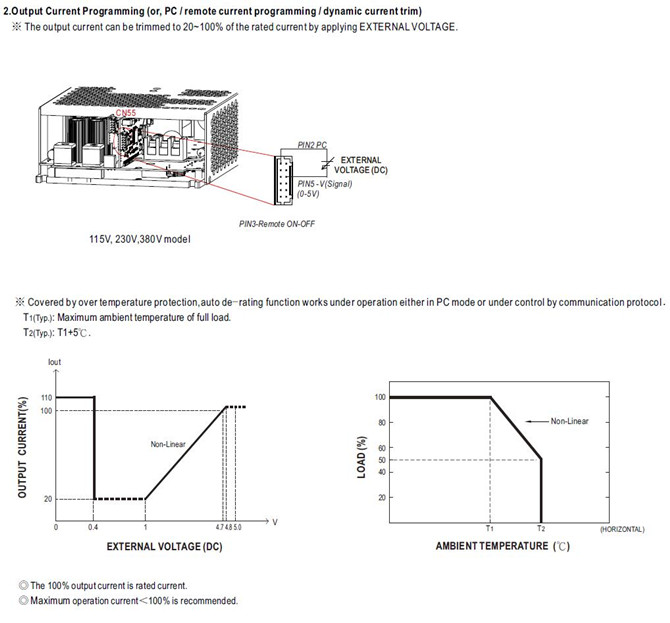

Meanwell PHP-3500-HV Series Mechanical Diagram

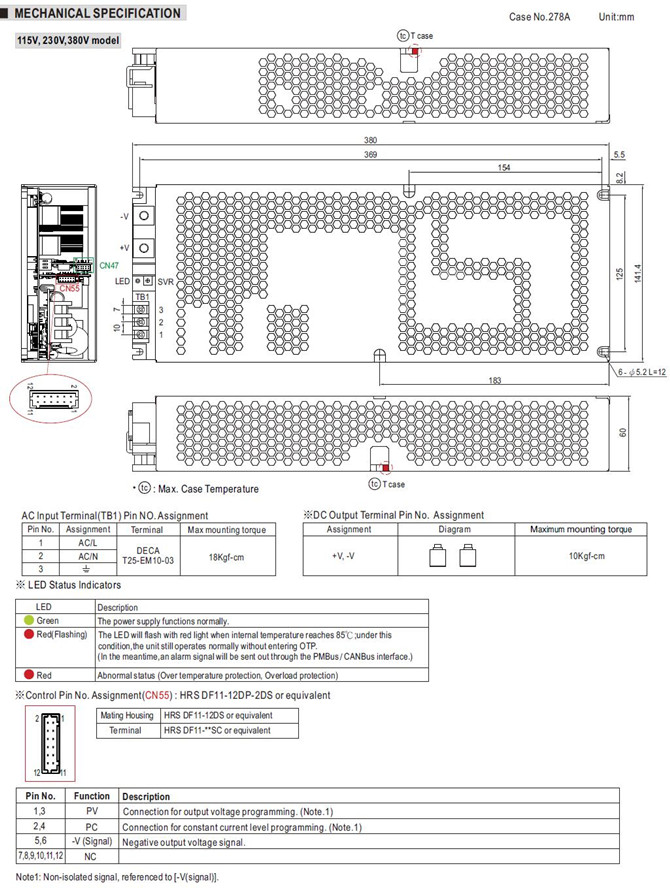

Meanwell PHP-3500-HV Series Mechanical Diagram

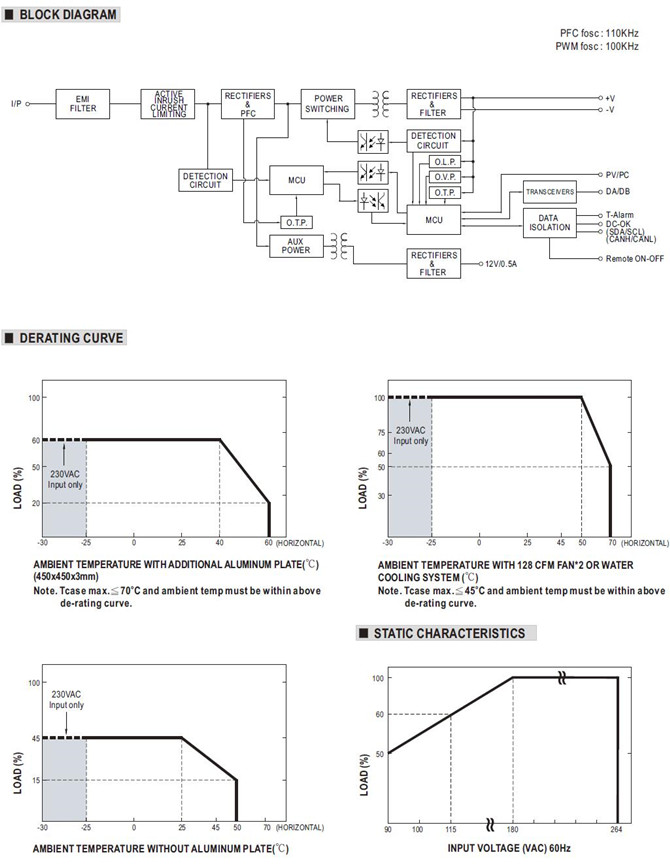

Meanwell PHP-3500-HV Series Mechanical Diagram

Meanwell PHP-3500-HV Series Mechanical Diagram

Meanwell PHP-3500-HV Series Mechanical Diagram
