PHP-3500-380
1155.67
Details

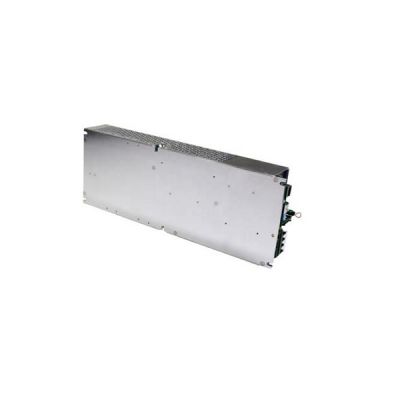

Meanwell PHP-3500-HV-380 is a 3500W single-output slim type power supply with 380V9.2A10.5A3500W3500W3.8Vp-p260-400V. The item is designed 60mm low profile. By adopting the full range 90~ 264V AC input, it offers an output voltage of 380V VDC. At the same time, PHP-3500-HV-380 is able to be applied in various industries that need high-voltage output applications. The fanless design is used with water cooling and conduction heat dissipation. Except for the high efficiency up to 96%, it works from-30 ℃~ +70℃ under water cooling. The output voltage can be adjusted in three ways, including the built-in variable resistance method, through the programmable PV/PC function, the output voltage and current can be adjusted arbitrarily, or through digital communication, such as CANBus/PMBus, etc. Besides them, PHP-3500-HV-380 supplies the complete protection functions and 2G anti-vibration capability, and also conforms with the international safety regulations such as TUV BS EN/EN62368-1, UL62368-1, and design refers to BS EN/EN61558-1 and BS EN/EN60335-1. In light of its powerful performance, high reliability, and long lifespan, Meanwell PHP-3500-HV-380 serves as a high performance power supply solution for various industrial and DC centralized bus applications.
Meanwell PHP-3500-HV-380 Encoding
| PHP | Series Name |
| 3500 | Rated wattage |
| 380 | Output Voltage ( 115/230/380V) |
| Type | Communication protocol |
| Blank | PMBus Protocol |
| CAN | CANBus Protocol |
Meanwell PHP-3500-HV-380 Specifications
| Model | PHP-3500-380 | |
| Output | DC VOLTAGE (Factory default) | 380V |
| CURRENT (Factory default) | 9.2A | |
| RATED POWER Max. | 10.5A | |
| POWER (Factory default) | 3500W | |
| RATED POWER(Max.) | 3500W | |
| RIPPLE & NOISE (max.) | 3.8Vp-p | |
| VOLTAGE ADJ. RANGE | 260-400V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 2000ms, 60ms/230VAC at full load 2500ms, 60ms/115VAC at 60% load | |
| HOLD UP TIME (Typ.) | 16ms/230VAC at 75% load 10ms/230VAC at full load 10ms/115VAC at 60% load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.95/230VAC PF>=0.95/115 VAC at full load | |
| EFFICIENCY (Typ.) | 96.00% | |
| AC CURRENT (Typ.) | 20A/230VAC 21A/115VAC | |
| INRUSH CURRENT (Typ. ) | Cold start 80A/230VAC 40A/115VAC | |
| LEAKAGE CURR ENT | 2mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 115% rated current |
| Protection type : Constant current limiting, shut down O/P voltage after 5 sec.After O/P voltage falls, re-power on to recover | ||
| SHORT CIRCUIT | Protection type : Constant current limiting, unit will shut down after 5 sec, re-power on to recover | |
| OVER VOLTAGE | 413 ~ 460V | |
| Protection type :Shut down O/P voltage,re-power on to recover | ||
| OVER TEMPERATURE | Protection type :Shut down O/P voltage, recovers automatically after temperature goes down | |
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 50~120% of nominal output voltage. |
| OUTPUT CURRENT PROGRAMMABLE(PC) | Adjustment of constant current level is allowable to 20 ~ 100% of rated current | |
| REMOTE ON/OFF CONTROL | Power ON : Short circuit Power OFF : Open circuit | |
| AUXILIARY POWER | 12V@0.5A tolerance±10%, ripple 150mVp-p | |
| DC-OK SIGNAL | The TTL signal out, PSU turn on = -0.5 ~ 0.5V ; PSU turn off = 3.5 ~ 5.5V. Please refer to the Function Manual | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to “Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved ; design refers to BS EN/EN61558-1, BS EN/EN60335-1 |
| WITHSTAND VOLTAGE | I/P-O/P:6KVDC I/P-FG:4KVDC O/P-FG:4KVDC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/ 70%RH | |
| Others | MTBF | 192.1K hrs min. 63.9Khrs MIL-HDBK-217F (25℃) |
| DIMENSION | 576.5K hrs min. Telcordia SR-332 (Bellcore) ; 63.9K hrs min. MIL-HDBK-217F (25℃) | |
| PACKING | 4.07Kg;4pcs/16.28Kg/2.46CUFT | |
Meanwell PHP-3500-HV-380 Features
l 5 years warranty
l High voltage output
l LED indicator for power on
l Slim and Low profile (60mm)
l OVC Ⅲoperating altitude up to 2000 meter
l Active PFC design and efficiency up to 96%
l Built-in remote ON/OFF control and DC-OK active signal
l Optional water-cooling plate for quick installation
l Fanless design with water or conduction cooling
l Built-in PMBus communication protocol, C ANbus optional
l Output voltage and constant current level programmable
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell PHP-3500-HV-380 Applications
l Laser equipment
l Charging system
l Electrolysis system
l DC centralized bus
l Industrial automation machinery
l Industrial control system
l Mechanical and electrical equipment
l Electronic instruments, equipment
Meanwell PHP-3500-HV-380 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
Custom Tab
