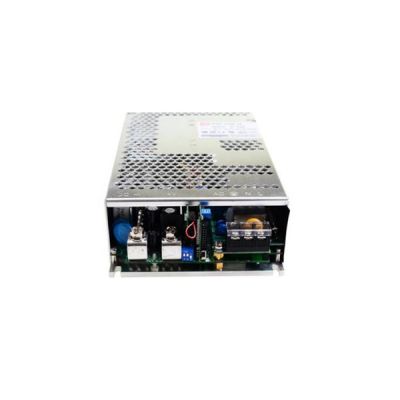

PHP-3500-24
1202.58
Details
Meanwell PHP-3500-24 is a 3500W single-output slim type power supply with 24V145A3480W300 mVp-p24-28.8V. the product is designed 60mm low profile. By adopting the full range 90~264VAC input, it provides an output voltage of 24V. Apart from the high efficiency up to 96%, PHP-3500-24 could work from -30℃~ +70℃ under air convection without fan. Compared with the traditional power supply using fan cooling, there is neither fan noise nor the problem of power failure caused by fan failure, which greatly improves the reliability of the power supply. Moreover, PHP-3500-24 has built-in PMBus communication protocol and optional CANBus communication protocol. Combined with Meanwell HMI and the built-in digital controller, the electrical parameters can be monitored synchronously to meet the client's requirements for power management. Additionally, PHP-3500-24 provides the complete protection functions and 2G anti-vibration capability and supplied with automatic load shedding, remote power on/off control, auxiliary power output, active current sharing design and built-in ORing field effect crystal to support output parallel connection. Meanwhile, it complies with the international safety regulations such as TUV BS EN/EN62368-1, UL .62368-1, and design refers to BS EN/EN61 558-1 and BS EN/EN60335-1. Thanks to its powerful performance, high reliability, and long lifespan, Meanwell PHP-3500-24 functions as a high performance power supply solution for various industrial applications such as industrial-grade laser process equipment, solid-state microwave communication, food processing equipment, battery charging equipment and other applications that require high-power power supplies (above 10,000 watts).
Meanwell PHP-3500-24 Encoding
| PHP | Series Name |
| 3500 | Rated wattage |
| 24 | Output Voltage |
| Type | Communication protocol option |
| Blank | PMBus Protocol |
| CAN | CANBus Protocol |
Meanwell PHP-3500-24 Specifications
| Model | PHP-3500-24 | |
| Output | DC VOLTAGE | 24V |
| RATED CURRENT | 145A | |
| RATED POWER | 3480W | |
| RIPPLE & NOISE (max.) | 300 mVp-p | |
| VOLTAGE TOLERANCE | By built-in potentiometer, SVR | |
| 24-28.8V | ||
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 60ms/230VAC 1500ms, 60ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 16ms/230VAC at 75% load 10ms/230VAC at full load ; 16ms/115VAC at 75% load 10ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.95/230VAC PF>=0.99/115 VAC at full load | |
| EFFICIENCY (Typ.) | 95.00% | |
| AC CURRENT (Typ.) | 20A/115VAC 20A/230VAC | |
| INRUSH CURRENT (Typ. ) | Cold start 30A/115VAC 80A/230VAC | |
| LEAKAGE CURR ENT | 2mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 115% rated current |
| Protection type : Constant current limiting, shut down O/P voltage after 5 sec. After O/P voltage falls, re-power on to recover | ||
| OVER VOLTAGE | 30 ~ 36V | |
| Protection type :Shut down O/P voltage,re-power on to recover | ||
| OVER TEMPERATURE | Protection type :Shut down O/P voltage, recovers automatically after temperature goes down | |
| FUNCTION | OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 50 ~ 120% of nominal output voltage. Please refer to the Function Manual. |
| OUTPUT CURRENT PROGRAMMABLE(PC) | Adjustment of constant current level is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual | |
| REMOTE ON/OFF CONTROL | Power ON : Short circuit Power OFF : Open circuit | |
| AUXILIARY POWER | 12V at 0.5A tolerance±10%, ripple 150mVp-p | |
| DC-OK SIGNAL | The TTL signal out, PSU turn on = -0.5 ~ 0.5V ; PSU turn off = 3.5 ~ 5.5V. Please refer to the Function Manual | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃Baseplate temperature (Refer to “Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CAN/CSA C22.2 No. 62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved ; design refers to BS EN/EN61558-1, BS EN/EN60335-1 |
| WITHSTAND VOLTAGE | I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/ 70%RH | |
| ISOLATION RESISTANCE | UL62368-1, CAN/CSA C22.2 No. 62368-1,TUV BS EN/EN62368-1, | |
| Others | MTBF | 544.8K hrs min. Telcordia SR-332 (Bellcore) ; 56.3K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 380*141.4*60mm (L*W*H) | |
| PACKING | 4.5Kg;4pcs/19Kg/2.46CUFT | |
Meanwell PHP-3500-24 Features
l 5 years warranty
l DC OK active signal
l LED indicator for power on
l High efficiency up to 96%
l Slim and Low profile (60mm)
l Built-in active PFC function
l -30~+70 ℃ working temperature
l Built-in remote ON-OFF control
l Fanless design, cooling by water conduction

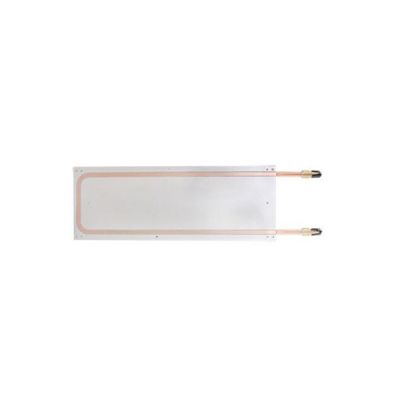

l Optional cold plate for quick implementation
l OVCⅢOperating altitude up to 3000 meter
l Active current sharing up to 14000W (3+1)
l Built-in PMBus communication protocol, CANbus optional
l Output voltage and constant current level programmable
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell PHP-3500-24 Applications
l Industrial automation machinery
l Industrial control system
l Mechanical and electrical equipment
l Electronic instruments, equipment or apparatus
l Household appliances

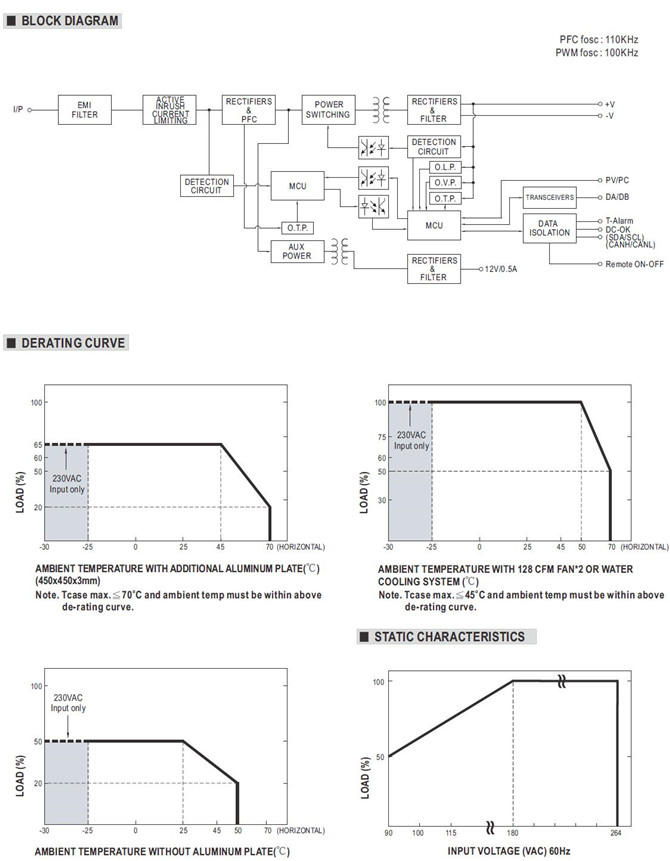

Meanwell PHP-3500-24 Mechanical Diagram
