PFC-450
219.34
PFC-450

PFC-450

$219.34

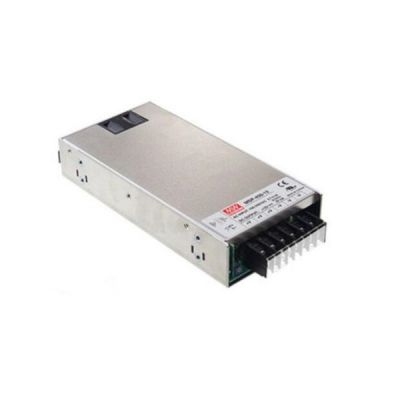

Meanwell 450W/650W/1000W Modular Power

- +
Availability:In stock
SKU Meanwell PFC-450
Brand Meanwell
Details

Meanwell PFC-450 Specifications

Model PFC-450 PFC-650 PFC-1000
INPUT VOLTAGE RANGE 85~264VAC 120~370VDC
FREQUENCY RANG  47~63Hz
EPOWER FACTOR PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY 82.5% typ. 84% typ. 84% typ.
AC CURRENT 6.3A/115VAC 3.2A/230VAC 9A/115VAC 4.5A/230VAC 13.5A/115VAC 6.7A/230VAC
IN RUSH CURRENT 25A/115VAC 40A/230VAC 30A/115VAC 50A/230VAC 20A/115VAC 40A/230VAC
LEAKAGE CURRENT <1.5mA/240VAC
OUTPUT TOTAL OUTPUT POWER 450W max. 650W max. 1000W max.
PROTECTION OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FAN ALARM Output shutdown when FAN is malfunction
FUNCTION REMOTE CONTROL RC+/RC-: 0 ~ 0.8V or Short, Power ON RC+/RC-: 4 ~ 12V or Open, Power OFF
AUXILIARY POWER (AUX) 12V at 0.1A (only for Remote ON/OFF Control)
ENVIRONMENT WORKING TEMP. -20 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-1, light industry level, criteria A, EAC TP TC 020
Others MTBF 2257.3K hrs min. Telcordia SR-332 (Bellcore) ; 225.9K hrs min. MIL-HDBK-217F (25) (450W)
2135.5K hrs min. Telcordia SR-332 (Bellcore) ; 292K hrs min. MIL-HDBK-217F (25
) (650W)
1793K hrs min. Telcordia SR-332 (Bellcore) ; 239.8K hrs min. MIL-HDBK-217F (25
) (1000W)
DIMENSION 254*127*63.5mm (L*W*H) 278*127*63.5mm (L*W*H) 278*177.8*63.5mm (L*W*H)
PACKING 1.8Kg(typ.); 6pcs/11.8Kg/1.25CUFT 2.16Kg(typ.); 6pcs/14Kg/1.34CUFT 3Kg(typ.); 6pcs/19Kg/1.74CUFT

Meanwell PFC-450 Features

l  Various output configuration is selectable

l  Built in active PFC, PF>0.95

l  Universal AC input/ full range

l  Remote Control on every individual output module

l  Remote Sense on every single output module (MS-75, 150,210,300,360)

l  Remote margin/V-Program (MS-210/360)

l  Built in parallel function (MS-2 10/300/360)

l  Protections: Short circuit/Overload/Over voltage for all output modules

l  Additional 12V/0.1A auxiliary output for remote control

l  Cooling by built-in DC fan with fan alarm function

l  3 years warranty
