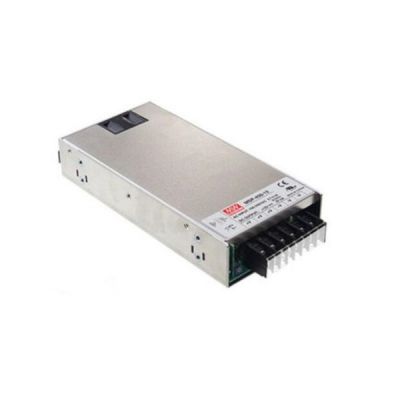

PFC-1000
223.27
Details
Meanwell PFC-1000 Specifications
| Model | PFC-450 | PFC-650 | PFC-1000 | |
| INPUT | VOLTAGE RANGE | 85~264VAC 120~370VDC | ||
| FREQUENCY RANG | 47~63Hz | |||
| EPOWER FACTOR | PF>0.95/230VAC PF>0.98/115VAC at full load | |||
| EFFICIENCY | 82.5% typ. | 84% typ. | 84% typ. | |
| AC CURRENT | 6.3A/115VAC 3.2A/230VAC | 9A/115VAC 4.5A/230VAC | 13.5A/115VAC 6.7A/230VAC | |
| IN RUSH CURRENT | 25A/115VAC 40A/230VAC | 30A/115VAC 50A/230VAC | 20A/115VAC 40A/230VAC | |
| LEAKAGE CURRENT | <1.5mA/240VAC | |||
| OUTPUT | TOTAL OUTPUT POWER | 450W max. | 650W max. | 1000W max. |
| PROTECTION | OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||
| FAN ALARM | Output shutdown when FAN is malfunction | |||
| FUNCTION | REMOTE CONTROL | RC+/RC-: 0 ~ 0.8V or Short, Power ON RC+/RC-: 4 ~ 12V or Open, Power OFF | ||
| AUXILIARY POWER (AUX) | 12V at 0.1A (only for Remote ON/OFF Control) | |||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃(Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-1, light industry level, criteria A, EAC TP TC 020 | |||
| Others | MTBF | 2257.3K hrs min. Telcordia SR-332 (Bellcore) ; 225.9K hrs min. MIL-HDBK-217F (25℃) (450W) 2135.5K hrs min. Telcordia SR-332 (Bellcore) ; 292K hrs min. MIL-HDBK-217F (25℃) (650W) 1793K hrs min. Telcordia SR-332 (Bellcore) ; 239.8K hrs min. MIL-HDBK-217F (25℃) (1000W) |
||
| DIMENSION | 254*127*63.5mm (L*W*H) | 278*127*63.5mm (L*W*H) | 278*177.8*63.5mm (L*W*H) | |
| PACKING | 1.8Kg(typ.); 6pcs/11.8Kg/1.25CUFT | 2.16Kg(typ.); 6pcs/14Kg/1.34CUFT | 3Kg(typ.); 6pcs/19Kg/1.74CUFT | |
Meanwell PFC-1000 Features
l 3 years warrant
l Built in active PFC, PF>0.95
l Universal AC input/ full range
l Various output configuration is selectable
l Remote Control on every individual output module
l Remote margin/V-Program (MS-210/360)
l Built in parallel function (MS-21 0/300/360)
l Protections: Short circuit/Overload/Over voltage for all output modules
l Additional 12V/0.1A auxiliary output for remote control
l Cooling by built-in DC fan with fan alarm function
l Remote Sense on every single output module (MS-75,150,210,300,360)
