PD-65A
14.01
Details

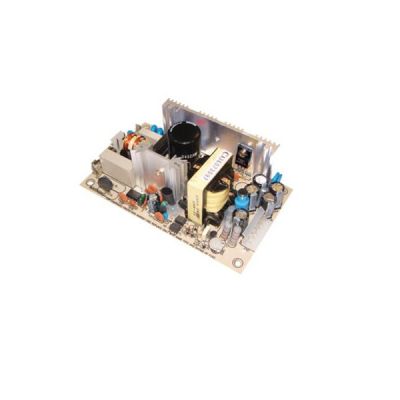

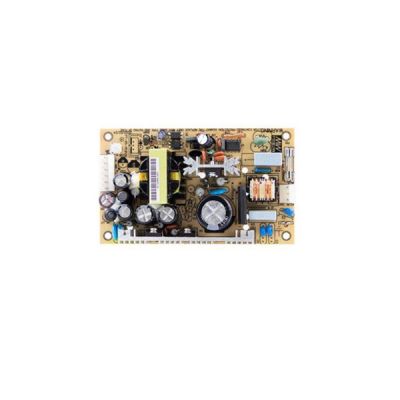

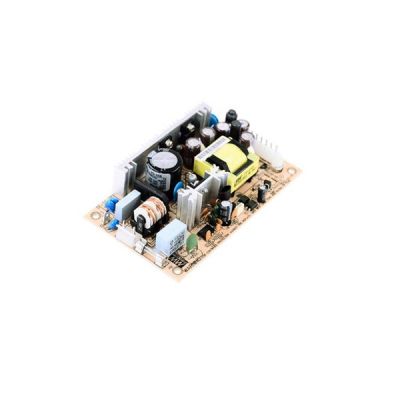

Meanwell PD-65A is 65W Dual Output Switching Power Supply with CH1CH25V12V5.5A2.8A0.4-7A0.2-3.2A61.1W50mVp-p120mVp-pCH1:4.75 ~ 5.5V. The product has Universal AC input/Full range and Fixed switching frequency at 65KHz. Since the working efficiency could reach up to 81% and work from -10 ℃through 60 ℃ under air convection without fan, it is able to satisfy the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Moreover, PD-65A offers the various protections types such as Short circuit, Overload and Over voltage. Apart from them, it has extremely low leakage current down below 0.5mA, and 100% full load burn-in test, Due to its low cost, high efficiency and high reliability, Meanwell PD-65A is a high price-to-performance power supply solution for various industrial applications in harsh working environment.
Meanwell PD-65A Specifcations
| Model | PD-65A | ||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 |
| DC VOLTAGE | 5V | 12V | |
| RATED CURRENT | 5.5A | 2.8A | |
| CURRENT RANGE | 0.4-7A | 0.2-3.2A | |
| RATED POWER | 61.1W | ||
| OUTPUT POWER (max.) | Rated output power for convection; 72W with 18CFM min. Forced air | ||
| RIPPLE & NOISE (max.) | 50mVp-p | 120mVp-p | |
| VOLTAGE ADJ. RANGE | CH1:4.75 ~ 5.5V | ||
| VOLTAGE TOL ERANCE | ±4.0% | ±7.0% | |
| LINE REGULATION | ±1.0% | ±2.0% | |
| LOAD REGUL .ATION | ±3.0% | ±4.0% | |
| SETUP, RISE TIME | 800ms, 20ms at full load | ||
| HOLD UP TIME (Typ.) | 60ms at full load | ||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~370VDC | |
| FREQUENCY RANGE | 47 ~ 440Hz | ||
| EFFICIENCY (Typ.) | 78.00% | ||
| AC CURRENT (Typ.) | 1.5A/115VAC 0.9A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 20A/115VAC 40A/230VAC | ||
| LEAKAGE CURRENT | <0.75mA | ||
| PROTECTION | OVERL OAD | 73 ~ 105W rated output | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | CH1: 5.75 ~ 6.75VDC on CH1 | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃(Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.04%/℃(0 ~ 50℃) on +5V output | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 | ||
| OTHERS | MTBF | 414.8K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 127*76*42mm (L*W*H) | ||
| PACKING | 0.24Kg; 54pcs/15Kg/1.28CUFT | ||
Meanwell PD-65A Features
l 2 years warranty
l 100% full load burn-in test
l Fixed switching frequency at 65KHz
l Universal AC input/Full range
l Low leakage current<0.5mA
l Protections: Short circuit/Overload/Over voltage
l Cooling by free air convection
Meanwell PD-65A Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
Custom Tab
