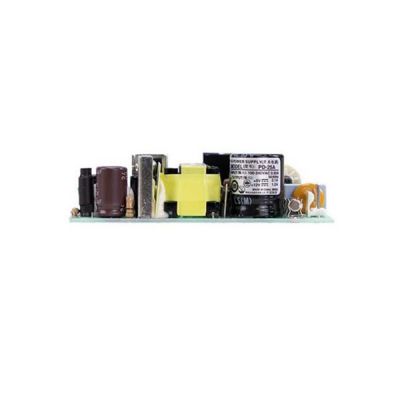

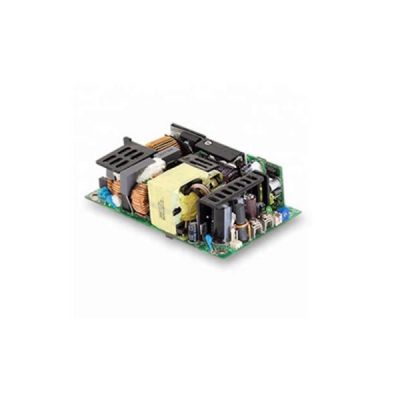

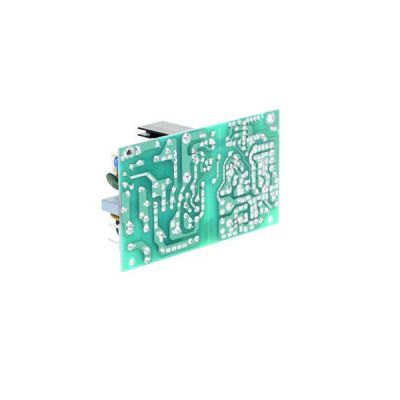

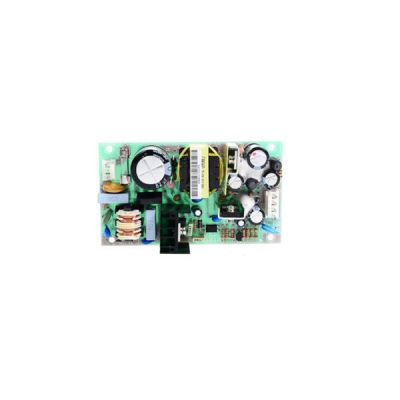

PD-2515
14.27
Details
Meanwell PD-2515 is 25W Dual Output Switching Power Supply with CH1CH215V-15V0.8A0.8A0.1-1A 0.1-1A24W50mVp-p50mVp-p. The unit outstands with Universal AC input/Full range and Fixed switching frequency at 100KHz. The working efficiency can go up to 75% and operate well from -10 ℃through 60 ℃ under air convection without fan. Besides them, PD-2515 supplies the complete protections modes such as Short circuit, Overload, Over voltage and Over temperature. Moreover, the product satisfies the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1(for PD-25A only). As a result of its low cost, high efficiency and high reliability, Meanwell PD-2515 is a high price-to-performance power supply solution for various industrial applications in harsh working environment.
Meanwell PD-2515 Specifications
| Model | PD-2515 | ||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 |
| DC VOLTAGE | 15V | -15V | |
| RATED CURRENT | 0.8A | 0.8A | |
| CURRENT RANGE | 0.1-1A | 0.1-1A | |
| RATED POWER | 24W | ||
| RIPPLE & NOISE (max.) | 50mVp-p | 50mVp-p | |
| VOLTAGE TOL ERANCE | ±4.0% | ±4.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | |
| LOAD REGUL .ATION | ±3.0% | ±3.0% | |
| SETUP, RISE TIME | 250ms, 50ms/230VAC 250ms, 30ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 100ms/230VAC 16ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| EFFICIENCY (Typ.) | 75.00% | ||
| AC CURRENT (Typ.) | 0.65A/115VAC 0.4A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 32A | ||
| LEAKAGE CURRENT | <0.5mA / 240VAC | ||
| PROTECTION | OVERL OAD | Above 105% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 17.3-20.3V | -17.3--20.3V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | |||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃(Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) ON CH1 output | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1(for PD-25A only) approved | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, GB9254 Class B, GB17625.1 | ||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5, light industry level, criteria A, EAC TP TC 020 | ||
| OTHERS | MTBF | 507.9Khrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 107*61*28mm (L*W*H) | ||
| PACKING | 0.15Kg; 96pcs/15.9Kg/1.2CUFT | ||
Meanwell PD-2515 Features
l 100% full load burn-in test
l Fixed switching frequency at 100KHz
l Low cost
l High reliability
l 2 years warranty
l Universal AC input/Full range
l Low leakage current<0.5mA
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Cooling by free air convection
Meanwell PD-2515 Mechanical Diagram
