PD-25
12.37
Details

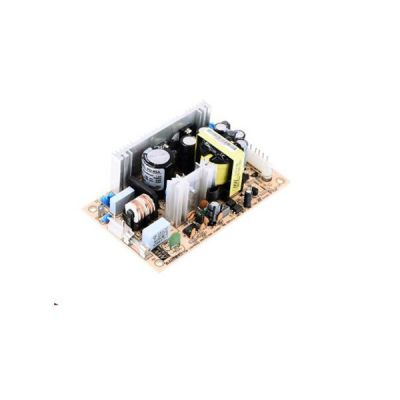

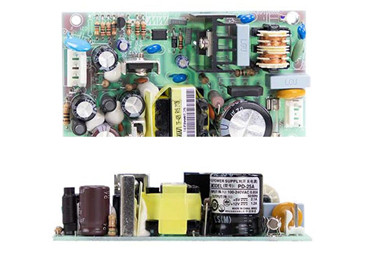

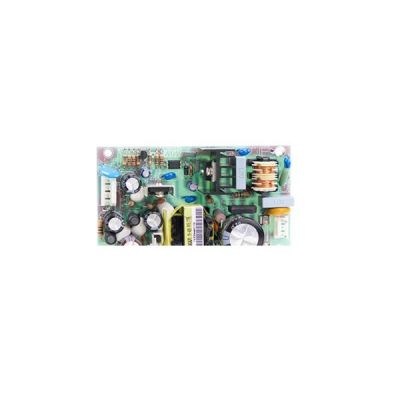

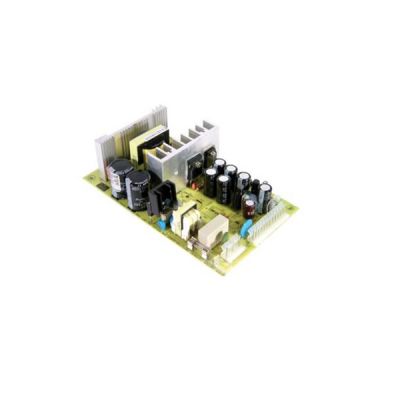

Meanwell PD-25 Series is 25W Dual Output Switching Power Supply. The entire series outstands with Universal AC input/Full range and Fixed switching frequency at 100KHz. The working efficiency reaches up to 75% and operate from -10 ℃through 60 ℃ under free air convection. Moreover, PD-25 provides the complete protections types such as Short circuit, Overload, Over voltage and Over temperature. Besides them, it complies with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1(for PD-25A only). Considering its low cost, high efficiency and high reliability, Meanwell PD-25 Series is a high price-to-performance power supply solution for various industrial applications in harsh working environment.
Meanwell PD-25 Series Model Specifications
| Model | PD-25A | PD-25B | PD-2505 | PD-2512 | PD-2515 | ||||||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH1 | CH2 | CH1 | CH2 | CH1 | CH2 | CH1 | CH2 |
| DC VOLTAGE | 5V | 12V | 5V | 24V | 5V | -5V | 12V | -12V | 15V | -15V | |
| RATED CURRENT | 2.1A | 1.2A | 1.2A | 0.8A | 2.5A | 2.5A | 1A | 1A | 0.8A | 0.8A | |
| CURRENT RANGE | 0.2-2.5A | 0.1-1.5A | 0.2-2A | 0.1-1A | 0.1-3A | 0.1-2.5A | 0.1-1.2A | 0.1-1.2A | 0.1-1A | 0.1-1A | |
| RATED POWER | 24.9W | 25.2W | 25W | 24W | 24W | ||||||
| RIPPLE & NOISE (max.) | 50mVp-p | 150mVp-p | 50mVp-p | 200mVp-p | 50mVp-p | 50mVp-p | 50mVp-p | 50mVp-p | 50mVp-p | 50mVp-p | |
| VOLTAGE TOL ERANCE | ±2.0% | ±6.0% | ±2.0% | ±6.0% | ±6.0% | ±6.0% | ±4.0% | ±4.0% | ±4.0% | ±4.0% | |
| LINE REGULATION | ±0.5% | ±2.0% | ±0.5% | ±2.0% | ±1.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGUL .ATION | ±1.0% | ±4.0% | ±1.0% | ±4.0% | ±4.0% | ±4.0% | ±3.0% | ±3.0% | ±3.0% | ±3.0% | |
| SETUP, RISE TIME | 250ms, 50ms/230VAC 250ms, 30ms/115VAC at full load | ||||||||||
| HOLD UP TIME (Typ.) | 100ms/230VAC 16ms/115VAC at full load | ||||||||||
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | |||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||||
| EFFICIENCY (Typ.) | 71.00% | 77.00% | 73.00% | 74.00% | 75.00% | ||||||
| AC CURRENT (Typ.) | 0.65A/115VAC 0.4A/230VAC | ||||||||||
| INRUSH CURRENT(Typ.) | COLD START 32A | ||||||||||
| LEAKAGE CURRENT | <0.5mA / 240VAC | ||||||||||
| PROTECTION | OVERL OAD | Above 105% rated output power | |||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||||
| OVER VOLTAGE | 5.75-6.75V | 13.8-16.2V | 5.75-6.75V | 27.6-32.4V | 5.75-6.75V | -5.75--6.75V | 13.8-16.2V | -13.8--16.2V | 17.3-20.3V | -17.3--20.3V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | |||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃(Refer to "Derating Curve") | |||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | ||||||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) ON CH1 output | ||||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1(for PD-25A only) approved | |||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, GB9254 Class B, GB17625.1 | ||||||||||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5, light industry level, criteria A, EAC TP TC 020 | ||||||||||
| OTHERS | MTBF | 507.9Khrs min. MIL-HDBK-217F (25℃) | |||||||||
| DIMENSION | 107*61*28mm (L*W*H) | ||||||||||
| PACKING | 0.15Kg; 96pcs/15.9Kg/1.2CUFT | ||||||||||
Meanwell PD-25 Series Features
l Universal AC input/Full range
l Low leakage current<0.5mA
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Cooling by free air convection
l 100% full load burn-in test
l Fixed switching frequency at 100KHz
l Low cost
l High reliability
l 2 years warranty
Meanwell PD-25 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
