OWA-90U-54
29.95

OWA-90U-54

$29.95

Meanwell 90W Single Output Moistureproof Adaptor with 54V32.4-54V1.67A90.18W350mVp-p±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell OWA-90U-54
Brand Meanwell
Details

Meanwell OWA-90U-54 is a 90W single-output external LED power supply with 54V32.4-54V1.67A90.18W350mVp-p. The item pairs the North American type of AC plug and prevailing DC connectors. At the same time, OWA-90U-54 works like an adaptor, simplifying the connection with LED lighting fixtures without extra wiring efforts. The model is certified with the UL LISTED for dry and damp locations. As a class ll (without earth pin) design, the enclosure is a 94V-0 flame retardant plastic case. The interior is also fully potted with silicone, which enhances the heat dissipation. The efficiency reaches high up to 91%, cooled by free air convection. The working temperature ranges from -40℃ to +70℃. As a result of its longevity, high efficiency and excellent reliability, Meanwell OWA-90U-54 serves as an ideally suitable solution for harsh environments.

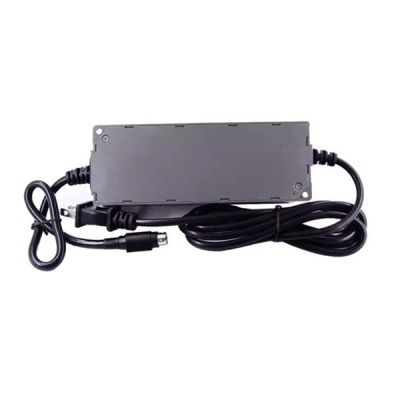

Meanwell OWA-90U-54 price and specs 90W Single Output AC/DC Adaptor 1.67a OWA-90U-12 15 20 24 30 36 42 48 54 YCICT

Meanwell OWA-90U-54 Encoding

OWA Series Name
90 Output wattage
U North American type of AC plug
54 Output Voltage
□ DC Plug Type Blank Plug for 12-54V Power DIN 4P with fork type
Р1М: Рlug fоr 20V~ 54V оnlу, 2. 5Фх5.5Фх11 mm,с+, tunіng fоrk tуре
Optional plug type available per request

Meanwell OWA-90U-54 Specifications

ORDER NO. OWA-90U-54
OUTPUT DC VOLTAGE 54V
CONSTANT CURRENT REGION 32.4-54V
RATED CURRENT 1.67A
RATED POWER 90.18W
RIPPLE & NOISE (max.) 350mVp-p
VOLTAGE TOLERANCE ±1.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
HOLD UP TIME (Typ.) 16ms at full load 115VAC / 230VAC
SETUP, RISE, HOLD UP TIME 500ms, 80ms at 95% load 115VAC / 230VAC
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.98/115VAC, PF>0.96/230VAC at full load
TOTAL HARMONIC DISTORTION THD< 20% when output loading>=60% at 115VAC/230VAC
EFFICIENCY (Typ.) 115VAC 89.50%
EFFICIENCY (Typ.) 230VAC 91.00%
AC CURRENT (Typ.) 0.95A / 115VAC 0.5A / 230VAC
INRUSH CURRENT (Typ.) COLD START 30A (twidth=550 s measured at 50% Ipeak) at 115VAC
COLD START 60A (twidth=550 s measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VA
LEAKAGE CURRENT <0.125mA / 120VAC <0.25mA / 240VAC
PROTECTION OVER CURRENT 95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 59-66V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS Ul8750 listed, CSA C22.2 No. 250.13-12(except for 42V, 48V, 54V); IP67(for main body ) approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to FCC Part15
Others MTBF 3044.3K hrs min. Telcordia SR-332 (Bellcore) 292.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 171*63*37.5mm
PACKING 0.83Kg; 16pcs/14.3Kg/1.01CUFT

Meanwell OWA-90U-54 Features

l  Universal AC input Full range

l  Built-in active PFC function

l  Class 2 power unit (except OWA-90U-12/15)

l  High efficiency up to 91%

l  Class I power unit, no FG

l  5 years warranty

l  Fanless design, cooling by free air convection

l  No load power consumption <0.1 5W

l  Energy efficiency Level VI

l  Comply with EISA 2007 DoE and NRCan

l  UL LISTED, suitable for dry and damp locations

l  Various DC plug quick adapter accessory available

l  Protections: Short circuit/Over current/Over voltage/Over temperature

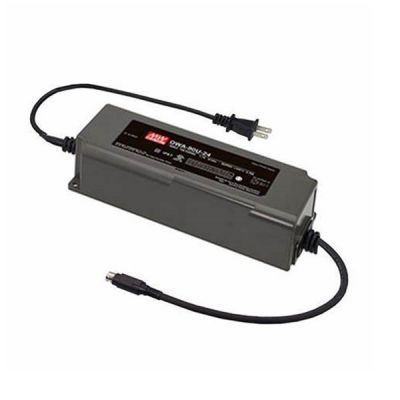

Meanwell OWA-90U-54 price and specs 90W Single Output AC/DC Adaptor 54v OWA-90U-12 15 20 24 30 36 42 48 54 YCICT

Meanwell OWA-90U-54 Applications

l  LED lighting fixture

l  LED decorative lighting

l  LED office lighting

l  General electronic products in dry or damp environment

Meanwell OWA-90U-54 Mechanical Diagram

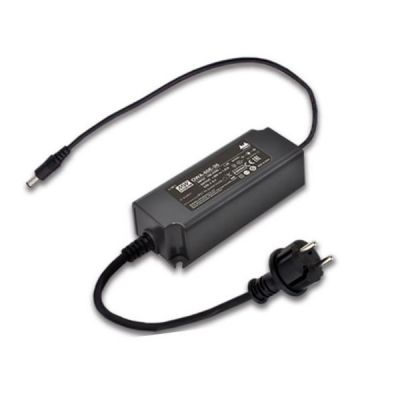

Meanwell OWA-90U-54 price and datasheet 90W Single Output AC/DC Adaptor 54v OWA-90U-12 15 20 24 30 36 42 48 54 YCICT
