DEPARTMENTS
OWA-90U-15
29.15

OWA-90U-15

$29.15

Meanwell 90W Single Output Moistureproof Adaptor with 15V9-15V6A90W150mVp-p±4.0%±0.5%±1.0%

- +
Availability:In stock
SKU Meanwell OWA-90U-15
Brand Meanwell
Details

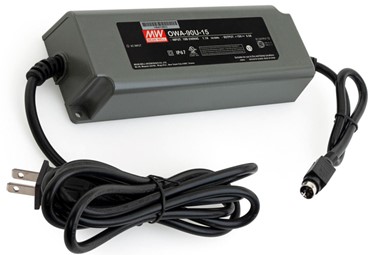

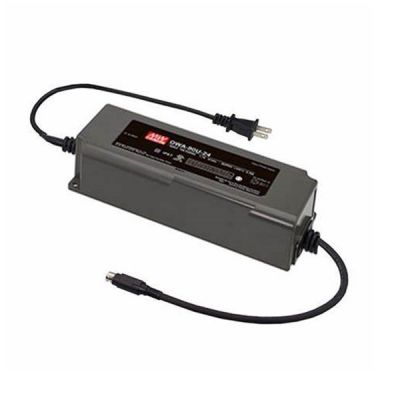

Meanwell OWA-90U-15 is a 90W single-output external LED power supply with 15V9-15V6A90W150mVp-p. The unit pairs the North American type of AC plug and prevailing DC connectors. OWA-90U-15, working like an adaptor, simplifies the connection with LED lighting fixtures without extra wiring efforts. At the same time, the model is certified with the UL LISTED for dry and damp locations. As a class ll (without earth pin) design, the enclosure of OWA-90U-15 is a 94V-0 flame retardant plastic case. The interior is fully potted with silicone, which enhances the heat dissipation. With the efficiency reaching high up to 91%, OWA-90U-15 is cooled by free air convection. Apart from them, the working temperature ranges from -40℃ to +70℃. Thanks to its longevity, high efficiency and excellent reliability, Meanwell OWA-90U-15 serves as an ideally suitable solution for harsh environments.

Meanwell OWA-90U-15 price and specs 90W Single Output AC/DC Adaptor 12V OWA-90U-12 15 20 24 30 36 42 48 54 YCICT

Meanwell OWA-90U-15 Encoding

OWA Series Name
90 Output wattage
U North American type of AC plug
15 Output Voltage
□ DC Plug Type Blank Plug for 12-54V Power DIN 4P with fork type
Р1М: Рlug fоr 20V~ 54V оnlу, 2. 5Фх5.5Фх11 mm,с+, tunіng fоrk tуре
Optional plug type available per request

Meanwell OWA-90U-15 Specifications

ORDER NO. OWA-90U-15
OUTPUT DC VOLTAGE 15V
CONSTANT CURRENT REGION 9-15V
RATED CURRENT 6A
RATED POWER 90W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE TOLERANCE ±4.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±1.0%
HOLD UP TIME (Typ.) 16ms at full load 115VAC / 230VAC
SETUP, RISE, HOLD UP TIME 500ms, 80ms at 95% load 115VAC / 230VAC
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.98/115VAC, PF>0.96/230VAC at full load
TOTAL HARMONIC DISTORTION THD< 20% when output loading>=60% at 115VAC/230VAC
EFFICIENCY (Typ.) 115VAC 89.00%
EFFICIENCY (Typ.) 230VAC 90.00%
AC CURRENT (Typ.) 0.95A / 115VAC 0.5A / 230VAC
INRUSH CURRENT (Typ.) COLD START 30A (twidth=550 s measured at 50% Ipeak) at 115VAC
COLD START 60A (twidth=550 s measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VA
LEAKAGE CURRENT <0.125mA / 120VAC <0.25mA / 240VAC
PROTECTION OVER CURRENT 95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 17.5-21V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS Ul8750 listed, CSA C22.2 No. 250.13-12(except for 42V, 48V, 54V); IP67(for main body ) approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to FCC Part15
Others MTBF 3044.3K hrs min. Telcordia SR-332 (Bellcore) 292.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 171*63*37.5mm
PACKING 0.83Kg; 16pcs/14.3Kg/1.01CUFT

Meanwell OWA-90U-15 Features

l  5 years warranty

l  Built-in active PFC function

l  Universal AC input Full range

l  High efficiency up to 91%

l  ClassⅡpower unit, no FG

l  Fanless design, cooling by free air convection

l  No load power consumption <0.1 5W

l  Energy efficiency Level VI

l  Class 2 power unit (except OWA-90U-12/15)

l  Comply with EISA 2007 DoE and NRCan

l  UL LISTED, suitable for dry and damp locations

l  Various DC plug quick adapter accessory available

l  Protections: Short circuit/Over current/Over voltage/Over temperature

Meanwell OWA-90U-15 price and specs 90W Single Output AC/DC Adaptor 15V 6a OWA-90U-12 15 20 24 30 36 42 48 54 YCICT

Meanwell OWA-90U-15 Applications

l  LED lighting fixture

l  LED decorative lighting

l  LED office lighting

l  General electronic products in dry or damp environment

Meanwell OWA-90U-15 Mechanical Diagram

Meanwell OWA-90U-15 price and datasheet 90W Single Output AC/DC Adaptor 15V 6a OWA-90U-12 15 20 24 30 36 42 48 54 YCICT
