OWA-60U
25
Details

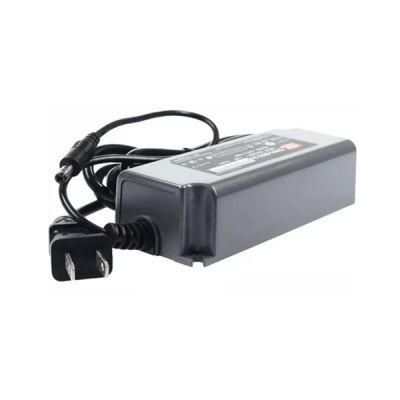

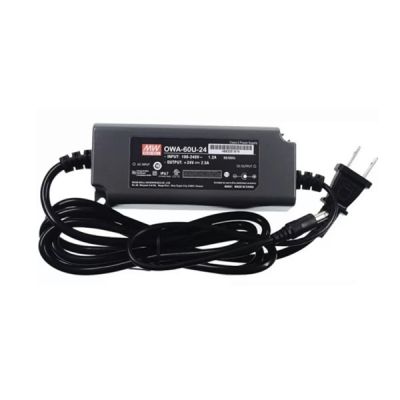

Meanwell OWA-60U Series is a 60W single-output external LED power supply. The entire series pairs the North American type of AC plug and prevailing DC connectors. At the same time, OWA-60U, working like an adaptor, simplifies the connection with LED lighting fixtures without extra wiring efforts. The product is certified with the ULLISTED for dry and damp locations. As a ClassⅡ(no FG) design, the enclosure of OWA-60U is a 94V-0 flame retardant plastic case. Additionally, the interior is fully potted with silicone which enhances the heat dissipation. With the efficiency reaching high up to 91%, OWA-60U is cooled by free air convection. Moreover, the working temperature ranges from -35℃ to +70℃. Considering its longevity, high efficiency and excellent reliability, Meanwell OWA-60U Series serves as an ideally suitable solution for harsh environments.
Meanwell OWA-60U Series Encoding
| OWA | Series Name |
| 60 | Output wattage |
| U | North American type of AC plug |
| 12 | Output Voltage |
Meanwell OWA-60U Series Model Specifications
| ORDER NO. | OWA-60U-12 | OWA-60U-15 | OWA-60U-20 | OWA-60U-24 | OWA-60U-30 | OWA-60U-36 | OWA-60U-42 | OWA-60U-48 | OWA-60U-54 | |
| OUTPUT | DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION | 6-12V | 7.5-15V | 10-20V | 12-24V | 15-30V | 18-36V | 21-42V | 24-48V | 27-54V | |
| RATED CURRENT | 5A | 4A | 3A | 2.5A | 2A | 1.67A | 1.5A | 1.25A | 1.12A | |
| RATED POWER | 60W | 60W | 60W | 60W | 60W | 60.12W | 63W | 60W | 60.48W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 250mVp-p | 250mVp-p | 350mVp-p | |
| VOLTAGE TOLERANCE | ±4.0% | ±4.0% | ±4.0% | ±3.0% | ±3.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±1.5% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| HOLD UP TIME (Typ.) | 500ms, 80ms/230VAC 1000ms, 80ms/115VAC at 95% load | |||||||||
| SETUP, RISE, HOLD UP TIME | 10ms at full load 115VAC / 230VAC | |||||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| EFFICIENCY (Typ.) 115VAC | 87.00% | 88.00% | 88.00% | 88.50% | 88.50% | 88.50% | 88.50% | 88.50% | 89.00% | |
| EFFICIENCY (Typ.) 230VAC | 88.00% | 89.00% | 89.00% | 90.00% | 90.00% | 90.00% | 90.00% | 91.00% | 91.00% | |
| AC CURRENT | 1.2A / 115VAC 0.7A / 230VAC | |||||||||
| INRUSH CURRENT (Typ.) | COLD START 35A(twidth=750 s measured at 50% Ipeak) at 115VAC COLD START 65A(twidth=750μ s measured at 50% Ipeak) at 230VAC | |||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC | |||||||||
| LEAKAGE CURRENT | <0.25mA / 240VAC | |||||||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | ||||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 14-16V | 17.5-23V | 23-27V | 28-34V | 34-40V | 41-50V | 46-54V | 53-62V | 58-66V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||||||
| ENVIRONMENT | WORKING TEMP. | -35 ~ +70℃ (Refer to "Derating Curve) | ||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL8750 listed; CSA C22.2 No.250.13-12(except for 42V,48V,54V); IP67 approved for power body | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to FCC Part15 | |||||||||
| Others | MTBF | 4386.2K hrs min. Telcordia SR-332 (Bellcore) 522.9K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 130*53*35mm | |||||||||
| PACKING | 0.41Kg; 16pcs/9.5Kg/0.85CUFT | |||||||||
Meanwell OWA-60U Series Features
l Universal AC input/Full range (up to 264VAC)
l High efficiency up to 91%
l Protections: Short circuit/Over current/Over voltage/Over temperature
l ClassⅡpower unit, no FG
l Class 2 power unit
l Fully isolated plastic case
l Fanless design, cooling by free air convection
l No load power consumption <0.15W
l Comply with EISA 2007 DoE and NRCan
l UL LISTED, suitable for dry and damp locations
l Various DC plug quick adapter accessory available
l 5 years warranty
Meanwell OWA-60U Series Applications
l Indoor LED lighting
l LED decorative lighting
l LED office lighting
l General electronic products in dusty or humid environment
Meanwell OWA-60U Series Mechanical Diagram
