OWA-60E-36
26.35
Details

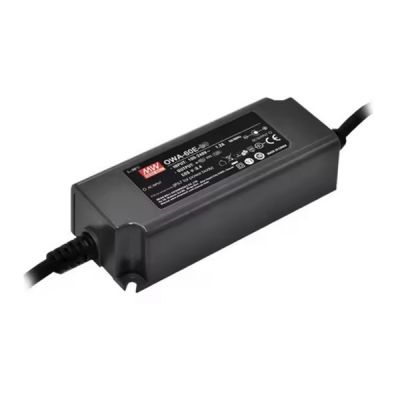

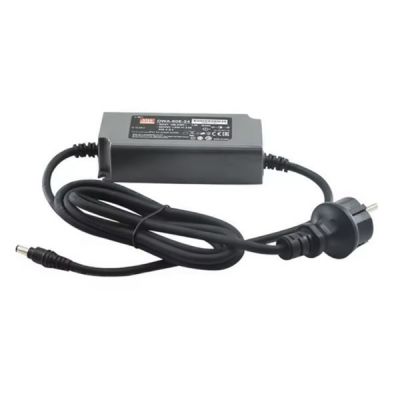

Meanwell ОWА-60Е-36 іѕ a 60W Single Output Moistureproof Adaptor with 36V1.67A60.12W200mVp-p. The fully-potted silicone inside the plastic enclosure enhances the heat dissipation. The power body achieves IP67 level, so that the model specializes the application in which the damp, humidity or dust resistance is needed for the external power supply. At the same time, OWA-60E-36 follows the latest energy efficiency demand, compliant with EU ErP and meets Code of Conduct (CoC) Version 5. The no load power consumption is less than 0.15W, and certified with EN 61 558-2-16. Apart from them, the compliance to EN 60335-1 for selected models could greatly simplify the system design such as household appliances. OWA-60E-36 adopts the universal input range from 90VAC to 264VAC. Furthermore, the efficiency reaches high up to 91%, and cooled by free air convection. The working temperature ranges from -35℃ to +70℃. Because of its longevity, high efficiency and excellent reliability, Meanwell OWA-60E-36 serves as an ideally suitable solution for various applications.
Meanwell OWA-60E-36 Encoding
| OWA | Series Name |
| 60 | Output wattage |
| E | European type of AC plug |
| 36 | Output Voltage |
Meanwell OWA-60E-36 Specifications
| ORDER NO. | OWA-60E-36 | |
| OUTPUT | DC VOLTAGE | 36V |
| RATED CURRENT | 1.67A | |
| RATED POWER | 60.12W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±1.0% | |
| HOLD UP TIME (Typ.) | 500ms, 80ms/230VAC 1000ms, 80ms/115VAC at 95% load | |
| SETUP, RISE, HOLD UP TIME | 10ms at full load 115VAC / 230VAC | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT | 1.2A / 115VAC 0.7A / 230VAC | |
| INRUSH CURRENT (Typ.) | COLD START 65A(twidth=750 s measured at 50% Ipeak) at 230VAC | |
| LEAKAGE CURRENT | <0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 115% |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 41-50V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | -35 ~ +70℃ (Refer to "Derating Curve) |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | EN61558-1,-2-16; EN60335-1 (except for OWA-60E-48,54); EAC TP TC 004, IP67( for power body) approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to EN55032 (CISPR32) Class B, EN55014-1,EN61000-3-2 class A, EN61000-3-3;EAC TP TC 020 | |
| Others | MTBF | 4386.2K hrs min. Telcordia SR-332 (Bellcore) 522.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 130*53*35mm | |
| PACKING | 0.41Kg; 16pcs/11Kg/0.85CUFT | |
Meanwell OWA-60E-36 Features
l Universal AC input/Full range
l ClassⅡpower unit, no FG
l Fully isolated plastic case
l Fanless design, cooling by free air convection
l Various DC plug quick adapter accessory available
l 5 years warranty
l High efficiency up to 91%
l No load power consumption <0.15W
l Comply with EU ErP and CoC Version 5
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell OWA-60E-36 Applications
l Robotic lawn mower
l Household appliance
l Battery charging
l General electronic products in dusty or humid environment
Meanwell OWA-60E-36 Mechanical Diagram
