OWA-200U-42
40.52
Details

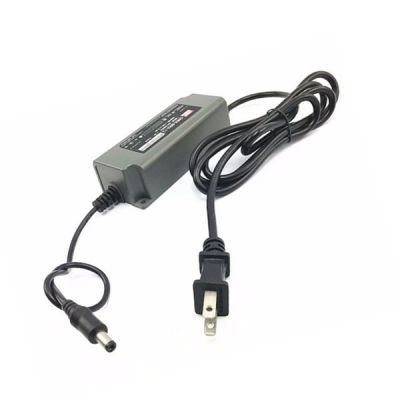

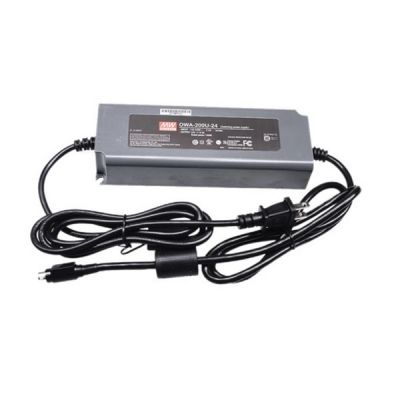

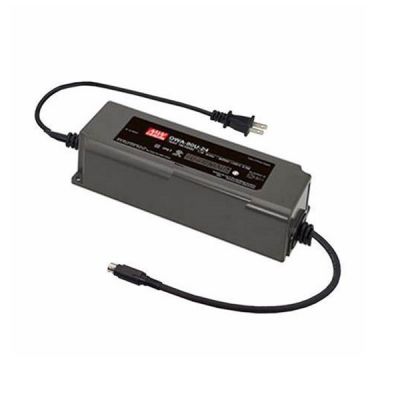

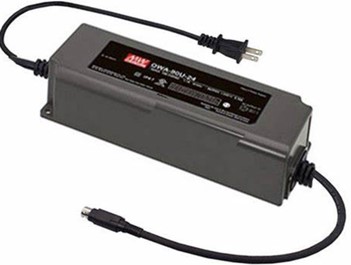

Meanwell OWA-200U-42 is a 200W single-output external power supply with 42V4.75A199W250mVp-p. The unit pairs the North American type of AC plug and prevailing DC connectors. OWA- 200U-42 works as an adaptor, simplifying the connection with any electric device which needs waterproof function. Additionally, it is certified with the UL LISTED for dry and damp locations. As a classⅡ(no FG) design, the enclosure is a 94V-0 flame retardant plastic case. Apart from them, the interior is fully potted with silicone, which enhances the heat dissipation. The efficiency reaches high up to 94%, and cooled by free air convection. The working temperature ranges from -40℃ to +70℃. Because of its longevity, high efficiency and excellent reliability, Meanwell OWA-200U-42 serves as an ideally suitable solution for various applications.
Meanwell OWA-200U-42 Encoding
| OWA | Series Name |
| 200 | Output wattage |
| U | North American type of AC plug |
| 42 | Output Voltage |
Meanwell OWA-200U-42 Specifications
| ORDER NO. | OWA-200U-42 | |
| OUTPUT | DC VOLTAGE | 42V |
| RATED CURRENT | 4.75A | |
| RATED POWER | 199W | |
| RIPPLE & NOISE (max.) | 250mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE TIME | 500ms, 80ms 230VAC / 115VAC | |
| HOLD UP TIME (Typ.) | 10ms at full load 230VAC / 115VAC | |
| INPUT | VOLTAGE RANGE | 100 ~ 264VAC 142 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.97/115VAC, PF>0.96/230VAC at full load | |
| EFFICIENCY (Typ.) 115VAC | 89.00% | |
| EFFICIENCY (Typ.) 230VAC | 90.00% | |
| AC CURRENT (Typ.) | 2.2A / 115VAC 1.1A / 230VAC | |
| INRUSH CURRENT (Typ.) | COLD START 90A(twidth=300 s measured at 50% Ipeak) at 115VAC COLD START 180A(twidth=450 s measured at 50% Ipeak) at 230VAC |
|
| LEAKAGE CURRENT | <0.125mA / 120VAC <0.25mA / 240VAC | |
| NO LOAD CONSUMPTION | <0.15W | |
| PROTECTION | OVER CURRENT | 105% ~ 150% |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 46-57V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL8750 listed, CSA C22.2 No. 250.13-12; IP67(for power body) approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to FCC Part15 | |
| Others | MTBF | 2902.2K hrs min. Telcordia SR-332 (Bellcore) 294.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 191*63*37.5mm | |
| PACKING | 1.15Kg; 12pcs/13Kg/0.89CUFT | |
Meanwell OWA-200U-42 Features
l 5 years warranty
l ClassⅡpower unit, no FG
l Built-in active PFC function
l High efficiency up to 94%
l Energy efficiency Level VI
l Universal AC input/Full range
l Fully isolated plastic case with IP67
l No load power consumption <0.15W
l Comply with EU Erp and CoC Version 5
l Fanless design, cooling by free air convection
l UL LISTED, suitable for dry and damp location
l Protections: Short circuit/Over current/Over voltage/Over temperature
Meanwell OWA-200U-42 Applications
l Industrial field PC adaptor
l POS or KIOSK system
l Portable Battery charger
l Electric Lawn mower charger
l General electronic products in dusty or humid environment
l Household Device
Meanwell OWA-200U-42 Mechanical Diagram
