OWA-200E-36

$40.55

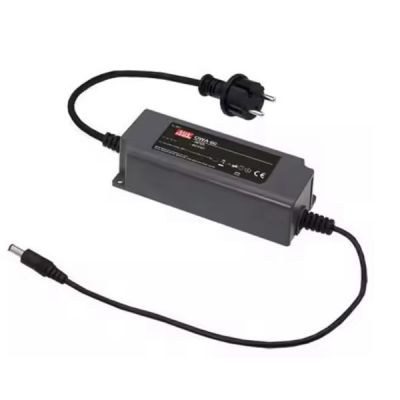

Meanwell 200W Single Output Moistureproof Adaptor with 36V5.5A199W200mVp-p±3.0%±0.5%±3.0%

- +
Availability:In stock
SKU Meanwell OWA-200E-36
Brand Meanwell
Details

Meanwell OWA-200E-36 is a 200W AC/DC Single Output Moistureproof Adaptor with 36V5.5A199W200mVp-p. At the same time, the fully-potted silicone inside the plastic enclosure enhances the heat dissipation. The power body achieves IP67 level, so that the item specializes the applications in which the damp, humidity or dust resistance is needed for the external power supply. In addition, OWA-200E-36 follows the latest energy efficiency demand with no load power consumption less than 0.15W. It is also certified with EN61 558-2-16. Furthermore, the compliance to EN60335-1 for selected models could greatly simplify the system design such as household or charging application. OWA-200E-36 adopts the input range from 180VAC to 264VAC, and incorporates built-in PFC function. Furthermore, the efficiency reaches high up to 94%, and cooled by free air convection. The working temperature ranges from  -40℃ to +70℃. In view of its longevity, high efficiency and excellent reliability, Meanwell OWA-200E-36 serves as an ideally suitable solution for various applications.

Meanwell OWA-200E-36 price and specs 200W AC/DC Single Output Adaptor 36v 5.5a OWA-200E-12 20 24 36 42 48 54 YCICT

Meanwell OWA-200E-36 Encoding

OWA Series Name
200 Output wattage
E European type of AC plug
36 Output Voltage

Meanwell OWA-200E-36 Specifications

ORDER NO. OWA-200E-36
OUTPUT DC VOLTAGE 36V
RATED CURRENT 5.5A
RATED POWER 199W
RIPPLE & NOISE (max.) 200mVp-p
VOLTAGE TOLERANCE ±3.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±3.0%
SETUP, RISE TIME 500ms, 80ms 230VAC
HOLD UP TIME (Typ.) 10ms at full load 230VAC
INPUT VOLTAGE RANGE 180 ~ 264VAC 254 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.96/230VAC at full load
EFFICIENCY (Typ.) 94.00%
AC CURRENT (Typ.) 1.1A / 230VAC
INRUSH CURRENT (Typ.) COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT <0.25mA / 240VAC
NO LOAD CONSUMPTION <0.15W
PROTECTION OVER CURRENT 105% ~ 150%
Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 41-49V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS DEKRA EN61558-1,-2-16; DEKRA EN60335-1(except for OWA-200E-48,54); EAC TP TC 004, IP67 (for power body) approved
WITHSTAND VOLTAGE I/P-O/P:4.2KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to EN55032 (CISPR32) ClassB, EN55035, EN55014-1, EN61000-3-2/3; EAC TP TC 020
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11,EN55014-2,EN55024, light industry level (surge L-N: 2KV), EAC TP TC 020
Others MTBF 2677.8K hrs min. Telcordia SR-332 (Bellcore) 267.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 195*68*39.5mm
PACKING 1.32Kg; 9pcs/ 12.88Kg/ 0.79CUFT

Meanwell OWA-200E-36 Features

l  5 years warranty

l  High efficiency up to 94%

l  Energy efficiency Level VI

l  Input range 180~264VAC

l  Class II power unit, no FG

l  Built-in active PFC function

l  No load power consumption<0.15W

l  Comply with EU ErP and CoC Version 5

l  Fanless design, cooling by free air convection

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Compliance to IEC/EN 61558-1,-2-16 and IEC/EN 60335-1 (except for OWA-200E-48 ,54) for household appliance

Meanwell OWA-200E-36 Applications

l  Industrial field PC adaptor

l  POS or KIOSK system

l  Portable Battery charger

l  Electric Lawn mower charger

l  General electronic products in dusty or humid environment

l  Household Device

Meanwell OWA-200E-36 price and specs 200W AC/DC Single Output Adaptor 36v 5.5a PFC OWA-200E-12 20 24 36 42 48 54 YCICT

Meanwell OWA-200E-36 Mechanical Diagram

Meanwell OWA-200E-36 price and datasheet 200W AC/DC Single Output Adaptor 36v 5.5a OWA-200E-12 20 24 36 42 48 54 YCICT
