OWA-200E-24
40.35
Details

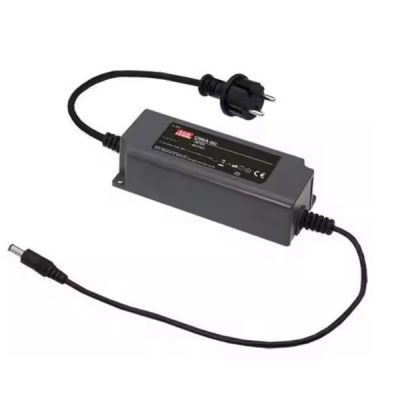

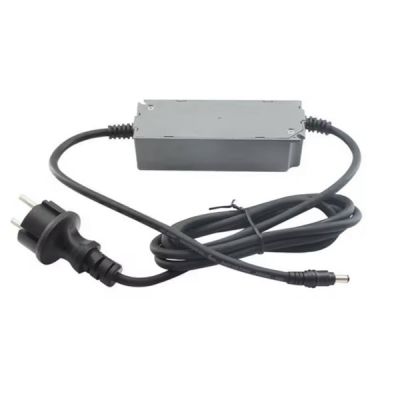

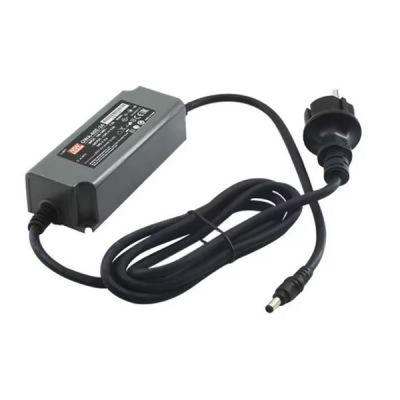

Meanwell OWA-200E-24 is a 200W AC/DC Single Output Moistureproof Adaptor with 24V8.3A199W150mVp-p. The fully-potted silicone inside the plastic enclosure enhances the heat dissipation. The power body achieves IP67 level, so that the model specializes the applications in which the damp, humidity or dust resistance is needed for the external power supply. At the same time, OWA-200E-24 follows the latest energy efficiency demand with no load power consumption less than 0.15W. It is certified with EN61 558-2-16 as well. Furthermore, the compliance to EN60335-1 for selected models could greatly simplify the system design such as household or charging application. OWA-200E-24 adopts the input range from 180VAC to 264VAC, and incorporates built-in PFC function. The efficiency reaches high up to 94%, and cooled by free air convection. Moreover, the working temperature ranges from -40℃ to +70℃. In light of its longevity, high efficiency and excellent reliability, Meanwell OWA-200E-24 serves as an ideally suitable solution for various applications.
Meanwell OWA-200E-24 Encoding
| OWA | Series Name |
| 200 | Output wattage |
| E | European type of AC plug |
| 24 | Output Voltage |
Meanwell OWA-200E-24 Specifications
| ORDER NO. | OWA-200E-24 | |
| OUTPUT | DC VOLTAGE | 24V |
| RATED CURRENT | 8.3A | |
| RATED POWER | 199W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE TOLERANCE | ±4.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±4.0% | |
| SETUP, RISE TIME | 500ms, 80ms 230VAC | |
| HOLD UP TIME (Typ.) | 10ms at full load 230VAC | |
| INPUT | VOLTAGE RANGE | 180 ~ 264VAC 254 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.96/230VAC at full load | |
| EFFICIENCY (Typ.) | 93.00% | |
| AC CURRENT (Typ.) | 1.1A / 230VAC | |
| INRUSH CURRENT (Typ.) | COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC | |
| LEAKAGE CURRENT | <0.25mA / 240VAC | |
| NO LOAD CONSUMPTION | <0.15W | |
| PROTECTION | OVER CURRENT | 105% ~ 150% |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 27-34V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | DEKRA EN61558-1,-2-16; DEKRA EN60335-1(except for OWA-200E-48,54); EAC TP TC 004, IP67 (for power body) approved |
| WITHSTAND VOLTAGE | I/P-O/P:4.2KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to EN55032 (CISPR32) ClassB, EN55035, EN55014-1, EN61000-3-2/3; EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11,EN55014-2,EN55024, light industry level (surge L-N: 2KV), EAC TP TC 020 | |
| Others | MTBF | 2677.8K hrs min. Telcordia SR-332 (Bellcore) 267.6K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 195*68*39.5mm | |
| PACKING | 1.32Kg; 9pcs/ 12.88Kg/ 0.79CUFT | |
Meanwell OWA-200E-24 Features
l 5 years warranty
l Energy efficiency Level VI
l Input range 180~264VAC
l Class II power unit, no FG
l Built-in active PFC function
l High efficiency up to 94%
l No load power consumption<0.15W
l Comply with EU ErP and CoC Version 5
l Fanless design, cooling by free air convection
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Compliance to IEC/EN 61558-1,-2-16 and IEC/EN 60335-1 (except for OWA-200E-48 ,54) for household appliance
Meanwell OWA-200E-24 Applications
l Industrial field PC adaptor
l POS or KIOSK system
l Portable Battery charger
l Electric Lawn mower charger
l General electronic products in dusty or humid environment
l Household Device
Meanwell OWA-200E-24 Mechanical Diagram
