OWA-120U-42
39.11
Details

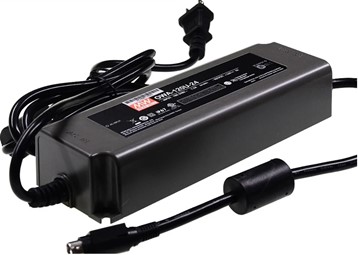

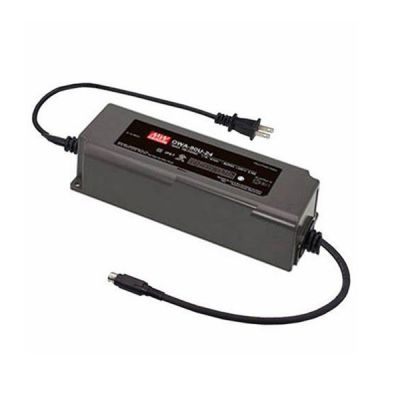

Meanwell OWA-120U-42 is a 120W single-output external LED power supply with 42V25.2-42V2.9A121.8W250mVp-p. The model pairs the North American type of AC plug and prevailing DC connectors. OWA-120U-42 works like an adaptor, simplifying the connection with LED lighting fixtures without extra wiring efforts. At the same time, it is certified with the UL LISTED for dry and damp locations. As a class II (no FG) design, the enclosure is a 94V-0 flame retardant plastic case. The interior is fully potted with silicone, which enhances the heat dissipation. The efficiency reaches high up to 90.5%, and cooled by free air convection. Moreover, the working temperature ranges from -40℃ to +70℃. Due to its longevity, high efficiency and excellent reliability, Meanwell OWA-120U-42 serves as an ideally suitable solution for various applications.
Meanwell OWA-120U-42 Encoding
| OWA | Series Name |
| 120 | Output wattage |
| U | North American type of AC plug |
| 42 | Output Voltage |
Meanwell OWA-120U-42 Specifications
| ORDER NO. | OWA-120U-42 | |
| OUTPUT | DC VOLTAGE | 42V |
| CONSTANT CURRENT REGION | 25.2-42V | |
| RATED CURRENT | 2.9A | |
| RATED POWER | 121.8W | |
| RIPPLE & NOISE (max.) | 250mVp-p | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| HOLD UP TIME (Typ.) | 500ms, 80ms at 95% load 230VAC / 115VAC | |
| SETUP, RISE, HOLD UP TIME | 16ms at full load 230VAC / 115VAC | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.97/115VAC, PF>0.96/230VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=60% at 115VAC/230VAC | |
| EFFICIENCY (Typ.) 115VAC | 89.50% | |
| EFFICIENCY (Typ.) 230VAC | 90.50% | |
| AC CURRENT (Typ.) | 1.3A / 115VAC 0.65A / 230VAC | |
| INRUSH CURRENT (Typ.) | COLD START 30A(twidth=520 s measured at 50% Ipeak) at 115VAC COLD START 60A(twidth=520 s measured at 50% Ipeak) at 230VAC |
|
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.125mA / 120VAC <0.25mA / 240VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 46-54V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL8750 listed, CSA C22.2 No. 250.13-12; IP67(for power body) approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to FCC Part15 | |
| Others | MTBF | 2902.2K hrs min. Telcordia SR-332 (Bellcore) 294.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 191*63*37.5mm | |
| PACKING | 1.15Kg; 12pcs/13Kg/0.89CUFT | |
Meanwell OWA-120U-42 Features
l Universal AC input/Full range
l ClassⅡpower unit, no FG
l 5 years warranty
l Built-in active PFC function
l High efficiency up to 90.5%
l No load power consumption <0.15W
l Energy efficiency Level VI
l Comply with EISA 2007/DoE, NRCan
l Fully isolated plastic case
l Fanless design, cooling by free air convection
l Protections: Short circuit/Over current/Over voltage/Over temperature
l UL LISTED, suitable for dry and damp locations
l Various DC plug quick adapter accessory available
Meanwell OWA-120U-42 Applications
l Indoor LED lighting
l LED decorative lighting
l LED office lighting
l General electronic products in dusty or humid environment
Meanwell OWA-120U-42 Mechanical Diagram
