ODLC-65-700
17.16
Details

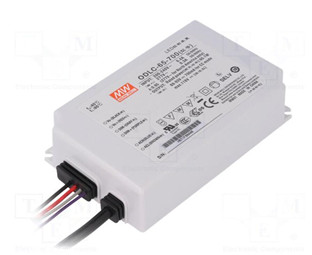

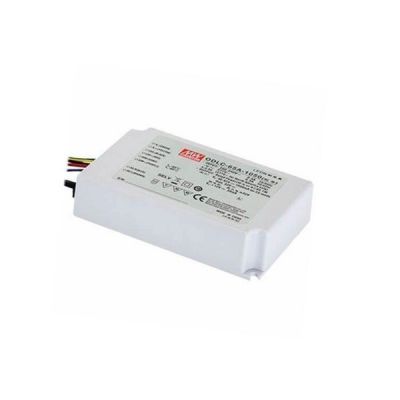

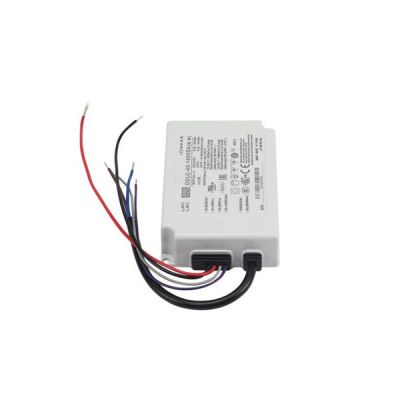

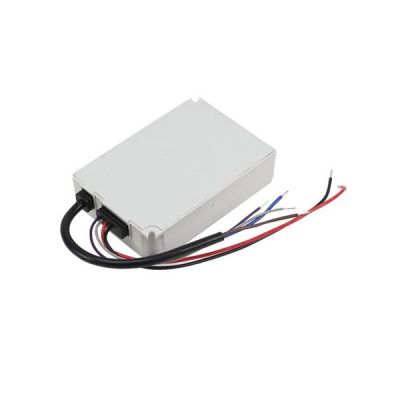

Meanwell ODLC-65-700 is 65W LED AC/DC driver with 700mA65.1W69-93V118V±7.0%500ms/230VAC47~63Hz88.00%. The product features constant current mode output and flicker free design. Meanwhile, it operates from 180~295V AC, and offers the model with rated current 700mA. Since the efficiency reaches up to 88% under no fan design, ODLC-65-700 is able to work for -20℃ ~+85℃ case temperature through free air convection. In addition, the plastic housing design and IP67 ingress protection level permit it to meet indoor wet applications. What’s more, it is equipped with various function options such as dimming methodologies. Thanks to its high efficiency, good quality, and excellent reliability. Meanwell ODLC-65-700 is the optimal design flexibility for lighting system
Meanwell ODLC-65-700 Encoding
| ODLC | Series Name |
| 65 | Output Wattage |
| A | A: Auxiliary DC output ( 12V@50mA) |
| □: None | |
| 700 | Rated output current ( 700/1050/1400/1750mA) |
| □ | Function options |
| Blank | 2 in1 dimming ( 0-10VDC and 10V PWM) |
| DA | DALI control technoligy |
| The DALI control model (DA Type) only for ODLG-65 Non Auxiliary DC output models | |
Meanwell ODLC-65-700 Specifications
| Model | ODLC-65□-700□ | |
| RATED CURRENT | 700mA | |
| RATED POWER | 65.1W | |
| CONSTANT CURRENT REGION | 69-93V | |
| OPEN CIRCUIT VOLTAGE (max.) | 118V | |
| CURRENT RIPPLE | 5% max. @rated current | |
| CURRENT TOLERANCE | ±7.0% | |
| SETUP, RISE TIME | 500ms / 230VAC | |
| AUXILIARY DC OUTPUT | Nominal 12V(deviation 11.4~12.6)@50mA for ODLC-65A only | |
| Input | VOLTAGE RANGE | 180 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.95/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | |
| TOTAL HARMONIC DISTORTION | THD< 20%(@load>=75%/230VAC,277VAC) (Please refer to TOTAL HARMONIC DISTORTION”section) | |
| EFFICIENCY (Typ.) | 88.00% | |
| AC CURRENT | 0.4A/230VAC 0.3A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 30A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC | |
| NO LOAD/STANDBY POWER CONSUMPTION | <0.75mA / 277VAC | |
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank-Type, <1.2W for ODLC-65A Standby power consumption <0.5W for DA-Type |
|
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode,auto-recovery after fault condition is removed for DA type； Hiccup mode,re-power on to recovery for other type |
| ENVIRONMENT | WORKING TEMP. | Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE”section) |
| MAX. CASE TEMP | Tcase=+85℃ | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL8750(type”HL”);CSA C22.2 NO.250.13-12; ENEC BS EN/EN61347-1 & BS EN/EN61347-2-13 independent BS EN/EN62384; EAC TP TC 004, IP67 approved |
| DALI STANDARDS | Compliance to IEC62386-101,102 for DA-Type only | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (>=75% load) ; BS EN/EN61000-3-3, GB17743,GB17625.1,EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Line:1KV),EAC TP TC 020 | |
| Others | MTBF | 4381.7K hrs min. Telcordia SR-332 (Bellcore) ;402.6K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 121*77*28.5mm(L*W*H) | |
| PACKING | 0.43Kg; 24pcs/ 11.3Kg/ 0.74CUFT | |
Meanwell ODLC-65-700 Features
l Constant Current mode output
l Flicker free design
l Plastic housing with classⅡdesign
l Built-in active PFC function
l IP67 rating for indoor or outdoor installations
l Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output; DALI
l 3 years warranty
l No load power consumption<0.5W(Blank-Type), Standby power consumption<0.5W(DA-Type)
Meanwell ODLC-65-700 Applications
l LED panel lighting
l LED flood lighting
l Indoor LED lighting
l Industrial lighting
Meanwell ODLC-65-700 Mechanical Diagram
