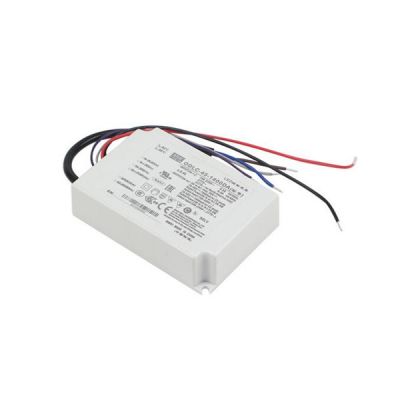

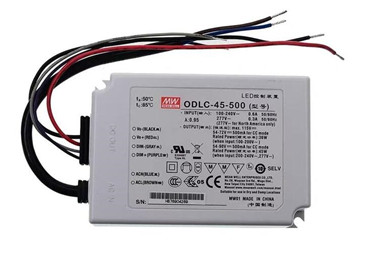

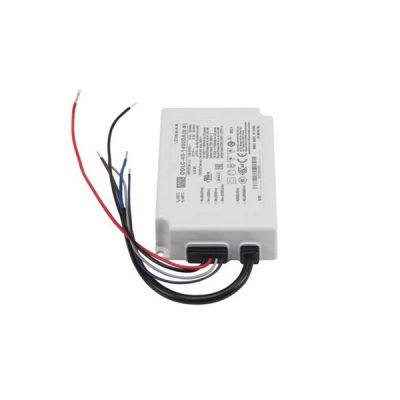

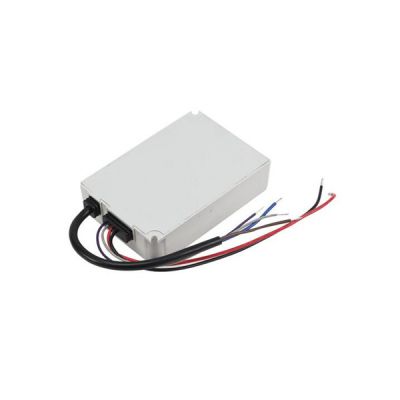

Meanwell ODLC-45 Series is a 45W LED AC/DC driver power supply highlighting constant current mode output with flicker free design. At the same time, the entire series operates from 90~295V AC and offers models with different rated current ranging between 350mA and 1400mA. Since the efficiency reaches up to 86% with fanless design, ODLC-45 is able to work for -20℃ ~+85℃ case temperature under free air convection. In addition, the plastic housing design and IP67 ingress protection level allow them to meet indoor wet applications. Apart from them, the series is equipped with various function options such as dimming methodologies. Considering its high efficiency, good quality, and excellent reliability. Meanwell ODLC-45 Series serves as the optimal design flexibility for lighting system.
Meanwell ODLC-45 Series Encoding
| ODLC | Series Name |
| 45 | Rated Wattage |
| A | A: Auxiliary DC output ( 12V@20mA) |
| B: None | |
| 350 | Rated output current ( 350/500/700/1050/1400mA) |
| □ | Function options |
| Blank | 2 in1 dimming ( 0-10VDC and 10V PWM) |
| DA | DALI control technoligy |
| The DALI control model (DA Type) only for ODLG-45 Non Auxiliary DC output models | |
Meanwell ODLC-45 Series Model Specifications
| Model | ODLC-45□-350□ | ODLC-45□-500□ | ODLC-45□-700□ | ODLC-45□-1050□ | ODLC-45□-1400□ | |
| RATED CURRENT | 350mA | 500mA | 700mA | 1050mA | 1400mA | |
| RATED POWER | 33.25W | 45W | 44.8W | 45.15W | 44.8W | |
| CONSTANT CURRENT REGION | 57-95V | 54-90V | 38-64V | 26-43V | 19-32V | |
| OPEN CIRCUIT VOLTAGE (max.) | 118V | 115V | 84V | 63V | 50V | |
| CURRENT RIPPLE | 5% max. @rated current | |||||
| CURRENT TOLERANCE | ±7.0% | |||||
| SETUP, RISE TIME | 500ms / 230VAC 1200ms/115VAC | |||||
| AUXILIARY DC OUTPUT | Nominal 12V(deviation 11.4~12.6)@50mA for ODLC-45A only | |||||
| Input | VOLTAGE RANGE | 90 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section) | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| POWER FACTOR (Typ.) | PF>0.95/115VAC, PF>0.92/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | |||||
| TOTAL HARMONIC DISTORTION | THD< 20%(@load>=60%/230VAC; @load>=75%/277VAC) (Please refer to“TOTAL HARMONIC DISTORTION” section) | |||||
| EFFICIENCY (Typ.) | 86.00% | 85.00% | 85.00% | 85.00% | 85.00% | |
| AC CURRENT | 0.6A/115VAC 0.4A/230VAC 0.3A/277VAC | |||||
| INRUSH CURRENT(Typ.) | COLD START 30A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC | |||||
| NO LOAD/STANDBY POWER CONSUMPTION | No load power consumption<0.5W for Blank-Type,<1.2W for ODLC-45A Standby power consumption<0.5W for DA-Type |
|||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||||
| PROTECTION | SHORT CIRCUIT | Hiccup mode,auto-recovery after fault condition is removed for DA type； Hiccup mode,re-power on to recovery for other type |
||||
| ENVIRONMENT | WORKING TEMP. | Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE”section) | ||||
| MAX. CASE TEMP | Tcase=+85℃ | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 40℃) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| SAFETY & EMC | SAFETY STANDARDS | UL8750(type”HL”),CSA C22.2 NO.250.13-12;ENEC BS EN/EN61347-1 & BS EN/EN61347-2-13 independent, BS EN/EN62384; BIS IS15885( for ODLC-45-700,1050,700DA,1050DA only), EAC TP TC 004,IP67 approved |
||||
| DALI STANDARDS | Compliance to IEC62386-101, 102 for DA-Type only | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load>=60%) ; BS EN/EN61000-3-3, GB17743,GB17625.1,EAC TP TC 020 |
|||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Line:1KV),EAC TP TC 020 |
|||||
| Others | MTBF | 3513.4K hrs min. Telcordia SR-332 (Bellcore) ;340.8K hrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 111*77*28.5mm(L*W*H) | |||||
| PACKING | 0.42Kg; 24pcs/ 11Kg/ 0.72CUFT | |||||
Meanwell ODLC-45 Series Features
l Constant Current mode output
l Flicker free design
l Plastic housing with classⅡdesign
l Built-in active PFC function
l No load power consumption<0.5W(Blank-Type), Standby power consumption<O. 5W(DA-Type)
l IP67 rating for indoor or outdoor installations
l Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output; DALI
l 3 years warranty
Meanwell ODLC-45 Series Applications
l LED panel lighting
l LED flood lighting
l Indoor LED lighting
l Industrial lighting

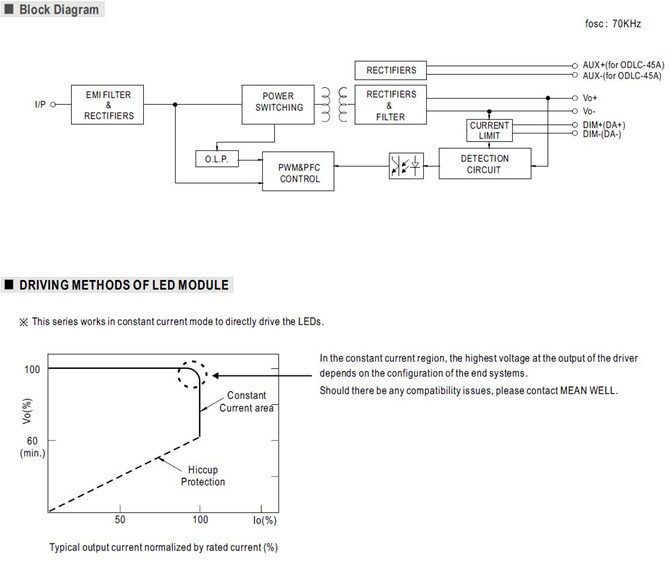

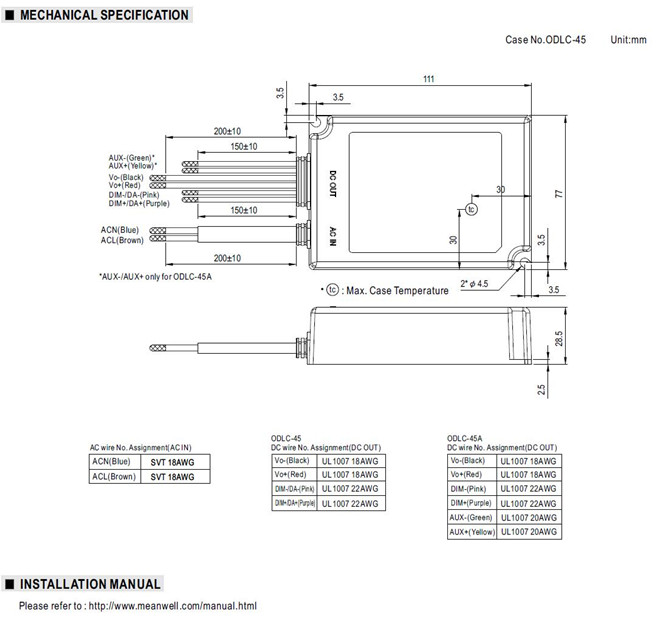

Meanwell ODLC-45 Series Mechanical Diagram
