NTS-2200-212
471.53
Details

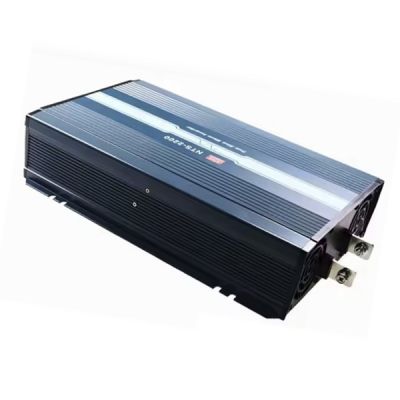

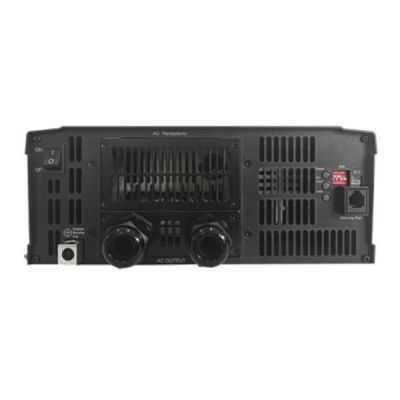

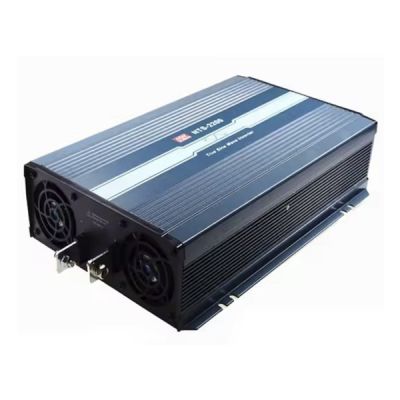

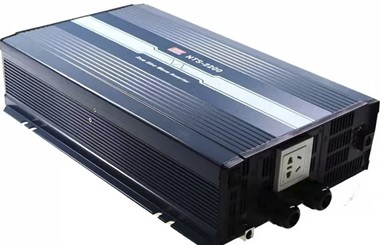

Meanwell NTS-2200-212 is a 2200W highly reliable off-grid true sine wave DC-AC power inverter. The main highlights are as following: digital design with MCU control, streamlined control circuitry which quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 4400W peak power, adjustable AC output voltage and frequency, -25℃~+70℃ wide operating temperature range, complete protection features, and etc. What's more, combined with batteries, NTS-2200-212 is suitable for use inresidential, commercial, marine, automobile, mine, construction site, and remote areas with no accessto utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment, and etc.
Meanwell NTS-2200-212 Encoding
| NTS | Series Name |
| 2200 | Rated Wattage |
| 1 | AC output voltage (1:100/110/115/120Vac, 2:200/220/230/240Vac) |
| 12 | DC input voltage ( 12:12Vdc, 24;24Vdc, 48:48Vdc) |
| US | AC Output socket ( Type US,EU,CN,AU,UK,UN,TB outlet) |
Meanwell NTS-2200-212 Specifications
| MODEL NO | NTS-2200-112□ | NTS-2200-124□ | NTS-2200-148□ | NTS-2200-212□ | NTS-2200-224□ | NTS-2200-248□ | ||
| □= US, UN, TB | □=EU, CN, AU, UK, UN,TB | |||||||
| AC OUTPUT | RATED POWER (Continuous) | 2200W | 2200W | |||||
| OVER RATED POWER (3 Min.) | 2530W | 2530W | ||||||
| PEAK POWER (10 Sec.) | 3300W | 3300W | ||||||
| SURGE POWER (30 Cycles) | 4400W | 4400W | ||||||
| AC VOLTAGE | Factory setting set at 110VAC | Factory setting set at 230VAC | ||||||
| 100/110/115/120Vac selectable by DIP S.W | 200 / 220 / 230 / 240Vac selectable by DIP S.W | |||||||
| FREQUENCY | Factory setting set at 60士0.1Hz | Factory setting set at 50±0.1Hz | ||||||
| 50/60Hz selectable by DIP S.W | 50/60Hz selectable by DIP S.W | |||||||
| WAVEFORM | True sine wave (THD<3%) | |||||||
| AC REGULATION | ±3.0% at rated output voltage | |||||||
| DC INPUT | DC VOLTAGE | 12Vdc | 24Vdc | 48Vdc | 12Vdc | 24Vdc | 48Vdc | |
| VOLTAGE RANGE (Typ.) | 10 ~ 16.5Vdc | 20 ~ 33Vdc | 40 ~ 66Vdc | 10 ~ 16.5Vdc | 20 ~ 33Vdc | 40 ~ 66Vdc | ||
| DC CURRENT (Typ) | 250A | 120A | 60A | 250A | 120A | 60A | ||
| NO LOAD DISSIPATION (SAVING MODE)(Typ.) | Default disable, auto detect AC output load<=10W will be changed to saving mode | |||||||
| 1.7W | ||||||||
| OFF MODE CURRENT DRAW | <=2mA | |||||||
| EFFICIENCY (Typ.) | 89.00% | 90.00% | 91.00% | 90.00% | 92.00% | 93.00% | ||
| BATTERY TYPES | Lead Acid or li-ion | |||||||
| PROTECTION | FUSE (Internal) | 40A*8 | 40A*4 | 25A*4 | 40A*8 | 40A*4 | 25A*4 | |
| DC INPUT | LOW ALARM | 11±0.3Vdc | 22±0.5Vdc | 44土1Vdc | 11士0.3Vdc | 22±0.5Vdc | 44±1Vdc | |
| LOW SHUTDOWN | 10±0.3Vdc | 20±0.5Vdc | 40士1Vdc | 10士0.3Vdc | 20±0.5Vdc | 40±1Vdc | ||
| LOW RESTART | 12.5±0.3Vdc | 25±0.5Vdc | 50士1Vdc | 12.5士0.3Vdc | 25±0.5Vdc | 50士1Vdc | ||
| HIGH ALARM | 15.5±0.3Vdc | 31±0.5Vdc | 62±1Vdc | 15.5士0.3Vdc | 31±0.5Vdc | 62士1Vdc | ||
| HIGH SHUTDOWN | 16.5±0.3Vdc | 33±0.5Vdc | 66±1Vdc | 16.5士0.3Vdc | 33±0.5Vdc | 66±1Vdc | ||
| HIGH RESTART | 15±0.3Vdc | 30±0.5Vdc | 60士1Vdc | 15士0.3Vdc | 30±0.5Vdc | 60士1Vdc | ||
| BAT. POLARITY | By internal fuse open | |||||||
| AC OUTPUT | OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| OUTPUT SHORT | Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| OVER LOAD (Typ.) | 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. | |||||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||
| CIRCUIT BREAKER (ONLY FOR “GFCI”AC SOCKET) | 25A (Only for “TB” type) | NONE | ||||||
| TB TYPE | UL458 (Only for “TB” type AC socket) | NONE | ||||||
| FUNCTION | REMOTE CONTROL | CONNECTOR | Power ON-OFF remote control by front panel dry contact connector(by RELAY), Open : Normal work ; Short : Remote off | |||||
| ACCESSORY | Remote controller sold separately, Order No.: IRC1,IRC2,IRC3 | |||||||
| RS-232 COMMUNICATION | RS-232 ~ RJ11 Type connector | |||||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +70℃ (Refer to “Derating curve”) | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -30 ~ +70℃/ -22 ~ +158oF, 10 ~ 95% RH non-condensing | |||||||
| VIBRATION | 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes | |||||||
| SAFETY&EMC | SAFETY STANDARDS | CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, UL62368-1, E13,EAC TP TC 004,AS/NZS 62368.1 approved | ||||||
| WITHSTAND VOLTAGE | DC I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC | |||||||
| EMC EMISSION | Parameter | Standard | Test Level | |||||
| Radiated | FCC for 112,124,148 only (expect for Type-UN) | Class A | ||||||
| BS EN/EN55032 (CISPR32) for 212,224,248 only (expect for Type-UN) | Class A | |||||||
| Harmonic Current | BS EN/EN61000-3-2 | -- | ||||||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | ||||||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN55035 | |||||||
| Parameter | Standard | Test Level | ||||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||||||
| Radiated | BS EN/EN61000-4-3 | Level 2, 3V/m | ||||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 1, 1A/m | ||||||
| OTHERS | MTBF | 364.7K hrs min. Telcordia TR/SR-332 (Bellcore) ; 34.9K hrs min. MIL-HDBK-217F (25℃) | ||||||
| DIMENSION | 420*270*98mm (L*W*H) | |||||||
| PACKING | 8.6Kg; 1pcs/ 10.4Kg/ 1.39CUFT | |||||||
Meanwell NTS-2200-212 Features
l Conformal coating
l 3 years warranty
l Power ON-OFF remote control
l True sine wave output (THD<3%)
l High surge power up to 4400W
l Suitable for lead-acid or li-ion batteries
l Temperature controlled cooling fan
l AC output voltage and frequency selectable by DIP S.W
l No load disspation <1.7W at standby saving mode
l -25℃~+70℃ wide operating temperature
l Front panel indicator for operation status
l Battery over discharge protection (low voltage disconnect)
l Remote controller (IRC1, IRC2, IRC3 accessory sold separately)
l Carry handle accessory available (Order NO.: Carry handle, sold separately)
l Support RS- 232 communication (Communication cable order No.: RJ11-RS232 sold separately)
l Protections: Input: Reverse polarity/DC. low alarm/DC low shutdown/Over voltage, Output: Short circuit/Overload/Over temp.
Meanwell NTS-2200-212 Applications
l Home and office appliance
l Power tools
l Portable equipment
l Vehicle
l Yacht
l Off-grid solar power system
Meanwell NTS-2200-212 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|---|
| Meanwell DC/DC Module Type | NTS-2200-212 |
