NTS-1200-212
171.56
Details

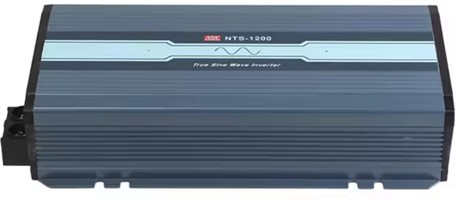

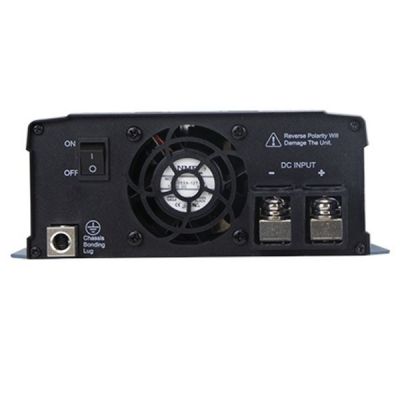

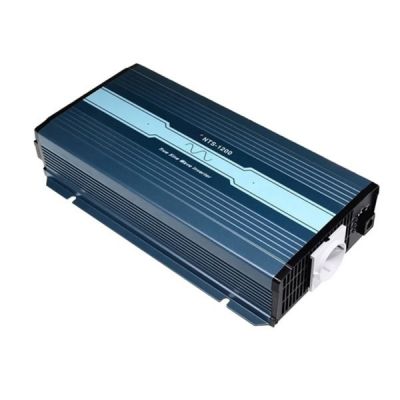

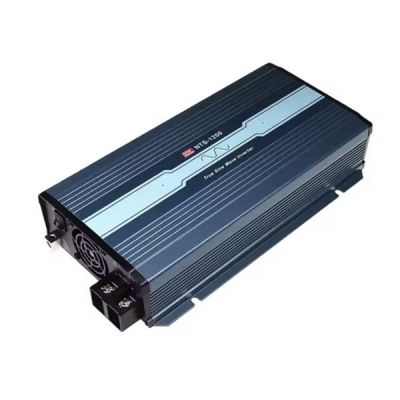

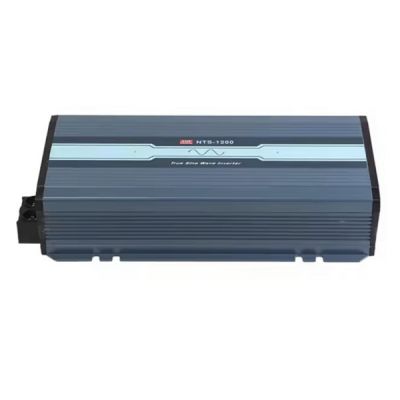

Meanwell NTS-1200 Series is a 1200W highly reliable off-grid true sine wave DC-AC power inverter. Its key features include: digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 2000W peak power, adjustable AC output voltage and frequency, -25~+70℃ wide operating temperature range, complete protection features, and etc. Combined with batteries, NTS-1200 is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no accessto utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment, and etc.
Meanwell NTS-1200 Series Encoding
| NTS | Series Name |
| 1200 | Rated Wattage |
| 1 | AC output voltage (1:100/110/115/120Vac, 2:200/220/230/240Vac) |
| 12 | DC input voltage ( 12:12Vdc, 24;24Vdc, 48:48Vdc) |
| US | AC Output socket ( Type US,EU,CN,AU,UK,UN,GFCI outlet) |
Meanwell NTS-1200 Series Model Specifications
| MODEL NO | NTS-1200-112□ | NTS-1200-124□ | NTS-1200-148□ | NTS-1200-212□ | NTS-1200-224□ | NTS-1200-248□ | ||
| □= US, GFCI, UN | □=EU, CN, AU, UK, UN | |||||||
| AC OUTPUT | RATED POWER (Continuous) | 1200W | ||||||
| OVER RATED POWER (3 Min.) | 1380W | |||||||
| PEAK POWER (10 Sec.) | 1800W | |||||||
| SURGE POWER (30 Cycles) | 2000W | |||||||
| AC VOLTAGE | Default setting set at 110VAC | Default setting set at 230VAC | ||||||
| 100 / 110 / 115 / 120Vac selectable by DIP S.W | 200 / 220 / 230 / 240Vac selectable by DIP S.W | |||||||
| FREQUENCY | Default setting set at 60±0.1Hz | Default setting set at 50±0.1Hz | ||||||
| 50/60Hz selectable by DIP S.W | 50/60Hz selectable by DIP S.W | |||||||
| WAVEFORM | True sine wave (THD<3%) | |||||||
| AC REGULATION | ±3.0% at rated output voltage | |||||||
| DC INPUT | DC VOLTAGE | 12Vdc | 24Vdc | 48Vdc | 12Vdc | 24Vdc | 48Vdc | |
| VOLTAGE RANGE (Typ.) | 10 ~ 16.5Vdc | 20 ~ 33Vdc | 40 ~ 66Vdc | 10 ~ 16.5Vdc | 20 ~ 33Vdc | 40 ~ 66Vdc | ||
| DC CURRENT (Typ) | 120A | 60A | 30A | 120A | 60A | 30A | ||
| NO LOAD DISSPATION (Typ.) | NON-SAVING MODE | 15W | 25W | |||||
| SAVING MODE | Default disable, <=1.2W ~1.5W by models @ auto detect AC output load<=10W will be changed to saving mode | |||||||
| 1.2W | 1.4W | 1.5W | 1.2W | 1.4W | 1.5W | |||
| OFF MODE CURRENT DRAW | <=1mA | |||||||
| EFFICIENCY (Typ.) | 89.00% | 91.00% | 91.50% | 90.00% | 92.00% | 93.00% | ||
| BATTERY TYPES | Lead Acid or li-ion | |||||||
| PROTECTION | FUSE (Internal) | 40A*4 | 40A*2 | 25A*2 | 40A*4 | 40A*2 | 25A*2 | |
| DC INPUT | LOW ALARM | 11±0.3Vdc | 22±0.5Vdc | 44±1Vdc | 11±0.3Vdc | 22±0.5Vdc | 44±1Vdc | |
| LOW SHUTDOWN | 10±0.3Vdc | 20±0.5Vdc | 40±1Vdc | 10±0.3Vdc | 20±0.5Vdc | 40±1Vdc | ||
| LOW RESTART | 12.5±0.3Vdc | 25±0.5Vdc | 50±1Vdc | 12.5±0.3Vdc | 25±0.5Vdc | 50±1Vdc | ||
| HIGH ALARM | 15.5±0.3Vdc | 31±0.5Vdc | 62±1Vdc | 15.5±0.3Vdc | 31±0.5Vdc | 62±1Vdc | ||
| HIGH SHUTDOWN | 16.5±0.3Vdc | 33±0.5Vdc | 66±1Vdc | 16.5±0.3Vdc | 33±0.5Vdc | 66±1Vdc | ||
| HIGH RESTART | 15±0.3Vdc | 30±0.5Vdc | 60±1Vdc | 15±0.3Vdc | 30±0.5Vdc | 60±1Vdc | ||
| BAT. POLARITY | By internal fuse open | |||||||
| AC OUTPUT | OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| OUTPUT SHORT | Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| OVER LOAD (Typ.) | 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. | |||||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||
| CIRCUIT BREAKER (ONLY FOR “GFCI”AC SOCKET) | 15A | 10A | ||||||
| GFCI PROCTECTION | UL458 (Only for “GFCI” AC socket, by request) | NONE | ||||||
| FUNCTION | REMOTE CONTROL | CONNECTOR | Power ON-OFF remote control by front panel dry contact connector(by RELAY), Open : Normal work ; Short : Remote off | |||||
| ACCESSORY | Remote controller sold separately, Order No.: IRC1,IRC2,IRC3 | |||||||
| RS-232 COMMUNICATION | RS-232 ~ RJ11 Type connector (Please refer to page 4 for more details) | |||||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +70℃ (Refer to “Derating curve”) | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -30 ~ +70℃/ -22 ~ +158oF, 10 ~ 95% RH non-condensing | |||||||
| VIBRATION | 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes | |||||||
| SAFETY&EMC | SAFETY STANDARDS | CB IEC62368-1,Dekra BS EN/EN62368-1,UL458, E13,EAC TP TC 004 approved; Design refer to AS/NZS 62368.1 | ||||||
| WITHSTAND VOLTAGE | DC I/P - AC O/P:3.0KVac AC O/P - FG:1.5KVac | |||||||
| EMC EMISSION | Parameter | Standard | Test Level | |||||
| Radiated | FCC for 112,124,148 only (expect for Type-UN) | Class A | ||||||
| BS EN/EN55032(CISPR32) for 212,224,248 only (expect for Type-UN) | Class A | |||||||
| Harmonic Current | BS EN/EN61000-3-2 | -- | ||||||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | ||||||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN55035 | |||||||
| Parameter | Standard | Test Level | ||||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||||||
| Radiated | BS EN/EN61000-4-3 | Level 2, 3V/m | ||||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 1, 1A/m | ||||||
| OTHERS | MTBF | 596.7K hrs min. Telcordia TR/SR-332 (Bellcore) ; 62.0K hrs min. MIL-HDBK-217F (25℃) | ||||||
| DIMENSION | 333*184*70mm (L*W*H) | |||||||
| PACKING | 3.3Kg; 2pcs/ 7.6Kg/ 1.25CUFT | |||||||
Meanwell NTS-1200 Series Features
l True sine wave output (THD<3%)
l High surge power up to 2000W
l Temperature controlled cooling fan
l AC output voltage and frequency selectable by DIP S.W
l No load disspation<1.5W at standby saving mode
l -25℃~+70℃ wide operating temperature
l Power ON-OFF remote control
l Front panel indicator for operation status
l Protections: Input: Reverse polarity/DC low alarm/DC low shutdown/Over Voltage, Output: Short circuit/Overload/Over temp.
l Battery over discharge protection (low voltage disconnect)
l Suitable for lead-acid or li-ion batteries
l Remote controller (IRC1, IRC2, IRC3 accessory sold separately)
l Support RS -232 communication (Communication cable order No.: RJ11-RS232, sold sperately)
l Carry handle accessory available (Order NO.: Carry handle, sold separately)
l Conformal coating
l 3 years warranty
Meanwell NTS-1200 Series Applications
l Home and office appliance
l Power tools
l Portable equipment
l Vehicle
l Yacht
l Off- grid solar power system
l Wireless network
l Telecom or datacom system
Meanwell NTS-1200 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|---|
| Meanwell DC/DC Module Type | NTS-1200-212 |
