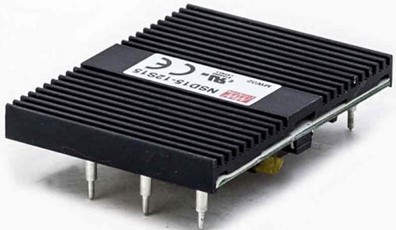

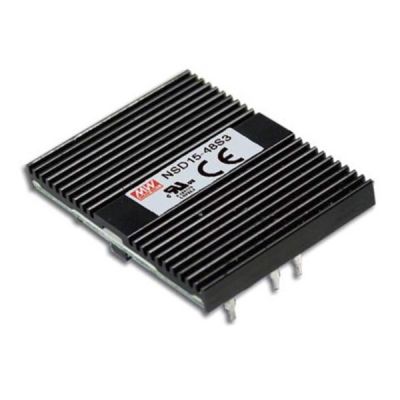

Meanwell NSD15-48S Series Model Specifications
| ORDER NO. | NSD15-48S3 | NSD15-48S5 | NSD15-48S12 | NSD15-48S15 | |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 12V | 15V |
| RATED CURRENT | 3.75A | 3A | 1.25A | 1A | |
| CURRENT RANGE | 0.18-3.75A | 0.15-3A | 0.06-1.25A | 0.05-1A | |
| RATED POWER | 12.375W | 15W | 15W | 15W | |
| CAPACITIVE LOAD (max.) | 3300uF | ||||
| RIPPLE & NOISE (max.) | 100mVp-p (25% ~ 100% load) for 3.3V only 75mVp-p (25% ~ 100% load) | ||||
| VOLTAGE TOLERANCE | ±2.0% | ||||
| LINE REGULATION | ±1.0% at 10% ~ 100% load | ||||
| LOAD REGULATION | ±1.0% at 10% ~ 100% load | ||||
| TRIM OUTPUT (Typ.) | +10% | ±5.0% | ±5.0% | ±3.0% | |
| SETUP TIME | 100ms/RATED DC INPUT at full Load | ||||
| INPUT | RATED DC INPUT | 48VDC | |||
| VOLTAGE RANGE | 18 ~ 72VDC | ||||
| EFFICIENCY (Typ.) | 77.00% | 81.00% | 84.00% | 85.00% | |
| DC CURRENT | 0.4A/48VDC | ||||
| SHUTDOWN IDLE CURRENT | 20mA | ||||
| PROTECTION | OVERLOAD (Typ.) | Above 105% rated output power | |||
| Protection type : Over power limiting, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE (CLAMP) | 5.61-6.93V | 5.5-7.5V | 13.8-18V | 17.25-22.5V | |
| SHORT CIRCUIT | Recovers automatically after fault condition is removed | ||||
| FUNCTION OPERATING | ON/OFF CONTROL | Logic "1" or open circuit : ON Logic "0" or short to PIN2 : OFF | |||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +70℃ | |||
| WORKING HUMIDITY | 0% ~ 95% RH max. | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 0 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~50℃) | ||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1 | |||
| ISOLATION VOLTAGE | I/P-O/P:1.5KVDC | ||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, light industry level, EAC TP TC 020 | ||||
| OTHERS | MTBF | 12058.3K hrs min. Telcordia SR-332 (Bellcore) ; 1734.0K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 50.8*38.1*9.82mm (2"*1.5"*0.387") (L*W*H) | ||||
| PACKING | 0.03Kg; 180pcs/6.4Kg/0.94CUFT | ||||
Meanwell NSD15-48S Series Features
l Low cost
l High reliability
l Wide 4:1 DC input range
l 1500VDC l/O isolation
l Built-in EMI filter
l Cooling by free air convection
l Output voltage trimming function
l Built-in remote ON-OFF control
l 100% full load burn-in test
l Protections: Short circuit/Overload/Over voltage
l 2 years warranty

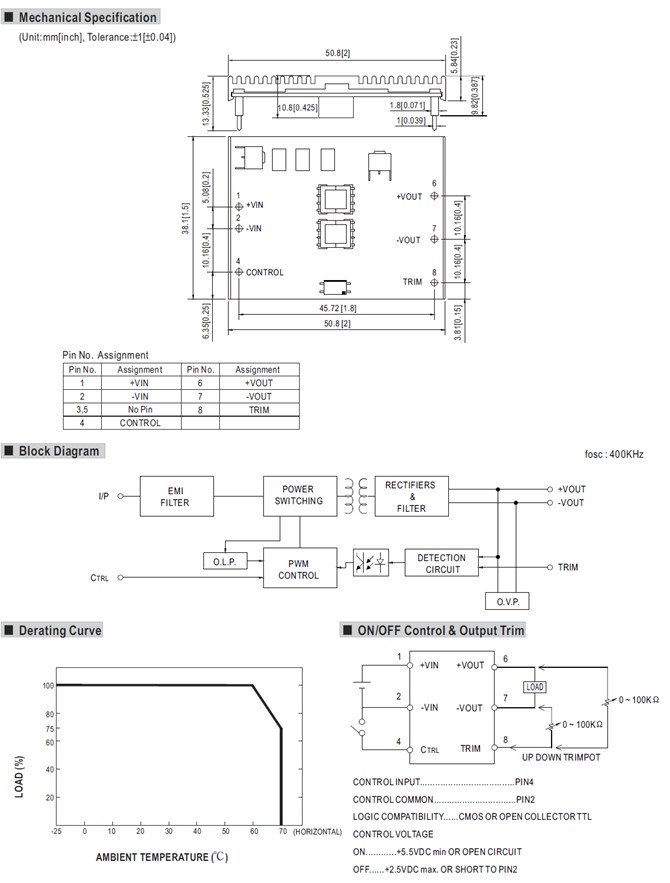

Meanwell NSD15-48S Series Mechanical Diagram
