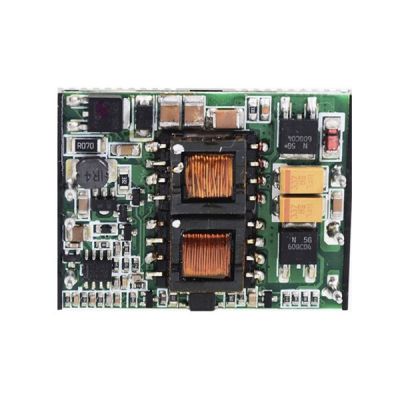

NSD15-12D12
10.17
Details
Meanwell NSD15-12D12 Specifications
| ORDER NO. | NSD15-12D5 | NSD15-12D12 | NSD15-12D15 | ||||
| OUTPUT | DC VOLTAGE | 5V | -5V | 12V | -12V | 15V | -15V |
| RATED CURRENT | 1.5A | 1.5A | 0.62A | 0.62A | 0.5A | 0.5A | |
| CURRENT RANGE | 0.07-1.5A | 0.07-1.5A | 0.03-0.62A | 0.03-0.62A | 0.02-0.5A | 0.02-0.5A | |
| RATED POWER | 15W | 14.88W | 15W | ||||
| CAPACITIVE LOAD (max.) | ±1000uF | ||||||
| RIPPLE & NOISE (max.) | 100mVp-p (25% ~ 100% load) | ||||||
| VOLTAGE TOLERANCE | ±3.0% | ±2.5% | ±2.5% | ||||
| LINE REGULATION | ±1.0% at 10% ~ 100% load | ||||||
| LOAD REGULATION | ±2.0% | ±1.0% | ±1.0% | ||||
| TRIM OUTPUT (Typ.) | ±5.0% | ±5.0% | ±3.0% | ||||
| SETUP TIME | 100ms/RATED DC INPUT at full Load | ||||||
| INPUT | RATED DC INPUT | 12VDC | |||||
| VOLTAGE RANGE | 9.4 ~ 36VDC | ||||||
| EFFICIENCY (Typ.) | 76.00% | 80.00% | 80.00% | ||||
| DC CURRENT | 1.8A/12VDC | ||||||
| SHUTDOWN IDLE CURRENT | 20mA | ||||||
| PROTECTION | OVERLOAD | Above 105% rated output power | |||||
| Protection type : Over power limiting, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE (CLAMP) | 7.25-9V | -7.25--9V | 3.8-18V | -13.8--18V | 17.3-22.5V | -17.3--22.5V | |
| SHORT CIRCUIT | Recovers automatically after fault condition is removed | ||||||
| FUNCTION OPERATING | ON/OFF CONTROL | Logic "1" or open circuit : ON Logic "0" or short to PIN2 : OFF | |||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +70℃ | |||||
| WORKING HUMIDITY | 0% ~ 95% RH max. | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 0 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0-50℃) | ||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1 | |||||
| ISOLATION VOLTAGE | I/P-O/P:1.5KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, light industry level, EAC TP TC 020 | ||||||
| OTHERS | MTBF | 9469.6K hrs min. Telcordia SR-332 (Bellcore) ; 1673.2K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 50.8*38.1*9.82mm (2"*1.5"*0.387") (L*W*H) | ||||||
| PACKING | 0.03Kg; 180pcs/6.4Kg/0.94CUFT | ||||||
Meanwell NSD15-12D12 Features
l Lost cost
l Wide 4:1 DC input range
l 1500VDC Il/O isolation
l Built-in EMI filter
l Cooling by free air convection
l Output voltage trimming function
l Built-in remote ON-OFF control
l 100% full load burn-in test
l High reliability
l 2 years warranty
l Protections: Short circuit/Overload/Over voltage
Meanwell NSD15-12D12 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|---|
| Meanwell DC/DC Module Type | NSD15-12D12 |
