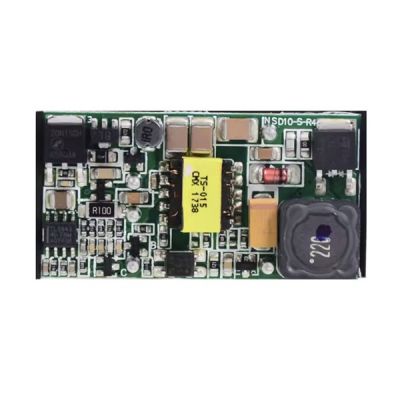

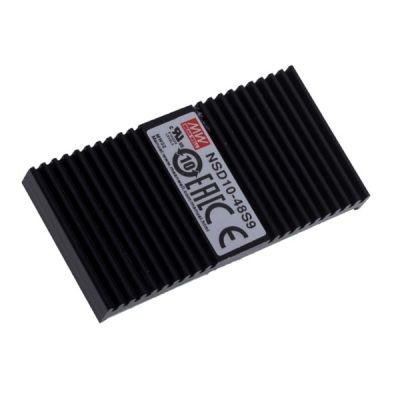

NSD10-48S5
16.59
Details
Meanwell NSD10-48S5 Specifications
| ORDER NO. | NSD10-48S3 | NSD10-48S5 | NSD10-48S9 | NSD10-48S12 | NSD10-48S15 | |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 9V | 12V | 15V |
| RATED CURRENT | 2.5A | 2A | 1.1A | 0.83A | 0.67A | |
| CURRENT RANGE | 0.12-2.5A | 0.1-2A | 0.05-1.1A | 0.04-0.83A | 0.03-0.67A | |
| RATED POWER | 8.25W | 10W | 9.9W | 9.96W | 10.05W | |
| CAPACITIVE LOAD (max.) | 3300uF | |||||
| RIPPLE & NOISE (max.) | 75mVp-p | |||||
| VOLTAGE TOLERANCE | ±2.0% max. | |||||
| LINE REGULATION | ±1.0% | |||||
| LOAD REGULATION | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| SETUP TIME | 100ms/RATED DC INPUT at full Load | |||||
| INPUT | RATED DC INPUT | 48VDC | ||||
| VOLTAGE RANGE | 22 ~ 72VDC | |||||
| EFFICIENCY (Typ.) | 74.00% | 77.00% | 78.00% | 79.00% | 80.00% | |
| DC CURRENT | 0.4A/48VDC | |||||
| SHUTDOWN IDLE CURRENT | 20mA/12VDC | |||||
| PROTECTION | OVERLOAD (Typ.) | Above 105% rated output power | ||||
| Protection type : Over power limiting, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE (CLAMP) | 3.8 ~ 4.95V | 5.75 ~ 7.5V | 10.4 ~ 13.5V | 13.8 ~ 18V | 17.3 ~ 22.5V | |
| SHORT CIRCUIT | Recovers automatically after fault condition is removed | |||||
| FUNCTION OPERATING | ON/OFF CONTROL | Logic "1" OPEN: ON logic "0" GND: OFF | ||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +70℃ | ||||
| WORKING HUMIDITY | 0% ~ 95% RH max. | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 0 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~60℃) | |||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1 | ||||
| ISOLATION VOLTAGE | I/P-O/P:1KVDC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | |||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, light industry level, EAC TP TC 020 | |||||
| OTHERS | MTBF | 12058.3K hrs min. Telcordia SR-332 (Bellcore) ; 2138.0K hrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 50.8*25.4*10mm (2"*1"*0.394") (L*W*H) | |||||
| PACKING | 0.02Kg; 300pcs/7Kg/0.94CUFT | |||||
Meanwell NSD10-48S5 Features
l 100% full load burn-in test
l Cooling by free air convection
l Low cost
l 2 years warranty
l High reliability
l Built-in EMI filter
l Wide 4:1 DC input range
l 1000VDC l/O isolation
l Built-in remote ON-OFF control
l Protections: Short circuit/Overload/Over voltage
Meanwell NSD10-48S5 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|---|
| Meanwell DC/DC Module Type | NSD10-48S5 |
