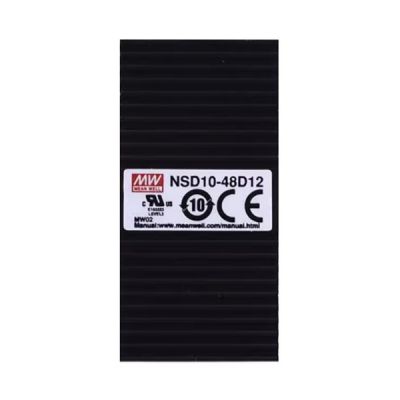

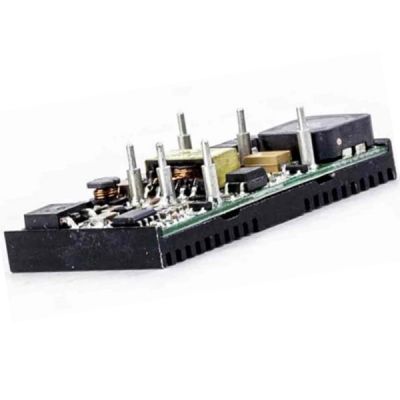

NSD10-12D5
7.85
Details

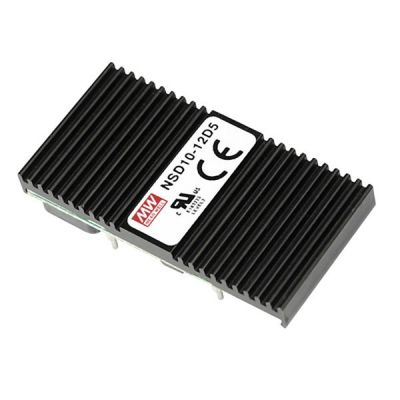

Meanwell NSD10-12D5 Specifications
| ORDER NO. | NSD10-12D5 | NSD10-12D12 | NSD10-12D15 | ||||
| OUTPUT | DC VOLTAGE | 5V | -5V | 12V | -12V | 15V | -15V |
| RATED CURRENT | 1A | 1A | 0.42A | 0.42A | 0.33A | 0.33A | |
| CURRENT RANGE | 0.05-1A | 0.05-1A | 0.02-0.42A | 0.02-0.42A | 0.016-0.33A | 0.016-0.33A | |
| RATED POWER | 10W | 10.08W | 9.9W | ||||
| CAPACITIVE LOAD (max.) | ±1000uF | ||||||
| RIPPLE & NOISE (max.) | 75mVp-p (10% ~ 100% load) | ||||||
| VOLTAGE TOLERANCE | ±4.0% | ±2.5% | ±2.5% | ||||
| LINE REGULATION | ±1.0% | ||||||
| LOAD REGULATION | ±3.0% | ±2.0% | ±1.0% | ||||
| SETUP TIME | 100ms/RATED DC INPUT at full Load | ||||||
| INPUT | RATED DC INPUT | 12VDC | |||||
| VOLTAGE RANGE | 9.8 ~ 36VDC | ||||||
| EFFICIENCY (Typ.) | 76.00% | 77.00% | 77.00% | ||||
| DC CURRENT | 1.4A/12VDC | ||||||
| SHUTDOWN IDLE CURRENT | 20mA/12VDC | ||||||
| PROTECTION | OVERLOAD (Typ.) | Above 105% rated output power | |||||
| Protection type : Over power limiting, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE (CLAMP) | 5.75-7.5V | -5.75-7.5V | 13.8-18V | -13.8-18V | 17.3-22.5V | -17.3-22.5V | |
| SHORT CIRCUIT | Recovers automatically after fault condition is removed | ||||||
| FUNCTION OPERATING | ON/OFF CONTROL | Logic "1" OPEN: ON logic "0" GND: OFF | |||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +70℃ | |||||
| WORKING HUMIDITY | 0% ~ 95% RH max. | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 0 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~60℃) | ||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1 | |||||
| ISOLATION VOLTAGE | I/P-O/P:1KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, light industry level, EAC TP TC 020 | ||||||
| OTHERS | MTBF | 12288.5K hrs min. Telcordia SR-332 (Bellcore) ; 1878.5K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 50.8*25.4*10mm (2"*1"*0.394") (L*W*H) | ||||||
| PACKING | 0.02Kg; 300pcs/7Kg/0.94CUFT | ||||||
Meanwell NSD10-12D5 Features
l Wide 4:1 DC input range
l 1000VDC I/O isolation
l Built-in EMI filter
l Cooling by free air convection
l Built-in remote ON-OFF control
l 100% full load burn-in test
l Lost cost
l High reliability
l 2 years warranty
l Protections: Short circuit/Overload/Over voltage
Meanwell NSD10-12D5 Mechanical Diagram
