NPP-450
80.14
Details

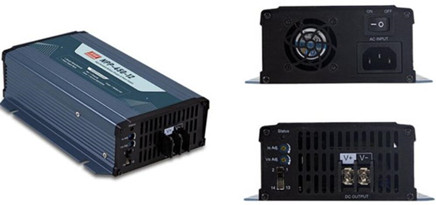

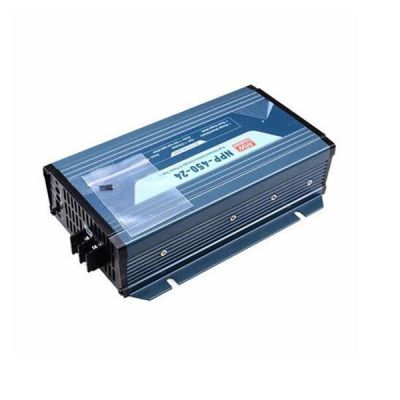

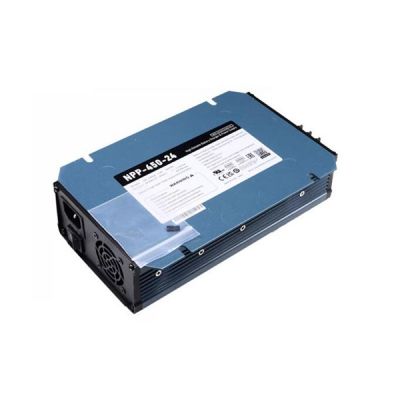

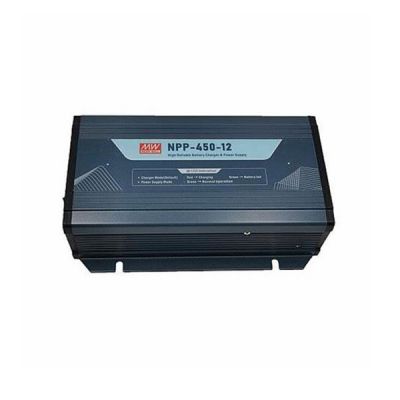

Meanwell NPP-450 Series is a miniaturized dual-purpose charger and power supply. In addition to being used as a three-stage charger for lead-acid batteries, it can also be used as a constant voltage output power supply to drive general load. The operating mode can be quickly switched by plugging or unplugging a connect or on the front panel (10.5~21V, 21～42V，42~80V，54~100V). At the same time, NPP-450 stands out with ultra-wide voltage output, adjustable voltage, adjustable charging current (50~ 100%), built-in intelligent fan, -30~+70℃ wide operating temperature, and built-in remote ON/OFF control. What’s more, the product complies with IEC/EN/UL62368-1 and household EN60335-1/-2-29. Considering its long lifetime, high efficiency, and excellent reliability, Meanwell NPP-450 Series is truly an intelligent, safe, and universal dual-purpose charger and power supply with outstanding cost performance.
Meanwell NPP-450 Series Encoding
| NPP | Series Name |
| 450 | Rated Wattage |
| 24 | Output Voltage (12V/24V/48V/72V) |
Meanwell NPP-450 Series Model Specifications
| Model | NPP-450-12 | NPP-450-24 | NPP-450-48 | NPP-450-72 | |
| OUTPUT | BOOST CHARGE VOLTAGE (Vboost) (default) DC VOLTAGE | 14.4V | 28.8V | 57.6V | 72V |
| FLOAT CHARGE VOLTAGE(Vfloat)(default) | 13.8V | 27.6V | 55.2V | 69V | |
| VOLTAGE ADJUSTABLE RANGE | 10.5-21V | 21-42V | 42-80V | 54-100V | |
| By built-in potentionmeter | |||||
| MAX. OUTPUT CURRENT(CC) | 25A | 13.5A | 6.8A | 5.5A | |
| CURRENT ADJUSTABLE RANGE | 12.5-25A | 6.75-13.5A | 3.4-6.8A | 2.75-5.5A | |
| By built-in potentionmeter | |||||
| RATED POWER | 420W | 453.6W | 457W | 462W | |
| MAX. POWER | 420W | 453.6W | 456.96W | 462W | |
| RIPPLE & NOISE(max.) | 180mVp-p | 300mVp-p | 480mVp-p | 600mVp-p | |
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1800ms, 60ms/230VAC at full load | ||||
| HOLD UP TIME (Typ.) | 16ms/230VAC at 75% load 10ms/230VAC at full load | ||||
| RECOMMENDED BATTERY CAPACITY (AMP HOURS) | 90-300AH | 45-155AH | 24-80AH | 19-64AH | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| POWER FACTOR | PF>0.98/115VAC, PF>0.95/230VAC at full load | ||||
| EFFICIENCY (Typ.) | 92.00% | 93.00% | 93.00% | 93.00% | |
| AC CURRENT (Typ.) | 4.5A/115VAC 2.2A/230VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 50A at 230VAC | ||||
| PROTECTION | SHORT CIRCUIT | Protection type : Constant current limiting, charger will shutdown after 5 sec, re-power on to recover | |||
| OVER VOLTAGE | 21.5-26V | 43-52V | 82-100V | 102-120V | |
| Protection type : Shut down and latch off o/p voltage, re-power on to recover | |||||
| OVER TEMPERATURE | Shut down O/P voltage, recovers automatically after temperature goes down | ||||
| FUNCTION | CHARGING STAGE | 3 stage only | |||
| CHARGER OK SIGNAL | The TTL signal out, Charger OK = H(4.5 ~ 5.5V) ; Charger failure or protection status =L( -0.5 ~ +0.5V) | ||||
| BATTERY FULL SIGNAL | The TTL signal out, Battery full = H(4.5 ~ 5.5V ); Charging = L(-0.5 ~ +0.5V) | ||||
| DC OK | The TTL signal out, DC OK = H(4.5 ~ 5.5V) ; Power supply failure or protection = L(-0.5 ~ +0.5V) | ||||
| REMOTE CONTROL | Open : Charger stop charging Short : Charger normal work | ||||
| FAN SPEED CONTROL | Depends on internal temperature | ||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||
| SAFETY & EMC | SAFETY STANDARDS | CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Parameter | Standard | Test Level | ||
| Conducted | BS EN/EN55032 (CISPR32),BS EN/EN55014-1 | Class B | |||
| Radiated | BS EN/EN55032 (CISPR32),BS EN/EN55014-1 | Class B | |||
| Harmonic Current | BS EN/EN61000-3-2 | Class A | |||
| Voltage Flicker | BS EN/EN61000-3-3 | ----- | |||
| EMC IMMUNITY | BS EN/EN61000-6-2 | ||||
| Parameter | Standard | Test Level | |||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | |||
| Radiated | BS EN/EN61000-4-3 | Level 2, 3V/m | |||
| EFT / Burst | BS EN/EN61000-4-4 | Level 2, 1KV | |||
| Surge | BS EN/EN61000-4-5 | Level 2, 1KV/Line-Line,Level 3, 2KV/Line-Earth | |||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3Vrms | |||
| Magnetic Field | BS EN/EN61000-4-8 | Level 1, 1A/m | |||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
|||
| Others | MTBF | 1056.9K hrs min. Telcordia SR-332 (Bellcore) ; 118.5K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 205*135*55mm (L*W*H) | ||||
| PACKING | 1.02Kg; 8pcs/ 10Kg / 1.71CUFT | ||||
Meanwell NPP-450 Series Applications
l Multi-function single unit battery charger or power supplyoperation modes selectable
l Output voltage and current adjustable via potentiometer
l 3-stage charging curve for charging mode
l -30~+70℃ wide operating temperature
l Multiple protections: Short circuit/Over load/Over voltage/Over temperature
l Thermal controlled DC fan for noise reduction
l Remote ON-OFF control
l Comply with 62368-1 +60335-1/-2-29 dual certification
l Suitable for lead-acid (Pb) batteries
l Carry handle accessory available (Order NO.:DS-Carry handle, sold separately)
l 3 years warranty
Meanwell NPP-450 Series Applications
l Radio system backup solution
l Electric scooter charger
l Camping car · Buses · Heavy duty truck. Specialty vehicles
l Surveillance system
l Industrial automation machinery
l Industrial control system
l Mechanical and electrical equipment

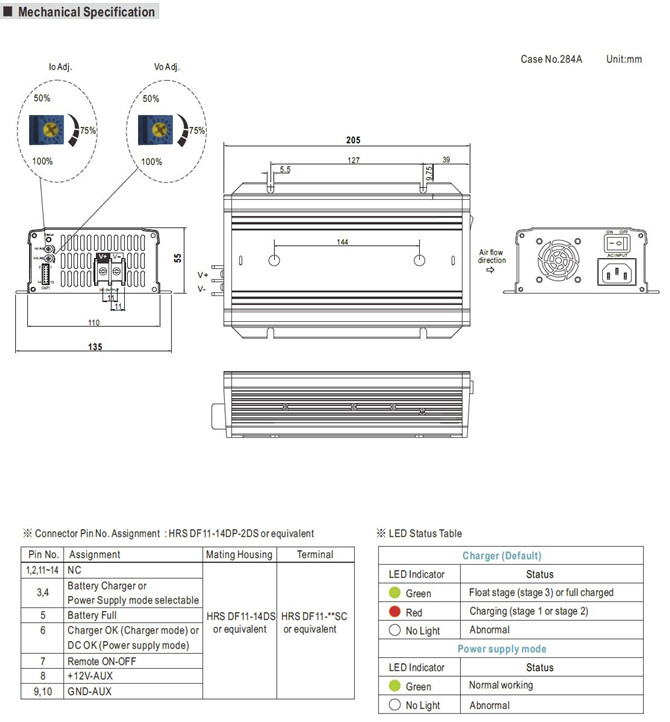

Meanwell NPP-450 Series Mechanical Diagram
