NPP-1200
166.42

NPP-1200

As low as $166.42

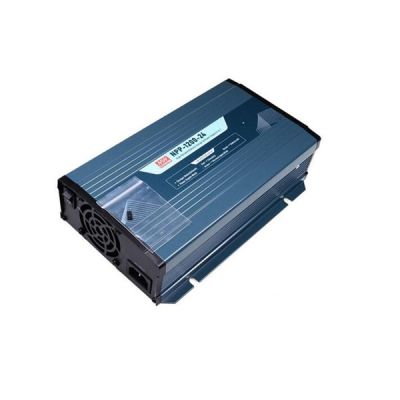

Meanwell 1200W High Reliable Ultra Wide Output Range Battery Charger & Power Supply 2-in-1

- +
Availability:In stock
SKU Meanwell NPP-1200
Brand Meanwell
Details

Meanwell NPP-1200 Series is a miniaturized dual-purpose charger and power supply. Apart from being used as a three-stage charger for lead-acid batteries, the item could also work as a constant voltage output power supply to drive general load. The operating mode can be quickly switched by plugging or unplugging a connector on the front panel. At the same time, the product highlights ultra-wide voltage output, adjustable voltage via VR on the panel (10.5~21V, 21~42V, 42~80V), adjustable charging current (50~ 100%), built-in intelligent fan, -30~+70℃ wide operating temperature, and built-in remote ON/OFF control. What’s more, NPP-1200 complies to IEC/EN/UL62368-1 and household EN60335-1/-2-29 dual safety, and equipped with multiple built-in protections such as Short circuit, Over load, Over voltage and Over temperature. Considering its longevity, high efficiency, and excellent reliability, Meanwell NPP-1200 Series is truly an intelligent, safe, and reliable universal dual-purpose charger and power supply with outstanding cost performance.

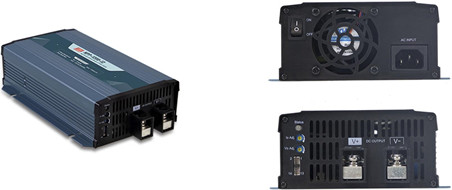

Meanwell NPP-1200 Price and Specs 1200W Battery Charger Power Supply NPP-1200-12 NPP-1200-24 NPP-1200-48 AC/DC YCICT

Meanwell NPP-1200 Series Encoding

NPP Series Name
1200 Rated Wattage
24 Output Voltage (12V/24V/48V)

Meanwell NPP-1200 Series Model Specifications

Model NPP-1200-12 NPP-1200-24 NPP-1200-48
OUTPUT BOOST CHARGE VOLTAGE(Vboost)(default) 14.4V 28.8V 57.6V
FLOAT CHARGE VOLTAGE(Vfloat)(default) 13.8V 27.6V 55.2V
VOLTAGE ADJUSTABLE RANGE 10.5-21V 21-42V 42-80V
By built-in potentionmeter
MAX. OUTPUT CURRENT(CC) 70A 36A 18A
CURRENT ADJUSTABLE RANGE 35-70A 18-36A 9-18A
By built-in potentionmeter
RATED POWER 722.4W 756W 759.36W
MAX. POWER 1176W 1209.6W 1209.6W
RIPPLE & NOISE(max.) 180mVp-p 300mVp-p 480mVp-p
VOLTAGE TOLERANCE ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±1.0% ±0.5%
SETUP, RISE TIME 1800ms, 60ms/230VAC at full load
HOLD UP TIME (Typ.) 16ms/230VAC at 75% load 10ms/230VAC at full load
RECOMMENDED BATTERY CAPACITY (AMP HOURS) 240-800AH 120-420AH 60-210AH
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.98/115VAC, PF>0.95/230VAC at full load
EFFICIENCY (Typ.) 92.00% 93.00% 94.00%
AC CURRENT (Typ.) 12A/115VAC 6.5A/230VAC
INRUSH CURRENT (Typ.) COLD START 50A at 230VAC
PROTECTION SHORT CIRCUIT Protection type : Constant current limiting, charger will shutdown after 5 sec, re-power on to recover
OVER VOLTAGE 21.5-26V 43-52V 82-100V
Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down O/P voltage, recovers automatically after temperature goes down
FUNCTION CHARGING STAGE 3 stage only
CHARGER OK SIGNAL The TTL signal out, Charger OK = H(4.5 ~ 5.5V) ; Charger failure or protection status =L( -0.5 ~ +0.5V)
BATTERY FULL SIGNAL The TTL signal out, Battery full = H(4.5 ~ 5.5V ); Charging = L(-0.5 ~ +0.5V)
REMOTE CONTROL Open : Charger stop charging Short : Charger normal work
FAN SPEED CONTROL Depends on internal temperature

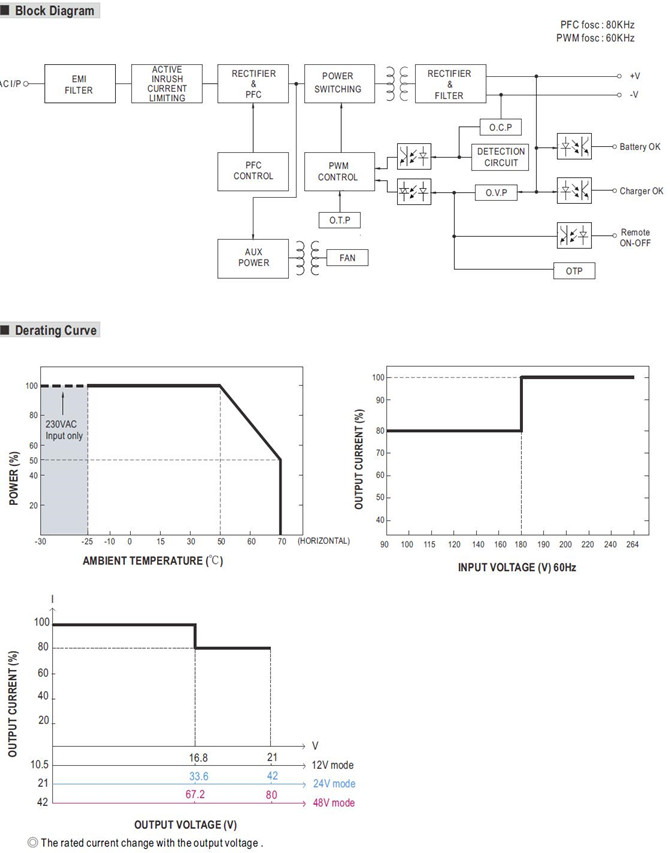

ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.05%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level / Note
Conducted BS EN/EN55032 (CISPR32),BS EN/EN55014-1 Class B
Radiated BS EN/EN55032 (CISPR32),BS EN/EN55014-1 Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3 -------
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3, 8KV air ; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2, 3V/m
EFT / Burst BS EN/EN61000-4-4 Level 2, 1KV
Surge BS EN/EN61000-4-5 Level 2, 1KV/Line-Line,Level 3, 2KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 2, 3Vrms
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods
Others MTBF 625.1K hrs min. Telcordia SR-332 (Bellcore) ; 63.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 250*158*67mm (L*W*H)
PACKING 1.93Kg; 4pcs/ 10Kg / 1.72CUFT

Meanwell NPP-1200 Series Features

l  Multi-function single unit battery charger or power supply operation modes selectable

l  Output voltage and current adjustable via potentiometer

l  3-stage charging curve for charging mode

l  -30~+70℃ wide operating temperature

l  Multiple protections: Short circuit/Over load/Over voltage/Over temperature

l  Thermal controlled DC fan for noise reduction

l  Remote ON-OFF control

l  Comply with 62368-1 +60335-1/-2-29 dual certification

l  Suitable for lead-acid (Pb) batteries

l  Carry handle accessory available (Order NO.:DS-Carry handle, sold seperately

l  3 years warranty

Meanwell NPP-1200 Price and specs 1200W Battery Charger and Power Supply NPP-1200-12 NPP-1200-24 NPP-1200-48 YCICT

Meanwell NPP-1200 Series Applications

l  Radio system backup solution

l  Electric scooter charger

l  Camping car, Buses, Heavy duty truck, Specialty vehicles

l  Surveillance system

l  Industrial automation machinery

l  Industrial control system

l  Mechanical and electrical equipment

Meanwell NPP-1200 Price and specs Battery Charger and Power Supply NPP-1200-12 NPP-1200-24 NPP-1200-48  2 in 1 YCICT

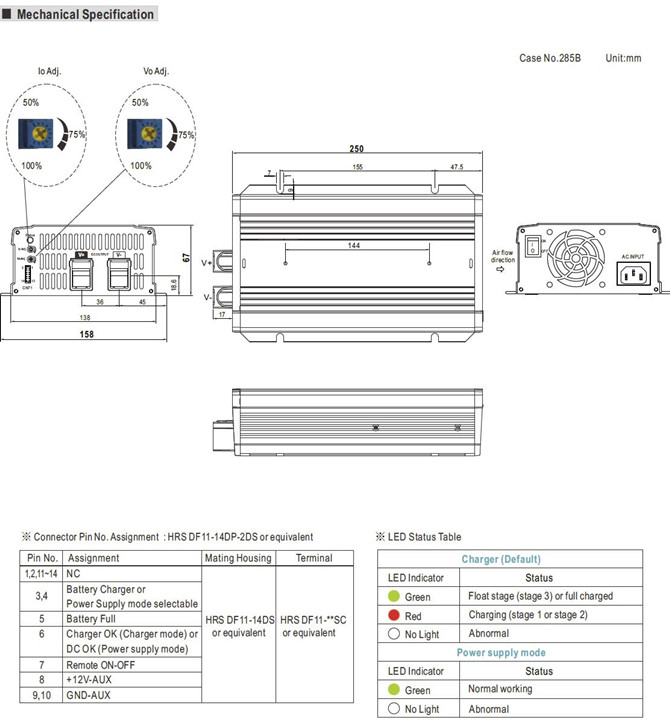

Meanwell NPP-1200 Series Mechanical Diagram

Meanwell NPP-1200 Price and Datasheet Battery Charger and Power Supply NPP-1200-12 NPP-1200-24 NPP-1200-48  2 in 1 YCICT

Meanwell NPP-1200 Price and Datasheet 1200W Battery Charger and Power Supply NPP-1200-12 NPP-1200-24 NPP-1200-48 YCICT
