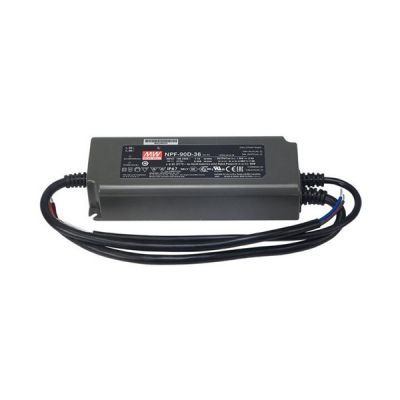

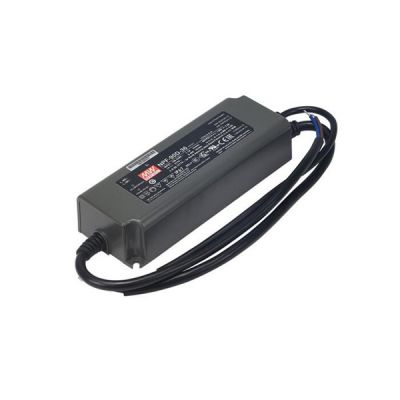

Meanwell NPF-90D Series is 90W AC/DC LED driver highlighting the constant current mode output. At the same time, the entire series could operate from 90~305VAC and offer the models with different rated voltage ranging between 12V and 54V. Since the high efficiency reaches up to 90% with the fanless design, NPF-90D is able to work for 40℃~+ 85℃ case temperature under free air convection. In addition, the product is rated with IP67 ingress protection level and equipped with the 3 in 1 dimming function. Considering its long lifetime, high reliability, and excellent quality, Meanwell NPF-90D Series serves as an ideal solution to provide the design flexibility for LED lighting system to work at dry, damp or wet locations.
Meanwell NPF-90D Series Encoding
| NPF | Series Name |
| 90 | Rated Wattage |
| D | Built-in 3 in 1 dimming function |
| 20 | Output Voltage (12/15/20/24/30/36/42/48/54V) |
Meanwell NPF-90D Series Model Specifications
| Model | NPF-90D-12□ | NPF-90D-15□ | NPF-90D-20□ | NPF-90D-24□ | NPF-90D-30□ | NPF-90D-36□ | NPF-90D-42□ | NPF-90D-48□ | NPF-90D-54□ | |
| OUTPUT | RATED CURRENT | 7.5A | 6A | 4.5A | 3.75A | 3A | 2.5A | 2.15A | 1.88A | 1.67A |
| RATED POWER | 90W | 90W | 90W | 90W | 90W | 90W | 90.3W | 90.24W | 90.18W | |
| CONSTANT CURRENT REGION | 7.2-12V | 9-15V | 12-20V | 14.4-24V | 18-30V | 21.6-36V | 25.2-42V | 28.8-48V | 32.4-54V | |
| CURRENT RIPPLE | 5.0% max. @rated current | |||||||||
| CURRENT TOLERANCE | ±5.0% | |||||||||
| SET UP TIME | 500ms/115VAC, 230VAC | |||||||||
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| POWER FACTOR | PF>=0.98/115VAC, PF>=0.96/230VAC, PF>=0.94/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | |||||||||
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=60%/115VC, 230VAC; at load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) | |||||||||
| EFFICIENCY (Typ.) | 88.00% | 89.00% | 90.00% | 90.00% | 89.00% | 90.00% | 90.00% | 90.00% | 90.00% | |
| AC CURRENT | 0.95A / 115VAC 0.5A / 230VAC 0.4A / 277VAC | |||||||||
| INRUSH CURRENT(Typ.) | COLD START 60A(twidth=550μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |||||||||
| STANDBY POWER CONSUMPTION | <0.5W | |||||||||
| LEAKAGE CURRENT | <0.25mA / 277VAC | |||||||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | ||||||||
| Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 15-17V | 17.5-21V | 23-27V | 28-34V | 34-40V | 41-46V | 46-54V | 54-60V | 59-66V | |
| Shut down o/p voltage, re-power on to recover | ||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||||||
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||||||||
| MAX. CASE TEMP. | Tcase=+85℃ | |||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent,EAC TP TC 004, GB19510.1,GB19510.14, IP67 approved ;Design refer to BS EN/EN60335-1 | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3; GB17743 and GB17625.1,EAC TP TC 020 |
|||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity Line-Line 2KV);EAC TP TC 020 | |||||||||
| Others | MTBF | 2749.1K hrs min. Telcordia SR-332 (Bellcore) ; 231.2K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 171*63*37.5mm (L*W*H) | |||||||||
| PACKING | 0.77Kg; 18pcs/14.9Kg/0.82CUFT | |||||||||

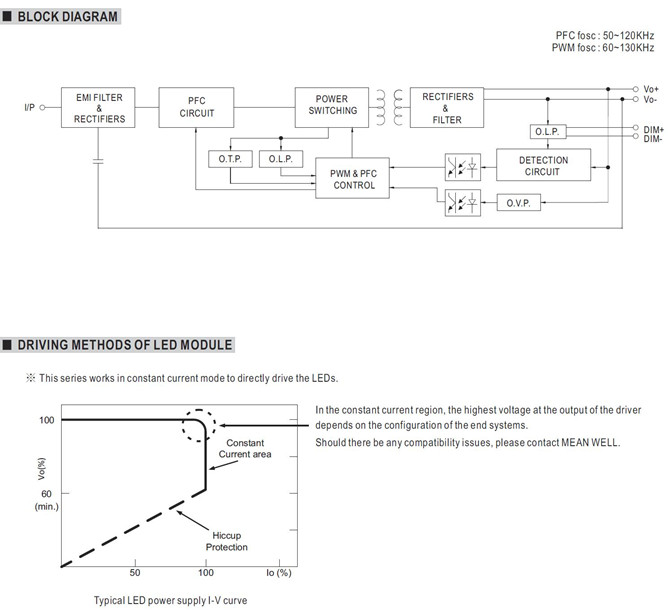

Meanwell NPF-90D Series Features
l Plastic housing with classⅡdesign
l Built-in active PFC function
l Class 2 power unit (except NPF-90D-12/15)
l Standby power consumption <0.5W
l IP67 rating for indoor or outdoor installations
l Function: 3 in 1 dimming (dim-to-off)
l Typical lifetime >50000 hours
l 5 years warranty
Meanwell NPF-90D Series Applications
l Moving sign
l LED downlight
l LED panel lighting
l LED tunnel lighting
l LED decorative lighting

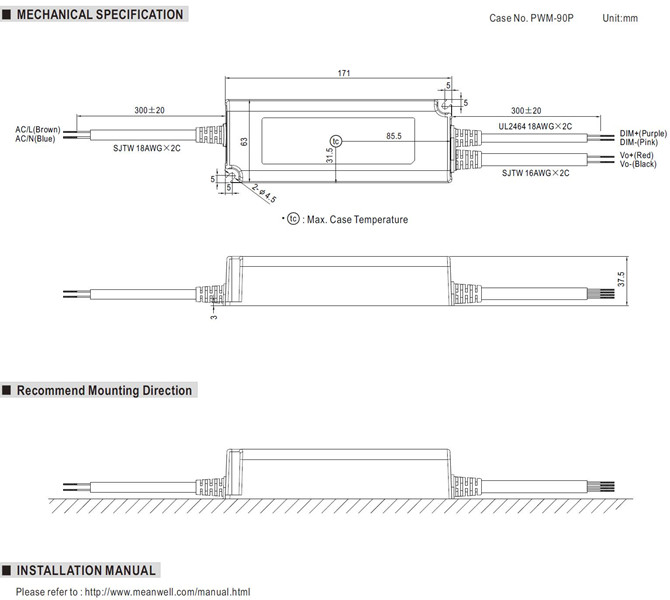

Meanwell NPF-90D Series Mechanical Diagram
