NPF-90D-36
30.63
Details

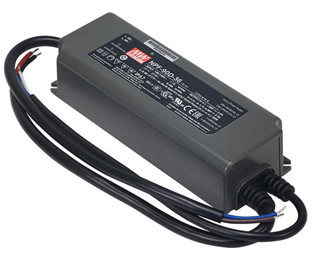

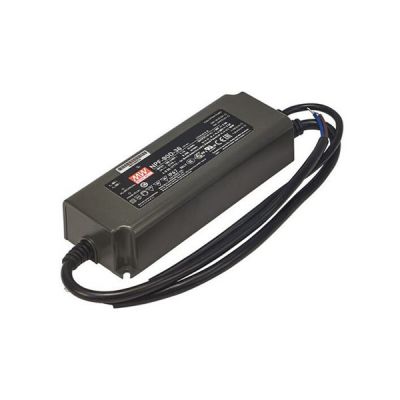

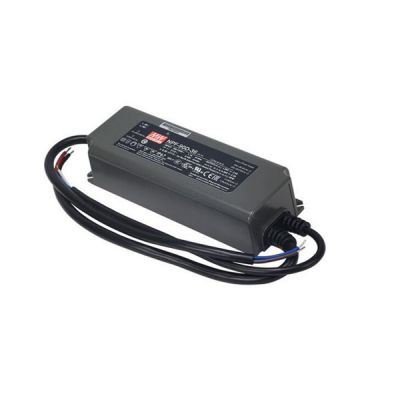

Meanwell NPF-90D-36 is 90W AC/DC LED driver with 2.5A90W21.6-36V±5.0%500ms/115VAC, 230VAC. The item outstands the constant current mode output. It is able to work from 90~305VAC with rated voltage 36V. As the efficiency reaches high up to 90% with no fan design, NPF-90D-36 is able to operate for -40℃~+ 85℃ case temperature under free air convection. Additionally, the unit is rated with IP67 ingress protection level and 3 in 1 dimming function. Because of its long lifetime, high reliability, and excellent quality, Meanwell NPF-90D-36 serves as an ideal solution to provide the design flexibility for LED lighting system to work at dry, damp or wet locations.
Meanwell NPF-90D-36 Encoding
| NPF | Series Name |
| 90 | Rated Wattage |
| D | Built-in 3 in 1 dimming function |
| 36 | Output Voltage (12/15/20/24/30/36/42/48/54V) |
Meanwell NPF-90D-36 Specifications
| Model | NPF-90D-36□ | |
| OUTPUT | RATED CURRENT | 2.5A |
| RATED POWER | 90W | |
| CONSTANT CURRENT REGION | 21.6-36V | |
| CURRENT RIPPLE | 5.0% max. @rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 500ms/115VAC, 230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.98/115VAC, PF>=0.96/230VAC, PF>=0.94/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | |
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=60%/115VC, 230VAC; at load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT | 0.95A / 115VAC 0.5A / 230VAC 0.4A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 60A(twidth=550μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |
| STANDBY POWER CONSUMPTION | <0.5W | |
| LEAKAGE CURRENT | <0.25mA / 277VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 41-46V | |
| Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| MAX. CASE TEMP. | Tcase=+85℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent,EAC TP TC 004, GB19510.1,GB19510.14, IP67 approved ;Design refer to BS EN/EN60335-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3; GB17743 and GB17625.1,EAC TP TC 020 |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity Line-Line 2KV);EAC TP TC 020 | |
| Others | MTBF | 2749.1K hrs min. Telcordia SR-332 (Bellcore) ; 231.2K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 171*63*37.5mm (L*W*H) | |
| PACKING | 0.77Kg; 18pcs/14.9Kg/0.82CUFT | |
Meanwell NPF-90D-36 Features
l Plastic housing with classⅡdesign
l Typical lifetime >50000 hours
l 5 years warranty
l Built-in active PFC function
l Class 2 power unit (except NPF-90D-12/15)
l Standby power consumption <0.5W
l IP67 rating for indoor or outdoor installations
l Function: 3 in 1 dimming (dim-to-off)
Meanwell NPF-90D-36 Applications
l Moving sign
l LED downlight
l LED panel lighting
l LED tunnel lighting
l LED decorative lighting
Meanwell NPF-90D-36 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
