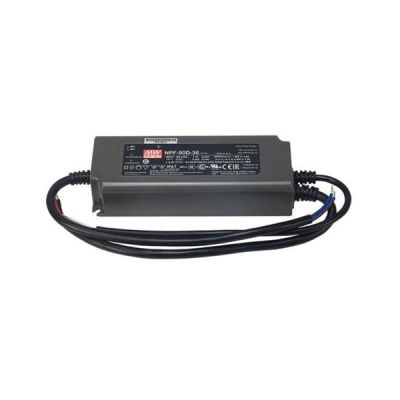

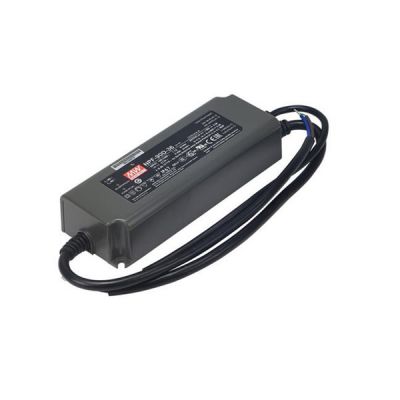

NPF-90
25.04
Details
Meanwell NPF-90 Series is 90W AC/DC LED driver highlighting the dual modes constant voltage and constant current output. The entire series adopts 90~305Vac full-range AC input with built-in PFC function. The housing features 94V-0 flame-retardant plastic box, the interior is filled with thermally conductive silicone for enhanced heat dissipation, resistant to 5G vibration, and the model meets IP67 protection rating, which can be used in harsh environments with high dust and extreme humidity. In addition, NPF-90 has a power efficiency of up to 90% and a no-load loss of less than 0.15 watts, which can meet the energy-saving needs of the new generation of LED lighting. Class II design (no grounding wire) and the input of double-layer insulation anti-weathering SJTW wire can make users convenient and flexible installation in various types of lighting systems, Moreover, NPF-90 can work in -40°C ~+70 °C temperature range, in line with the relevant lighting safety specifications. The output voltage divides into 12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, 54V. Considering its longevity, high efficiency, and excellent quality, Meanwell NPF-90 Series serves as an ideal solution to work for a variety of applications at dry, damp or wet locations.
Meanwell NPF-90 Series Encoding
| NPF | Series Name |
| 90 | Rated Wattage |
| 24 | Rated output voltage (12V/15V/20/24V/30V/36V/42V/48V/54V) |
Meanwell NPF-90 Series Model Specifications
| Model | NPF-90-12 | NPF-90-15 | NPF-90-20 | NPF-90-24 | NPF-90-30 | NPF-90-36 | NPF-90-42 | NPF-90-48 | NPF-90-54 | |
| OUTPUT | DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION | 7.2-12V | 9-15V | 12-20V | 14.4-24V | 18-30V | 21.6-36V | 25.2-42V | 28.8-48V | 32.4-54V | |
| RATED CURRENT | 7.5A | 6A | 4.5A | 3.75A | 3A | 2.5A | 2.15A | 1.88A | 1.67A | |
| RATED POWER | 90W | 90W | 90W | 90W | 90W | 90W | 90.3W | 90.24W | 90.18W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 250mVp-p | 250mVp-p | 350mVp-p | |
| VOLTAGE TOL ERANCE | ±4.0% | ±4.0% | ±4.0% | ±3.0% | ±3.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.5% | ±1.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms, 80ms 115VAC / 230VAC | |||||||||
| HOLD UP TIME (Typ.) | 16ms/230VAC 16ms/115VAC | |||||||||
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| POWER FACTOR | PF>=0.98/115VAC, PF>=0.96/230VAC, PF>=0.94/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | |||||||||
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=60%/115VC,230VAC; at load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) | |||||||||
| EFFICIENCY (Typ.) | 89.00% | 89.50% | 90.50% | 91.00% | 89.50% | 90.50% | 90.50% | 90.50% | 90.50% | |
| AC CURRENT | 0.95A / 115VAC 0.5A / 230VAC 0.4A / 277VAC | |||||||||
| INRUSH CURRENT(Typ.) | COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |||||||||
| NO LOAD POWER CONSUMPTION | <0.15W | |||||||||
| LEAKAGE CURRENT | <0.25mA / 277VAC | |||||||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | ||||||||
| Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 15-17V | 17.5-21V | 23-27V | 28-34V | 34-40V | 41-46V | 46-54V | 54-60V | 59-66V | |
| Shut down and latch off o/p voltage, re-power on to recover | ||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||||||
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||||||||
| MAX. CASE TEMP. | Tcase=+85℃ | |||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, GB19510.1,GB19510.14, EAC TP TC 004,IP67 approved; Design refer to BS EN/EN60335-1 | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3; GB17743 and GB17625.1,EAC TP TC 020 | |||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV); EAC TP TC 020 | |||||||||
| Others | MTBF | 2749.4K hrs min. Telcordia SR-332 (Bellcore) ; 292.8Khrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 171*63*37.5mm (L*W*H) | |||||||||
| PACKING | 0.77Kg; 18pcs/14.9Kg/0.82CUFT | |||||||||
Meanwell NPF-90 Series Features
l Constant Voltage + Constant Current mode output
l Plastic housing with ClassⅡdesign
l Built-in active PFC function
l Class 2 power unit (except NPF-90-12/15)
l No load power consumption <0.1 5W
l IP67 rating for indoor or outdoor installations
l Typical lifetime> 50000 hours
l 5 years warranty
Meanwell NPF-90 Series Applications
l LED panel lighting
l LED downlight
l LED decorative lighting
l LED tunnel lighting
l Moving sign
Meanwell NPF-90 Series Mechanical Diagram

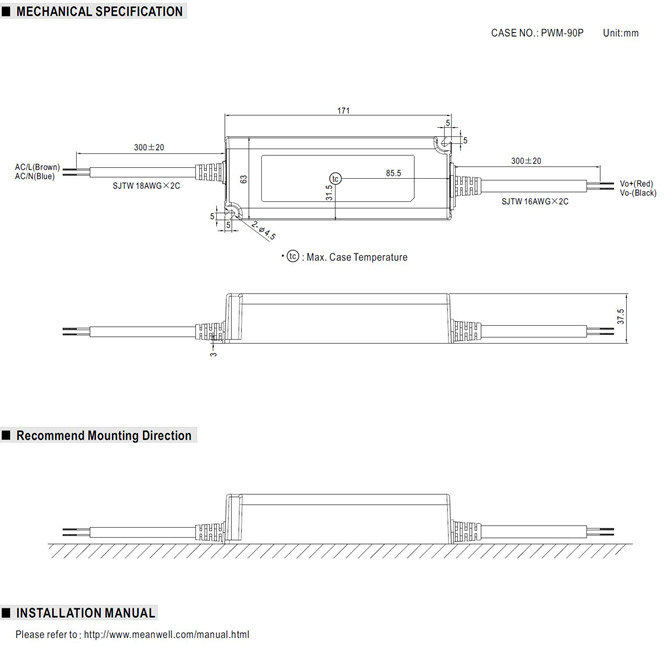

More Information
| Brand | Meanwell |
|---|
Custom Tab
