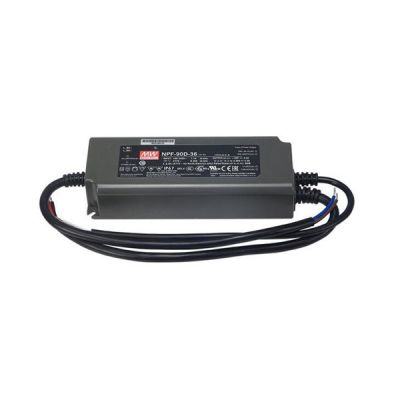

Meanwell NPF-60D Series is 60W AC/DC LED driver highlighting the constant current mode output with different rated voltage ranging between 12V and 54V. The entire series adopts 90~305Vac full-range AC input and built-in PFC function. The housing features 94V-0 flame-retardant plastic box, the interior filled with thermally conductive silicone for enhanced heat dissipation, and resistant to 5G vibration. At the same time, NPF-60D meets IP67 protection rating, which can be used in harsh environments with high dust and extreme humidity. Since the efficiency reaches high up to 90% under fanless design, the product is able to operate for -40℃~+ 85℃ case temperature through free air convection with 3 in 1 dimming function. Considering its longevity, high efficiency, and excellent quality, Meanwell NPF-60D Series serves as an ideal solution to provide the design flexibility for LED lighting system.
Meanwell NPF-60D Series Encoding
| NPF | Series Name |
| 60 | Rated Wattage |
| D | Built-in 3 in 1 dimming function |
| 24 | Output Voltage (12/15/20/24/30/36/42/48/54V) |
Meanwell NPF-60D Series Model Specifications
| Model | NPF-60D-12□ | NPF-60D-15□ | NPF-60D-20□ | NPF-60D-24□ | NPF-60D-30□ | NPF-60D-36□ | NPF-60D-42□ | NPF-60D-48□ | NPF-60D-54□ | |
| OUTPUT | RATED CURRENT | 5A | 4A | 3A | 2.5A | 2A | 1.67A | 1.43A | 1.25A | 1.12A |
| RATED POWER | 60W | 60W | 60W | 60W | 60W | 60.12W | 60.06W | 60W | 60.48W | |
| CONSTANT CURRENT REGION | 7.2-12V | 9-15V | 12-20V | 14.4-24V | 18-30V | 21.6-36V | 25.2-42V | 28.8-48V | 32.4-54V | |
| CURRENT RIPPLE | 5.0% max. @rated current | |||||||||
| CURRENT TOLERANCE | ±5.0% | |||||||||
| SET UP TIME | 500ms/115VAC, 230VAC | |||||||||
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC section) | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | |||||||||
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=60%/115VC, 230VAC; at load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) | |||||||||
| EFFICIENCY (Typ.) | 86.00% | 87.00% | 88.00% | 89.00% | 90.00% | 90.00% | 90.00% | 90.00% | 90.00% | |
| AC CURRENT | 0.8A / 115VAC 0.4A / 230VAC 0.32A / 277VAC | |||||||||
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=270μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC | |||||||||
| STANDBY POWER CONSUMPTION | <0.5W | |||||||||
| LEAKAGE CURRENT | <0.25mA / 277VAC | |||||||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | ||||||||
| Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 15-17V | 17.5-21V | 23-27V | 28-34V | 34-40V | 41-46V | 46-54V | 54-60V | 59-66V | |
| Shut down o/p voltage, re-power on to recover | ||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||||||
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||||||||
| MAX. CASE TEMP. | Tcase=+85℃ | |||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL8750(type”HL”), UL879(for 12V,24V only), CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, EAC TP TC 004,GB19510.1,GB19510.14, IP67 approved ; Design refer to BS EN/EN60335-1 | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3; GB17743 and GB17625.1,EAC TP TC 020 | |||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity Line-Line 2KV); EAC TP TC 020 | |||||||||
| Others | MTBF | 3082.1K hrs min. Telcordia SR-332 (Bellcore) ; 287.9K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 150*53*35mm (L*W*H) | |||||||||
| PACKING | 0.49Kg;30pcs/15.7Kg/1.0CUFT | |||||||||
Meanwell NPF-60D Series Features
l Plastic housing with classⅡdesign
l Built-in active PFC function
l Class 2 power unit
l Standby power consumption <0.5W
l IP67 rating for indoor or outdoor installations
l Function: 3 in 1 dimming (dim-to-off)
l Typical lifetime >50000hours
l 5 years warranty
Meanwell NPF-60D Series Applications
l LED panel lighting
l LED downlight
l LED decorative lighting
l LED tunnel lighting
l Moving sign
l Type "HL" for use in Class l, Division 2 hazardous (Classified) location

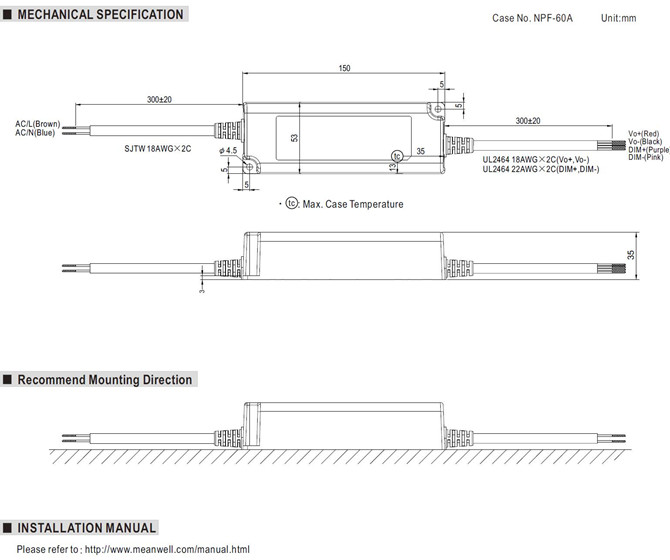

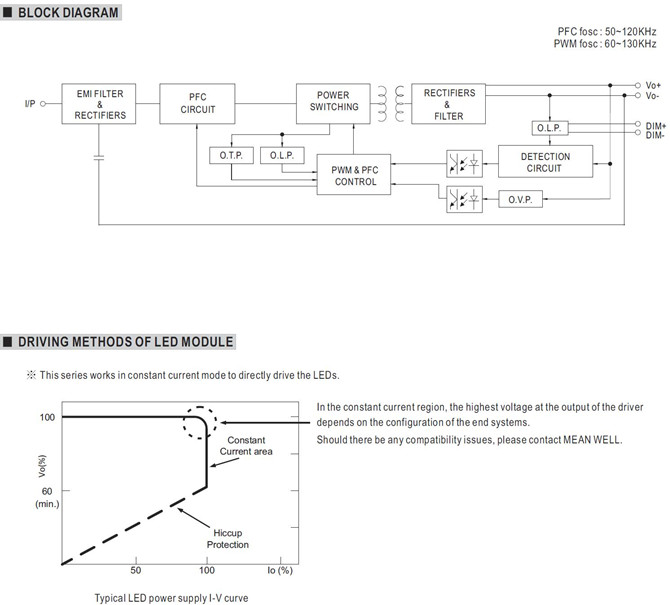

Meanwell NPF-60D Series Mechanical Diagram
